USER´S MANUAL LDEBG3TMB
EasyMount® Bracket for Stinger® 12" & 15"
SAFTY INFORMATION
1. Please read these instructions carefully before you start installation and assembly.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Be attentive when mounting the product and protect yourself from injury.
6. This product is intended for indoor use only. Using it outdoors could lead to product failure and personal injury.
7. Do not modify this equipment.
8. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate
plastic and paper/cardboard.
9. Plastic bags must be kept out of reach of children.
10. If you have any questions refering to this instruction or any warnings, please contact your local distributor.
MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY
You can find our current warranty conditions and limitation of liability at: https://cdn-shop.adamhall.com/media/
pdf/Manufacturers-Declarations-LDSYSTEMS_DE_EN_ES_FR.pdf
To request warranty service for a product, please contact Adam Hall GmbH, Daimler Straße 9, 61267 Neu Anspach
/ Email Info@adamhall.com / 49 (0) 6081 / 9419-0
PROPER DISPOSAL OF THIS PRODUCT
(WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT)
(Valid in the European Union and other European countries with waste separation)
This symbol on the product, or the documents accompanying the product, indicates that this appliance may not be
treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste
disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable
economic activity.

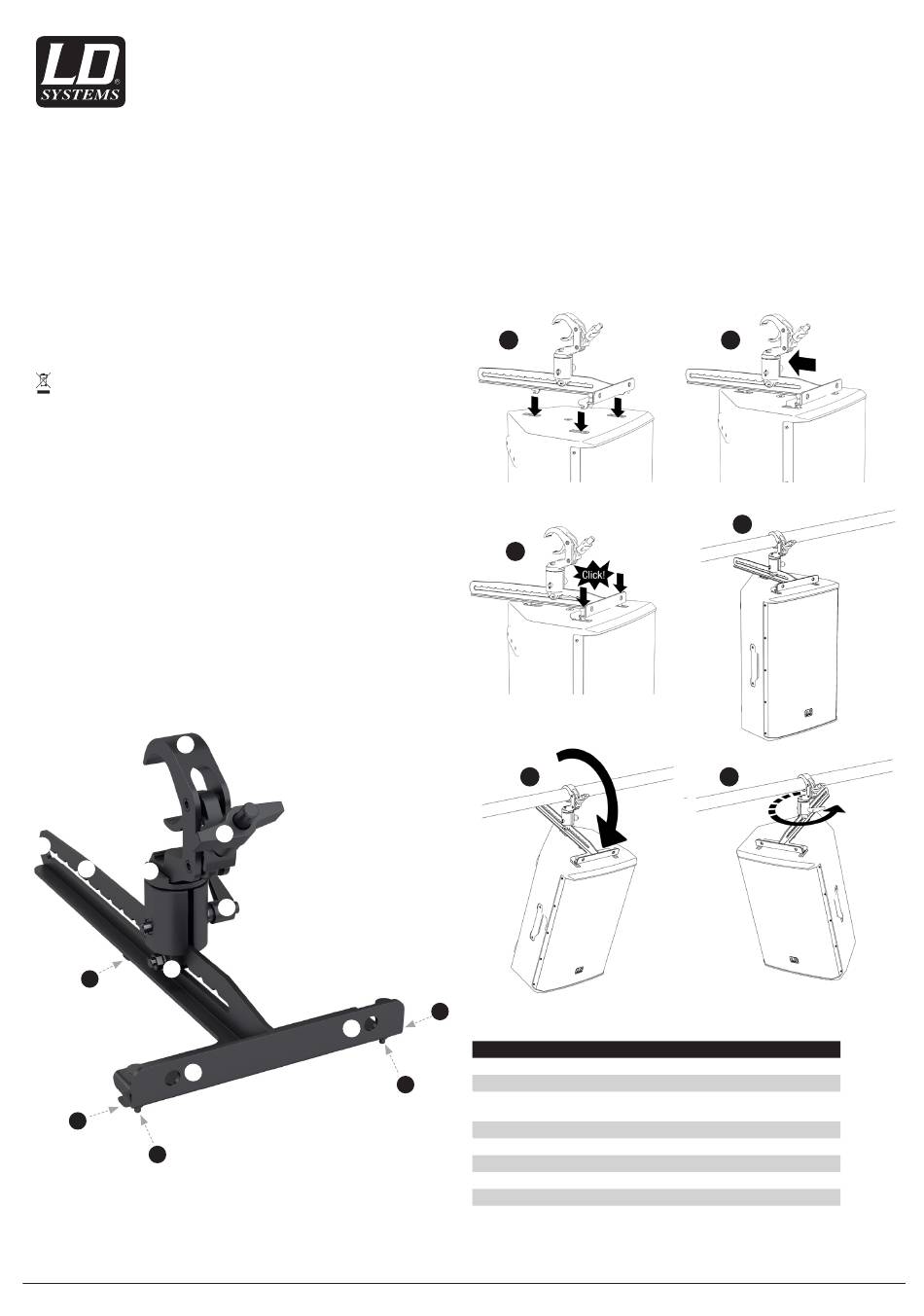

LDEBG3TMB (SUITABLE FOR LDEB122G3, LDEB122AG3, LDEB152G3, LDEB152AG3)
1 Traverse clamp for mounting on a horizontal traverse.
2 Wing nut for clamping to a traverse.
3 T-screw to lock the horizontal and vertical axes
4 Mounting rail with slots to adjust the vertical dispersion of the speaker.
5 Retaining pin.
6 Rotation mechanism for adjusting the horizontal dispersion of the speaker.
7 Three steel hooks which insert into the retaining sockets on the top of the speaker.
8 Two spring-loaded locking pins to secure the connection.
9 Mounting holes for alternative installation of the speaker with chains.
Important: Before any assembly, check that all mounting bracket components are complete, undamaged and
work correctly (split pins, screws, bolts, nuts, locking pins, steel hooks, retaining sockets in speakers, etc.).
Should any mounting bracket component be damaged, missing or not function properly, the mounting bracket
should not be used.
1
9
4
6
5
7
9
7
8
For further instructions, please check out the detailed online manual in the download area of this product at:: www.ld-systems.com
2
3
9
Adam Hall GmbH · Daimlerstr. 9 · 61267 Neu-Anspach · Germany
Tel.: (+49) 60 81 / 94 19 0 · Fax: (+49) 60 81 / 94 19 1000 · eMail: mail@adamhall.com
9 Insert all three steel hooks of the EasyMount bracket into the corresponding retaining sockets on the speaker.
10 Slide the entire bracket towards the back of the speaker.
11 When installing the mounting bracket, ensure that the spring-loaded locking pins engage fully. Ensure that
locking pins are functioning correctly before every installation. For safety reasons, both locking pins must be
pulled upwards simultaneously to release the connection (two-hand release).
12 Before attaching the speaker to a traverse, tighten the T-screw on the mounting bracket No. 3. Using
traverse clamp No.1, suspend the speaker from a horizontal traverse in a suitable position, and fasten it into
place with wing nut No. 2.
13 Loosen T-screw No. 3 slightly (approximately 1 turn). To adjust the vertical dispersion of the speaker, lift the
speaker slightly and slide the notched mounting rail No.4 into the desired tilt position. Release the speaker to
allow the retaining pin No. 5 to engage in the corresponding notch.
14 Turn the speaker until the desired horizontal dispersion is achieved and tighten T-screw No. 3.
9
11
13
7
SPECIFICATIONS
Model name:
Type:
Part:
8
Suitable for:
Material:
Surface:
Colour:
Max. Load
Dimensions (W x H x D):
Weight:
10
12
14
LDEBG3TMB
PA Loudspeaker Accessories
Truss Mount Bracket
LDEB122G3, LDEB122AG3
LDEB152G3, LDEB152AG3
Steel/Zinc
Powder Coated
Black
28 kg
230mm x 240mm x 430mm
3 kg
