DOMUS LINE FLEXYLED SE H4 PIR Montageanleitung

cap silicon
cover cap
A
+0
15mm
- 0,2
+0
+0
4mm
- 0,2 15mm
- 0,2
LED
Domus Line s.r.l., Via Maestri del Lavoro 1, 33080 Porcia (PN) Italy - tel. +39 0434 /595911 - fax. +39 0434/923345 - info@domusline.com - www.domusline.com
IFR
+0,5
72mm
- 0

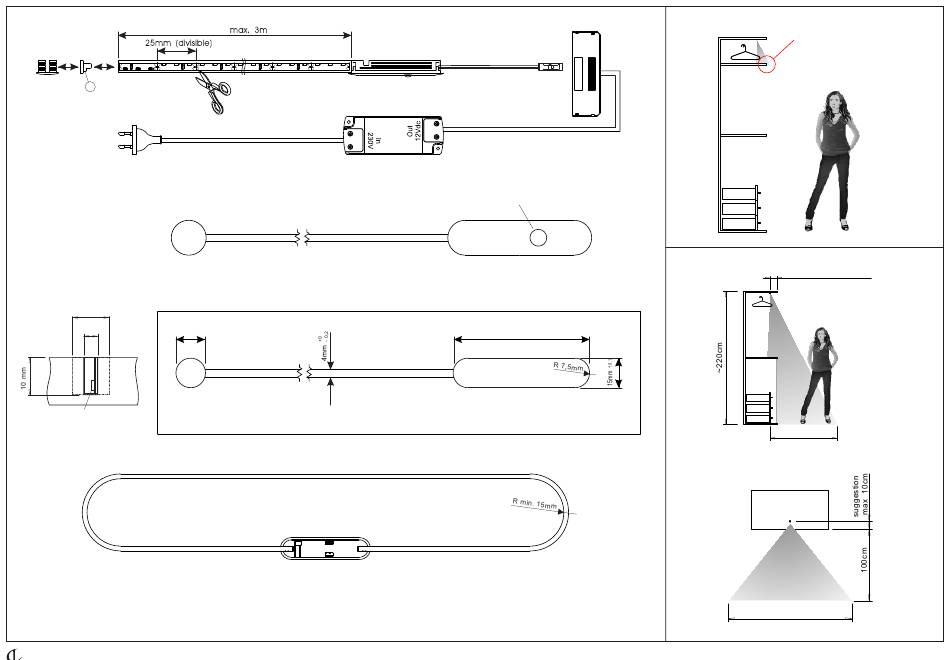

Fig. 1
WARNING
detection field must not be
obstructed by shelves positioned
too close of the sensor
Fig. 2
suggestion max 10cm
Detection area
Area di rilevamento
100cm
Top view
vista dall'alto
160cm
Fig. 3
Cod. 3488300
