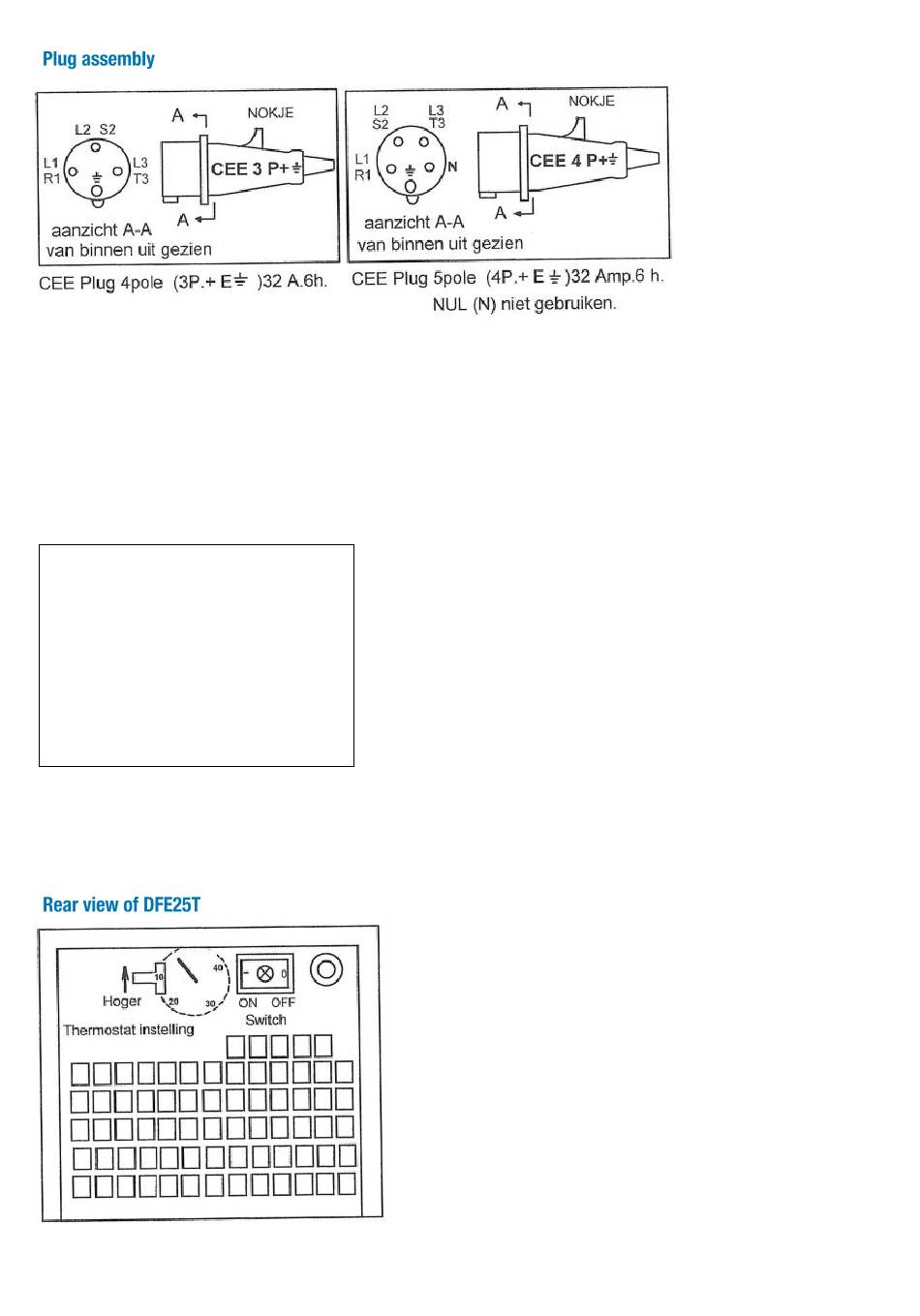

Dismantle the plug, slide the housing of the plug over the cable.
•
Fit the cable, always use conductor end sleeves.
•
Pay attention to the earth wire, tighten the screws securely.
•
Fit the strain relief and assemble the plug housing.
Green / Yellow = EARTH WIRE
L1 or R1 Brown Phase R
L2 or S2 Black Phase S
L3 or S3 Blue Phase T
When using a 5-pole
plug, do NOT use the Zero pin.
Changing the colours does not affect the operation of the heater.
Rotation direction of the fan is correct at all times.
Blue may be used in this case as
Phase wire in a 4-core cable
(NEN1010 - 514.3.4)
The DFE25T has a tamper proof built-in thermostat.
Adjustment can be made through the T opening with a thin
pin or small screwdriver..
