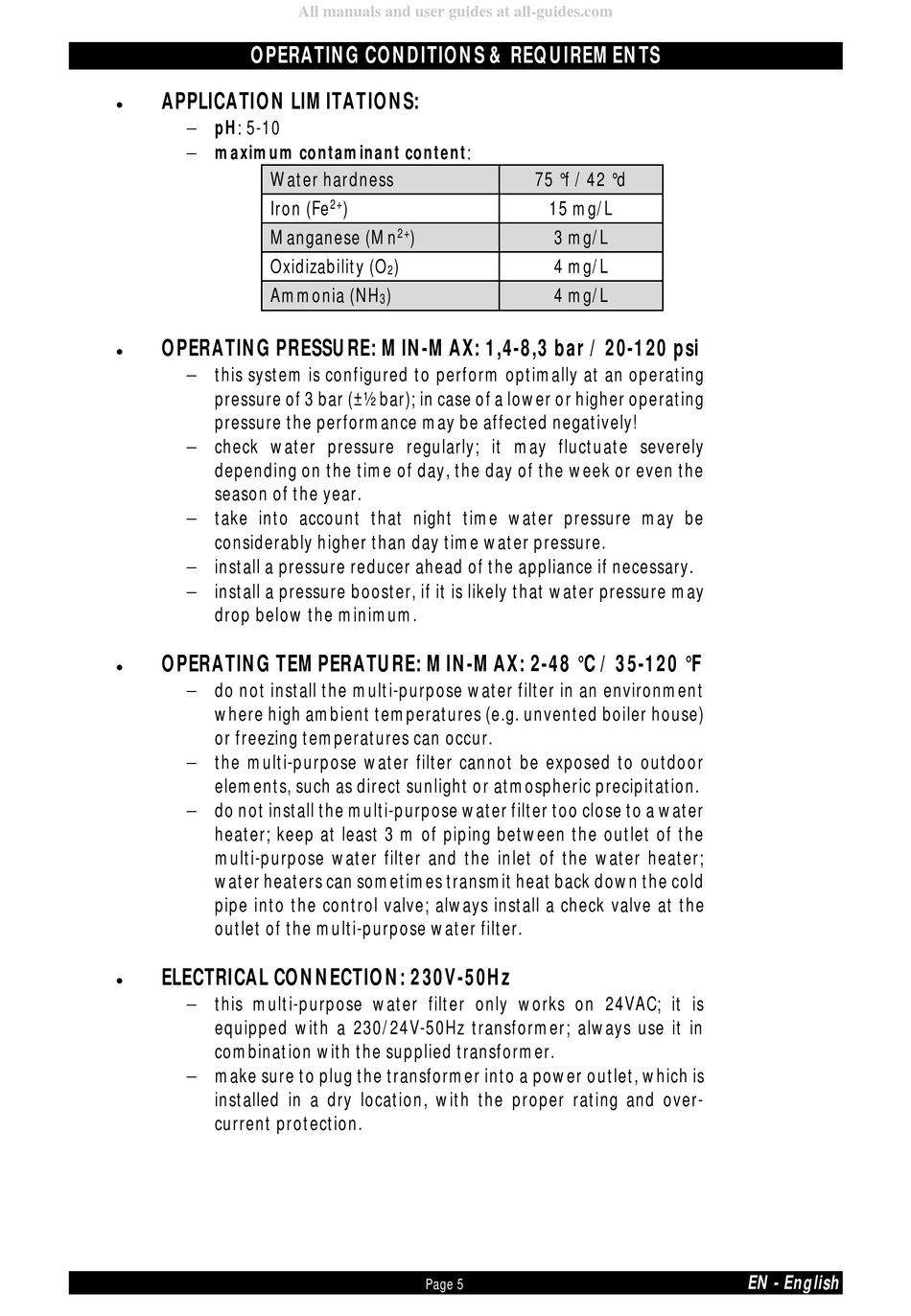

OPERATING CONDITIONS & REQUIREMENTS
APPLICATION LIMITATIONS:

 pH: 5-10
 maximum contaminant content:
Water hardness
Iron (Fe
Manganese (Mn
Oxidizability (O
Ammonia (NH
OPERATING PRESSURE: MIN-MAX: 1,4-8,3 bar / 20-120 psi

 this system is configured to perform optimally at an operating
pressure of 3 bar (±½ bar); in case of a lower or higher operating
pressure the performance may be affected negatively!
 check water pressure regularly; it may fluctuate severely
depending on the time of day, the day of the week or even the
season of the year.
 take into account that night time water pressure may be
considerably higher than day time water pressure.
 install a pressure reducer ahead of the appliance if necessary.
 install a pressure booster, if it is likely that water pressure may
drop below the minimum.
OPERATING TEMPERATURE: MIN-MAX: 2-48 °C / 35-120 °F

 do not install the multi-purpose water filter in an environment
where high ambient temperatures (e.g. unvented boiler house)
or freezing temperatures can occur.
 the multi-purpose water filter cannot be exposed to outdoor
elements, such as direct sunlight or atmospheric precipitation.
 do not install the multi-purpose water filter too close to a water
heater; keep at least 3 m of piping between the outlet of the
multi-purpose water filter and the inlet of the water heater;
water heaters can sometimes transmit heat back down the cold
pipe into the control valve; always install a check valve at the
outlet of the multi-purpose water filter.
ELECTRICAL CONNECTION: 230V-50Hz

 this multi-purpose water filter only works on 24VAC; it is
equipped with a 230/24V-50Hz transformer; always use it in
combination with the supplied transformer.
 make sure to plug the transformer into a power outlet, which is
installed in a dry location, with the proper rating and over-
current protection.
All manuals and user guides at all-guides.com
2+
)
2+
)
)
2
)
3
Page 5
75 °f / 42 °d
15 mg/L
3 mg/L
4 mg/L
4 mg/L
