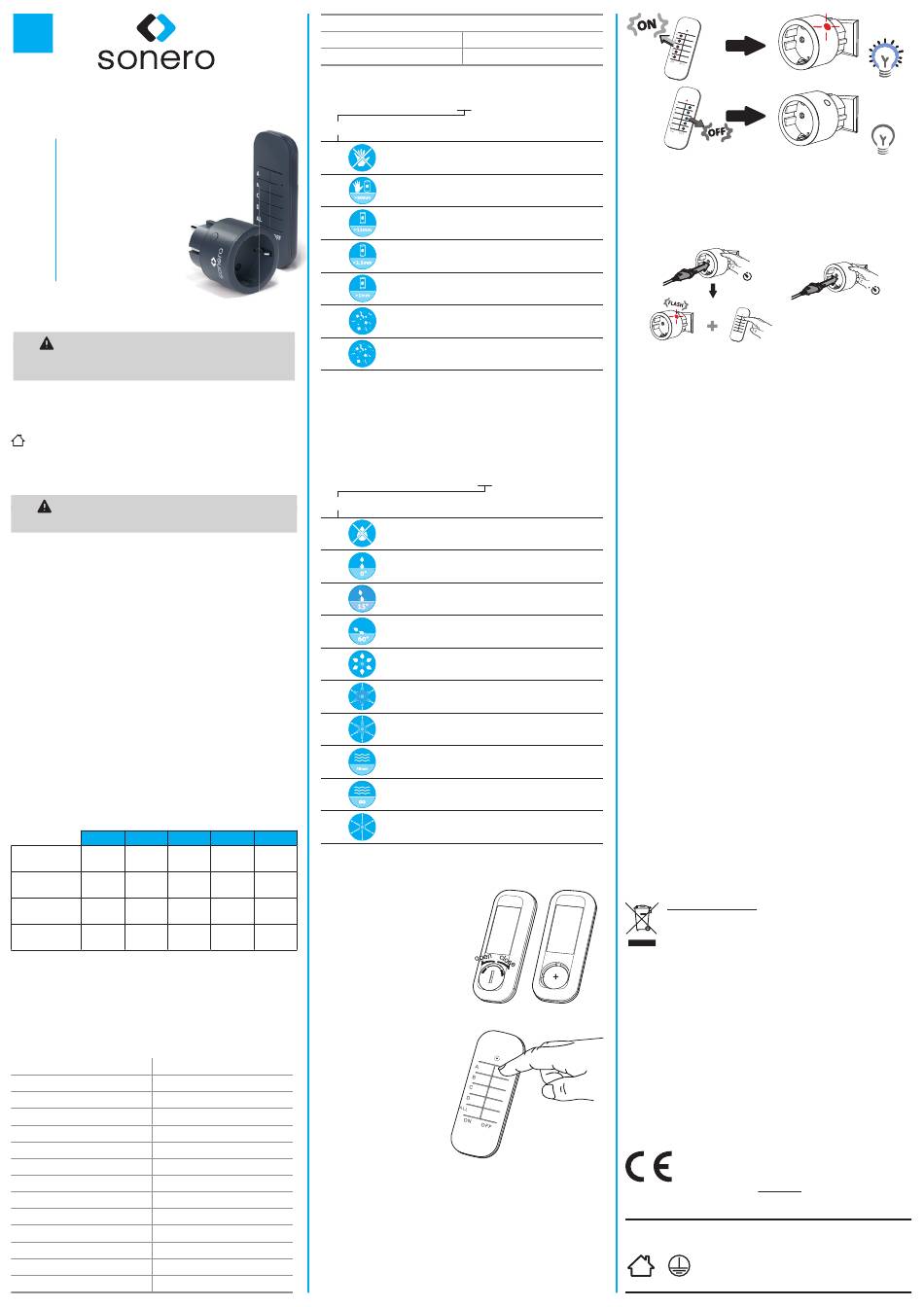

EN
REMOTE POWER SOCKETS AND SETS
USER MANUAL
S-RCS011 1x Remote Socket anthracite (51230)
S-RCS111 1x Remote Socket anthracite (51230)
1x Remote Control anthracite (50131)
S-RCS112 2x Remote Socket anthracite (51230)
1x Remote Control anthracite (50131)
S-RCS113 3x Remote Socket anthracite (51230)
1x Remote Control anthracite (50131)
S-RCS114 4x Remote Socket anthracite (51230)
1x Remote Control anthracite (50131)
REMOTE POWER SOCKETS AND SETS
ATTENTION !
Read this manual completely and carefully. It is part of the product and
contains important advice for a correct installation and usage. Keep
this manual for further questions and passing to other persons.
1 INTENDED USE
Use this product only in dry interior rooms. Other usage than described before is not allowed.
This can cause fire hazard, electric shocks or short-circuits.
2 NOTES ON SAFETY
ATTENTION !
Read the safety instructions completely and thoroughly and keep them in
mind. There is a danger of electric shocks and fire!
Use the device only with 230V~ voltage.
• The total power of the connected devices must not exceed 2300 Watts.
• Your product and its accessories are no toys and children must not use it. It contains fragile,
small and swallowable parts which can injure people, when used incorrectly!
• Remove and dispose of packaging materials - children could cut on it. There is also a danger
of swallowing and inhaling smaller parts and insulating materials.
• Keep the product away from water, extreme heat, coldness or direct sun radiation.
• Furthermore, avoid vibrations, mechanical, magnetic and electro-magnetic influences, as well
as liquid or dust contaminent.
• If defects, mechanical damages, disturbances or other problems occur that are not solvable
with help of this manual, take the device out of work immediately and consult your dealer for
questions, repair or change, as described in chapter "Warranty and Liability".
• Attend to the terms of use in chapter "Intended Use".
• The product must not be changed, reconstructed or modified in any way. It is not allowed
to open the housing.
• Voltage-free only with unplugged mains plug! Disconnect the device from mains before
cleaning, etc.
• Never use the remote sockets with devices endangering fire (e. g. electric irons, radiant
heaters and similar devices) and do not use it without any attendance.
• Never use remote power sockets series-connected.
• Only plug the remote power socket to easily accessible mains sockets, to be able to unplug
them quickly in case of emergency!
3 DELIVERY CONTENTS
S-RCS011 S-RCS111 S-RCS112
Remote Power Socket
1x 1x
(51230) anthracite
Remote Control
- 1x
(50131) anthracite
Battery Type CR2032, 3V
- 1x
(Remote Control)
Manual 1x 1x
4 DESCRIPTION AND FUNCTION
Use the power sockets to remotely switch your electronic devices on and off. With a transmission of up
to 30m and an integrated child safety device, you can control up to 4 mains sockets.
5 SPECIFICATIONS
Operating voltage 230V ~ / 50Hz
Operation display LED
Max. current 10A
Max. power 2300W
Max. Transmission distance up to 30m on open areas
0 ° to +35 ° C
Operating temperature
Max. RF Power 0dBm
Frequency 433.92 MHz
Child protection yes
Battery CR2032, 3V
Protection category IP20
Protection class I
Transmitter duty cycle <10%
Receiver category Category 2
Dimensions and weight
Remote power socket
Remote control
6 IP CLASS
This product is classifi ed as:
First index fi gure - (foreign bodies protection)
0
1
2
3
4
5
6
INTERNATIONAL PROTECTION CLASSES ACCORDING TO DIN EN
60529 (IEC 529/VDE 047 T1)
Diagrams in accordance with DIN EN 60259
An additional letter K can be used for the second index figure for classes 4 and 6 to indicate higher
requirements for road vehicles.
This product is classifi ed as:
Second index fi gure - (water protection)
0
1
2
3
4
5
6
7
8
9K
S-RCS113 S-RCS114
2x 3x 4x
7 OPERATING
1x 1x 1x
ACTIVATING/REPLACING THE BATTERY
1x 1x 1x
1. Remove the plastic stripe from the battery case.
2. Replace the used battery with a new one of the
1x 1x 1x same type opening the battery case.
The insertion direction is marked
on the product.
Battery type: CR2032, 3V
3. Attend to the "Note on Waste Disposal".
REMOTE CONTROL
1. ON - channel A is on.
OFF - channel A is off.
2. ON - channel B is on.
OFF - channel B is off.
3. ON - channel C is on.
OFF - channel C is off.
4. ON - channel D is on.
OFF - channel D is off.
5. ON - channel ALL is on.
OFF - channel ALL is off.
REMOTE POWER SOCKET
PAIRING:
1. Plug the receiver into the socket. Press the teach button of the receiver for longer than 3
seconds and hold down for no more than 6 seconds. The control lamp of the receiver flashes
which means that the receiver has entered into pairing mode. Now press the desired ON
button on the remote control, the the control lamp of the receiver will light up, and the
pairing process is complete.
Ø 48.9 x 70.3 mm / 62g
35.8 / 12.9 / 92.6 mm / 21.8g
IP 2 0
No protection against accidental contact, no protection against solid
foreign bodies
Protection against contact with any large area by hand and against solid
foreign bodies with Ø > 50 mm
Protection against contact with any large area by hand and against solid
foreign bodies with Ø > 12 mm
Protection against tools, wires or similar objects with Ø > 2,5 mm,
protection against foreign solid bodies with Ø > 2,5 mm
Protection against tools, wires or similar objects with Ø > 1 mm, protec-
tion against foreign solid bodies with Ø > 1 mm
Full protection against contact, protection against interior injurious dust
deposit
Total protection against contact, protection against penetration of dust
IP 2 0
No protection against water
Protection against vertical water drips
Protection against diagonal water drips (up to a 15° angel)
Protection against diagonal water drips (up to a 60° angel)
Protection against splashed water from all directions
Protection against water (out of a nozzle) from all directions
Protection against strong water (out of a nozzle) from all directions
Protection against ingress of water in case of temporary immersion
(30 minutes)
Protection against ingress of water in case of continuous immersion, require-
ments under agreement of manufacturer and user
Protection against ingress of water during high pressure (8.000-10.000kPa)
or steam cleaning from any direction
OPTION 1
2. In cases were more than one remote power socket is used, every power socket can have its
individual, or combined, ON/OFF Channel. All remote power sockets will always be able to
be switched ON and OFF by the ALL ON or OFF button on the remote control.
3. To remove the pairing memory, either go into pairing more (see point 1: Pairing) and press
the OFF button of the paired channel, or press the tech button longer than 6 seconds to
directly remove the pairing memory.
OPTION 1
OPTION 2
3 sec
<30 sec
8 CARE, MAINTENANCE, STORAGE AND TRANSPORT
OPTION 2
• The device is free of maintenance - Never open the housing.
• Clean the product only with a dry and soft cloth and be careful to avoid scratches. Do not
use detergents, chemicals or water. These can corrode the plastic material and also cause
short-circuits.
6 sec
• Store the device in a dry and dust-proof surrounding when not used for longer time. It must
be stored out of reach for children.
• Retain the packaging to avoid damages during transport.
9 WARRANTY AND LIABILITY:
• The manufacturer grants a guarantee of 2 years.
• As the manufacturer has no influence regarding installation, the warranty only applies to
the product itself.
• If you detect any fault or damage on your device, please contact your dealer and provide
a proof of purchase (e. g. invoice). Your dealer will either repair the fault on site or send it
back to the manufacturer. You can make the work of our technicians considerably easier by
describing possible faults in detail – only this way anyone can be assured that faults occurring
only rarely will be found and repaired with certainty!
• The manufacturer is not liable for damages or harm to persons and property, caused by
improper installation or operation, not described in this guide. This includes, among others,
any alteration and modification of the product and its accessories.
• Any use other than described in this guide is not permitted. A loss of warranty, loss of
guarantee as well as the loss of the manufacturer's liability are the consequences.
• Misprints and changes of the device, packaging or guide are subject to unannounced changes.
10 TROUBLESHOOTING
Remote socket does not react to remote control inputs
1. Remove the plastic stripe inside the battery case.
2. Mind the right battery's polarity.
3. Check the designated channel of the remote socket.
4. Stay within the maximum reach of 30m and avoid placing objects between the remote socket
and remote control.
LED does not light
1. Use a working mains socket.
2. The designated channel is switched OFF.
Material damage or open electronics caused by mechanical influences
1. Do not touch the device and immediately consult your dealer.
2. Mind the notes of safety as well as the specifications.
11 NOTES ON WASTE DISPOSAL
Disposal of the device
WEEE Reg -No.: DE 93 847 290
According to the European WEEE directive, any electrical and electronic equipment must
not be disposed of along with consumer waste. As a consumer, you are committed by
law to deposit electrical and electronic devices at public collecting points or to the dealer
for free at the end of the device's lifetime. Details are regulated in the respective
national legislations. The Wheelie Bin symbol on the product, in the manual or on the
packaging refers to these terms. With the return of your used devices you actively take
part in protecting the environment.
Disposal of batteries
The user is legally obliged (directive 2006/66/EC) to return used batteries and rechargeable
batteries. Disposing of used batteries in the household waste is prohibited! Batteries/rechargeable
batteries containing hazardous substances are marked with the crossed-out wheelie bin. The symbol
indicates that the product is forbidden to be disposed via the domestic refuse. The chemical symbols
for the respective hazardous substances are Cd = Cadmium, Hg = Mercury, Pb = Lead.
You can return used batteries/ rechargeable batteries free of charge to any collecting point of your
local authority, our stores or where batteries/ rechargeable batteries are sold. Consequently you
comply with your legal obligations and contribute to environmental protection!
12 DECLARATION OF CONFORMITY
PureLink GmbH hereby declares that the S-RCS011, S-RCS111, S-RCS112,
S-RCS113, S-RCS114 radio communication system comply with Directive
2014/53/EU. The full text of the EU Declaration of Conformity is available at the
following internet address: www.sonero.de
sonero
®
PureLink GmbH, Von-Liebig-Straße 10, 48432 Rheine, Germany
www.purelink.de
3 sec
<30 sec
6 sec
Version: 2022-06-02
