INSTALLATION AND
ADJUSTMENT MANUAL

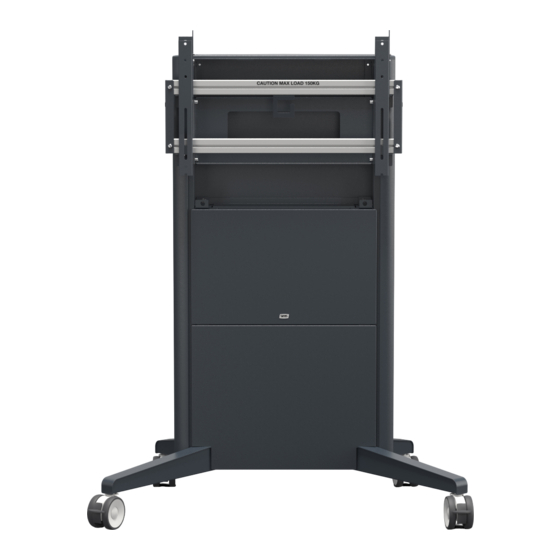

K05-105-2/K05-105-6 SMS Presence Mobile
600x400 1290
K05-107-2/K05-107-6 SMS Presence Mobile
1000x600 1290
K05-109-2/K05-109-6 SMS Presence Mobile VC
120 800x400 1290
K05-111-2/K05-111-6 SMS Presence Mobile VC
120 1000x600 1290
M000283
SMS Presence Mobile/ Floor
DE Handbuch für Installation und Anpassung
IT Manuale per l'installazione e la regolazione
ES Manual de instalación y ajuste
FI Asennus- ja säätöohje
FR Manuel d'installation et de réglage
NL Handboek voor installatie en instellingen
PL
RUS
ARB
SE Monterings- och justeringsmanual
GR
K05-119-2/K05-119-6 SMS Presence Floor
600x400 1290
K05-121-2/K05-121-6 SMS Presence Floor
1000x600 1290
K05-123-2/K05-123-6 SMS Presence Floor VC
120 800x400 1290
K05-125-2/K05-125-6 SMS Presence Floor VC
120 1000x600 1290
Werbung
Inhaltsverzeichnis
Verwandte Anleitungen für SMS K05-105-2
Inhaltszusammenfassung für SMS K05-105-2
- Seite 1 INSTALLATION AND ADJUSTMENT MANUAL K05-105-2/K05-105-6 SMS Presence Mobile K05-119-2/K05-119-6 SMS Presence Floor 600x400 1290 600x400 1290 K05-107-2/K05-107-6 SMS Presence Mobile K05-121-2/K05-121-6 SMS Presence Floor 1000x600 1290 1000x600 1290 K05-109-2/K05-109-6 SMS Presence Mobile VC K05-123-2/K05-123-6 SMS Presence Floor VC 120 800x400 1290...
- Seite 2 600x400 1650 K05-108-2/K05-108-6 SMS Presence Mobile K05-122-2/K05-122-6 SMS Presence Floor 1000x600 1650 1000x600 1650 K05-110-2/K05-110-6 SMS Presence Mobile VC K05-124-2/K05-124-6 SMS Presence Floor VC 120 800x400 1650 120 800x400 1650 K05-112-2/K05-112-6 SMS Presence Mobile VC K05-126-2/K05-126-6 SMS Presence Floor VC...
- Seite 3 Advertencia Avertissement El montaje del producto no es responsabilidad de SMS Smart Media Solutions AB y es muy Le montage doit impérativement être effectué de façon correcte et ne relève pas de la importante que el producto sea montado correctamente. El montaje incorrecto puede responsabilité...
- Seite 4 Sulla ricevuta devono essere chiaramente leggibili nome be clearly legible on the receipt. The owner is to pay the cost of returning the product to SMS, while del fornitore e data d’acquisto. Le spese di spedizione a SMS sono a carico dell’acquirente;...
-
Seite 5: Transport
SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC Instructions for use - SMS Presence Mobile, SMS Presence Floor & SMS Presence Floor with feet When using (for SMS Presence Mobile only) Children may use product only under supervision of an adult... - Seite 6 6 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC ASSEMBLY INSTRUCTIONS YOU WILL NEED No. 4 No. 5 17 mm NOT INCLUDED Display (1x/ 2x) NUMBER OF PERSONS REQUIRED...
-
Seite 7: List Of Parts
SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC 7 LIST OF PARTS (1x) (1x) (4x) (4x) (1x) (1x) (2x) (4x) ISO 7380 [M8x16] (2x) (4x) ISO 7380 [M8x10]... - Seite 8 8 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC LIST OF PARTS (cont.) 1 pair/display (2x) (1x) (1x) 600x400 1000x600 (2x) (1x) (1x) VC 800x400 VC 1000x600 K1 SCREW KIT (1 kit/display) Screw M6x10 Screw M6x16 ISO 7380[M8x16] (4x) Screw M6x30...
- Seite 9 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC 9 LIST OF PARTS (cont.) (1x) (2x) front/back-bottom back top (2x) front/back-bottom (1x) (1x) front middle back middle (1x) (1x) (1x) front middle back middle ISO4762 ISO4032 (1x) (1x) (1x) (1x) [M8x16]...
-
Seite 10: Mount Wheels
10 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC Mount wheels A2(4x) (4x) A2(4x) Mount feet (Sold as accessory) A3(4x) - Seite 11 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC 11 for PRESENCE FLOOR MOTOR only Bolt floor stand to floor Holes pattern SMS Presence Floor All (use inner holes) 25,00 635 SMS Presence Floor All Mark holes (4x) Drill holes (4x) Bolt stand to floor...
- Seite 12 12 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC Mount frame on base (4x) (4x)
- Seite 13 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC 13 Mount handles B4(2x) B5(4x) (4x) Adjust display mounting height 1. Loosen Note: Bracket height adjustment can also be done after step 5 (page 14) 2. Adjust height 3. Tighten...
- Seite 14 14 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC SMS Presence 600x400 and 1000x600 C3(4x) (4x) SMS Presence VC 800x400 and 1000x600 C3(4x) (4x)
- Seite 15 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC 15 For SMS Presence VC only Mount camera shelf bracket E6 (2x) E5 (2x) (2x) (2x) For SMS Presence VC only Adjust height to suit display Tighten...
- Seite 16 16 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC Guide cable Guide cable Mount front middle cover D4(1x) Click! Click!
- Seite 17 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC 17 Mount top back cover Click! D1 (1x) Click! Mount top cover and cap B2(2x) D5(1x)
- Seite 18 18 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC Mount middle back cover Click! D2(1x) Click! Mount bracket on display Loosen K1(4x) C1(2x) SCREW KIT (1 kit/display)
- Seite 19 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC 19 Mount display SMS Presence 600x400 and 1000x600 SMS Presence VC 800x400 and 1000x600...
- Seite 20 20 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC Pull Lock display Tighten Secure all! Adjustment & Alignment ADJUST!
- Seite 21 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC 21 Camera shelf and camera Installation E8(2x) Adjust E7(2x) dist. E7(2x) Assemble camera shelf (2x) (2x) (2x) Alt.1: E9 Alt.2: E10 Adjust Mount camera Alt.1: E9(4x) Alt.2: Tighten E10(1x)
- Seite 22 22 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC Mount bottom front and back cover Mobile stand & Floor stand with feet Floor stand...
- Seite 23 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC 23 To open or close bottom covers Use this space to store cables, codecs, accessories, etc.
-
Seite 24: Product Dimensions
24 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC PRODUCT DIMENSIONS K05-105-2 / K05-105-6 Presence Mobile 1290 / 600x400 0,33 max 600 - min 200 CL D - Centrum Line Display 5,91 43,36 26,40 1101 28,35 24,70 All dimensions in mm. - Seite 25 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC 25 PRODUCT DIMENSIONS 0,33 K05-106-2 / K05-106-6 SMS Presence Mobile 1650 / 600x400 max 600 - min 200 CL D - Centrum Line Display 5,91 43,36 26,40 1101 28,35 24,70 All dimensions in mm.
- Seite 26 26 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC PRODUCT DIMENSIONS K05-109-2 / K05-109-6 Presence Mobile VC 1290 / 800x400 11,02 0,33 max 800 - min 200 CL D - Centrum Line Display 5,91 All dimensions in mm. Dimensions in brackets [ ]...
- Seite 27 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC 27 PRODUCT DIMENSIONS K05-110-2 / K05-110-6 Presence Mobile VC 1650 / 800x400 11,02 0,33 max 800 - min 200 CL D - Centrum Line Display All dimensions in mm. 5,91 Dimensions in brackets [ ]...
- Seite 28 28 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC PRODUCT DIMENSIONS K05-119-2 / K05-119-6 SMS Presence Floor 600x400 1290 0,33 max 600 - min 200 CL D - Centrum Line Display 5,91 38,21 23,58 28,35 24,70 All dimensions in mm.
- Seite 29 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC 29 PRODUCT DIMENSIONS K05-120-2 / K05-120-6 SMS Presence Floor 600x400 1650 0,33 max 600 - min 200 CL D - Centrum Line Display 5,91 38,21 23,58 28,35 24,70 All dimensions in mm.
- Seite 30 30 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC PRODUCT DIMENSIONS 11,02 K05-123-2 / K05-123-6 SMS Presence Floor VC 800x400 1290 0,33 max 800 - min 200 CL D - Centrum Line Display 5,91 All dimensions in mm. Dimensions in brackets [ ]...
- Seite 31 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC 31 PRODUCT DIMENSIONS K05-124-2 / K05-124-6 SMS Presence Floor VC 800x400 1650 11,02 0,33 max 800 - min 200 CL D - Centrum Line Display All dimensions in mm. Dimensions in brackets [ ]...
- Seite 32 32 SMS PRESENCE MOBILE/FLOOR & SMS PRESENCE MOBILE/FLOOR VC SMS Evoko Group AB Hästholmsvägen 32, 5th floor, SE-131 30 Nacka, Sweden www.smartmediasolutions.com...
