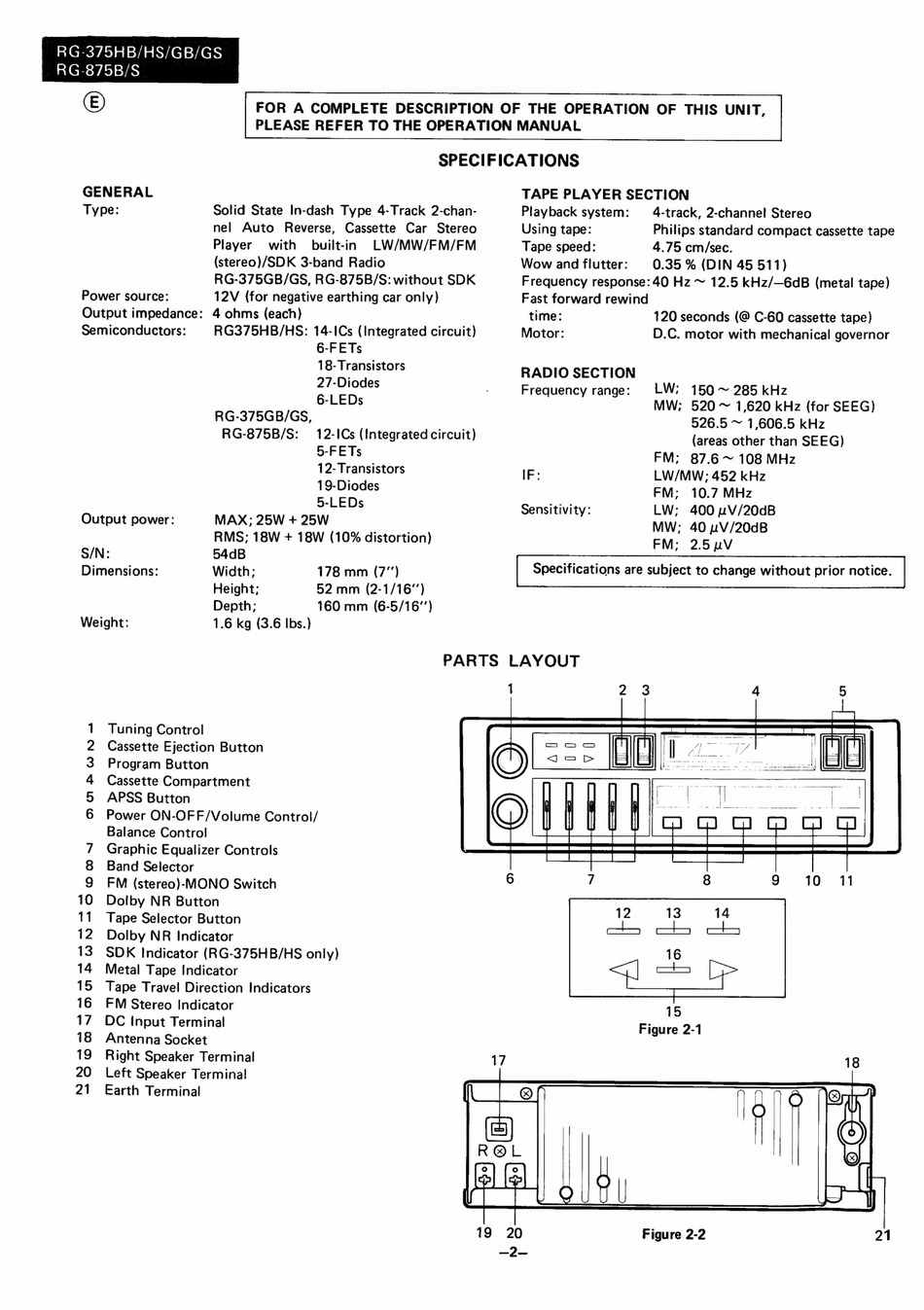

RG-375HB/HS/GB/GS
RG-875B/S
€)
FOR A COMPLETE
DESCRIPTION
OF THE OPERATION
OF THIS UNIT,
PLEASE REFER TO THE OPERATION MANUAL
SPECIFICATIONS
GENERAL
TAPE PLAYER SECTION
Type:
Solid State In-dash Type 4-Track 2-chan-
Playback system:
4-track, 2-channel Stereo
nel Auto
Reverse,
Cassette
Car
Stereo
Using tape:
Philips standard compact cassette tape
Player
with
built-in)
LW/MW/FM/FM
Tape speed:
4.75 cm/sec.
(stereo)/SDK 3-band Radio
Wow and flutter:
0.35% (DIN 45 511)
RG-375GB/GS,
RG-875B/S: without SDK
Frequency response: 40 Hz ~ 12.5 kHz/—6dB (metal tape)
Power source:
12V (for negative earthing car only)
Fast forward rewind
Output impedance:
4 ohms (each)
time:
120 seconds (@ C-60 cassette tape)
Semiconductors:
RG375HB/HS: 14-ICs (Integrated circuit)
Motor:
D.C. motor with mechanical governor
6-FETs
Lor ansieole
RADIO SECTION
27-Diodes
;
Frequency range:
LW:
150 ~ 285 kHz
6-LEDs
MW:
520 ~ 1,620 kHz (for SEEG)
RG-375GB/GS,
526.5 ~ 1,606.5 kHz
RG-875B/S:
12-ICs (Integrated circuit)
(areas other than SEEG)
5-FETs
FM;
87.6 ~ 108 MHz
12-Transistors
IF:
LW/MW; 452 kHz
19-Diodes
FM; 10.7 MHz
5-LEDs
Sensitivity:
LW; 400 uV/20dB
Output power:
MAX; 25W + 25W
MW;
40 pV/20dB
RMS; 18W + 18W (10% distortion)
FM;
2.5uV
S/N:
54dB
Dimensions:
Width;
178 mm (7")
Height;
52 mm (2-1/16"")
Depth;
160 mm (6-5/16'')
Weight:
1.6 kg (3.6 Ibs.)
PARTS
LAYOUT
1. Tuning Control
2
Cassette Ejection Button
3
Program Button
4
Cassette Compartment
5
APSS Button
6 Power ON-OFF/Volume Control/
Balance Control
7
Graphic Equalizer Controls
8
Band Selector
9
FM (stereo)-MONO Switch
10
Dolby NR Button
11.
Tape Selector Button
12
Dolby NR Indicator
13
SDK Indicator (RG-375HB/HS only)
14
Metal Tape Indicator
15
Tape Travel Direction Indicators
16
FM Stereo Indicator
17
DC Input Terminal
18
Antenna Socket
19
Right Speaker Terminal
20
Left Speaker Terminal
21>
Earth Terminal
19
20
Figure 2-2
21
