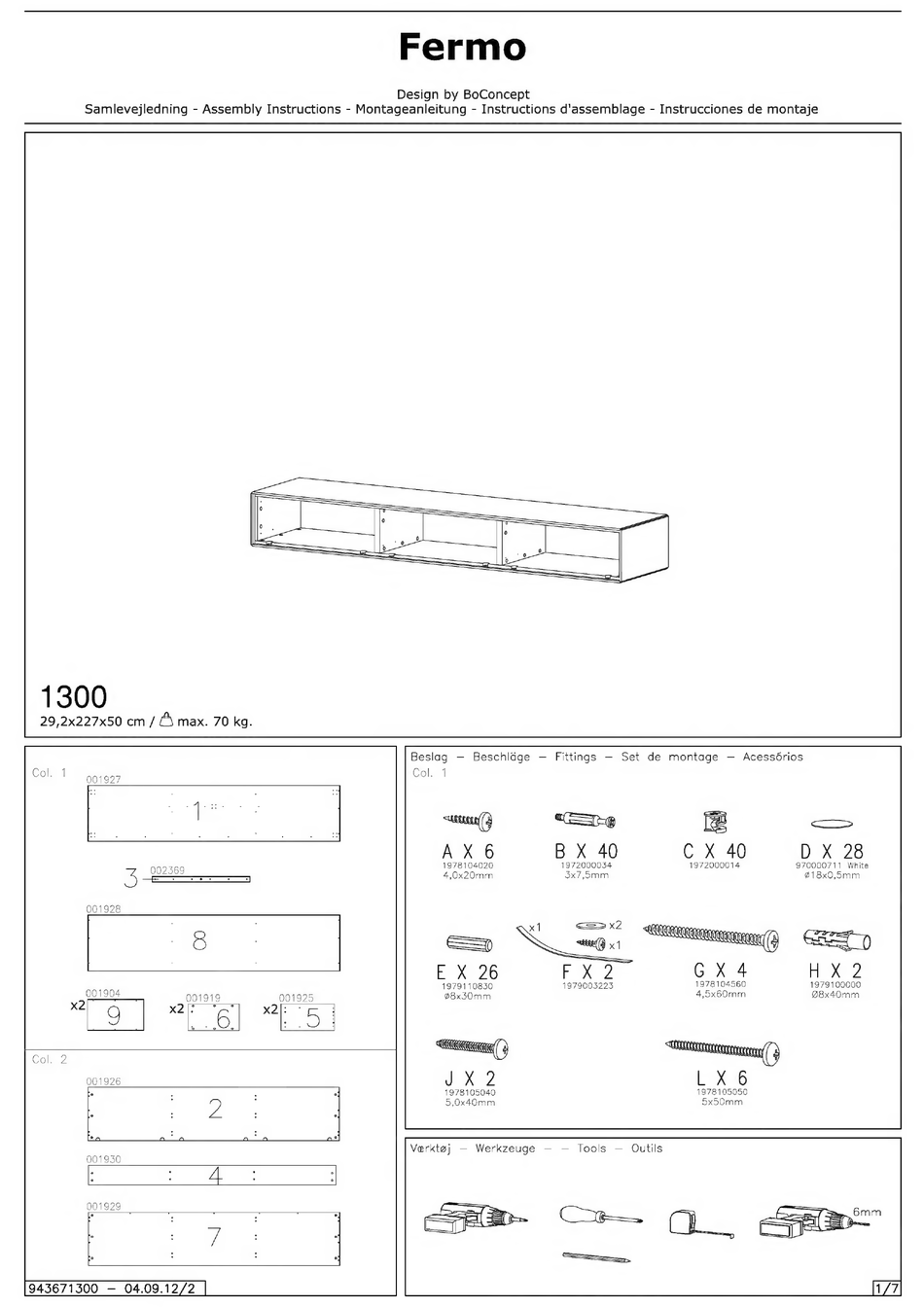

BoConcept Fermo 1300 Montageanleitung

Fermo
Design by BoConcept
Samlevejledning - Assembly Instructions - Montageanleitung - Instructions d'assemblage - Instrucciones de montaje

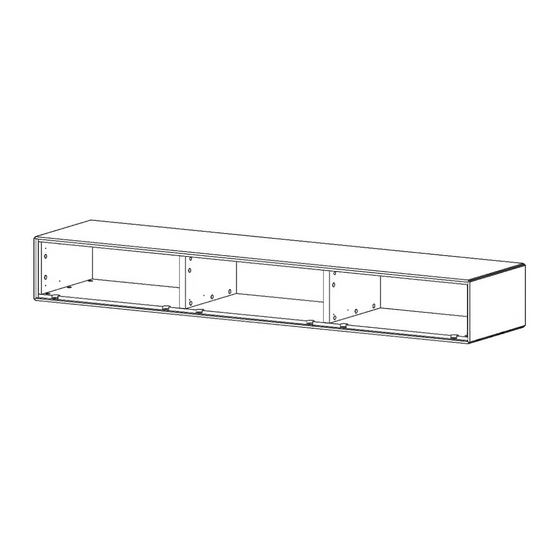

1300
29,2x227x50 cm / (A max. 70 kg.
Beslag — Beschläge — Fittings — Set de montage — Acessörios
Col. 1
A X 6 B X 40 C X 40 D X 28
1978104020 1972000034 1972000014 970000711 White
4,0x20mm 818x0,5mm
8 ` Na j GE)
| E X 26 HX2
1979110830 1979003223 1978104560 1979100000
001919 ø8x30mm 4,5x60mm Ø8x40mm
re
J X 2
1978105040 1978105050
5,0x40mm 5x50mm
Verktej — Werkzeuge — — Tools — Outils
==
943671300 - 04.09.12/2
