M-bus-masterinterface für bis zu 3 zähler (4 Seiten)
Inhaltszusammenfassung für Relay PW3
Seite 1

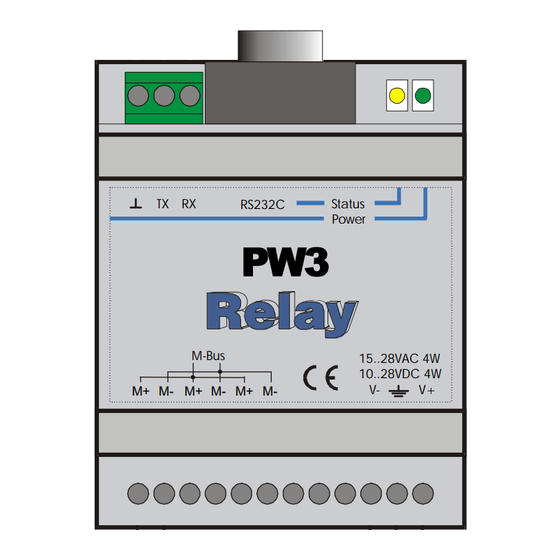

M-Bus Beschreibung Description: Der PW3 ist ein Pegelwandler („Master“) The PW3 is a level converter (master) for zur Fernspeisung und Fernauslesung von remote feeding and remote reading of up bis zu 3 Standard-Endgeräten (Zählern). to 3 slaves. It’s resistant to sustained Er ist dauerkurzschlußfest und sehr...
Seite 2
GmbH, Stettiner Str. 38, D-33106 Paderborn RS232-Schnittstelle: RS232 interface: Zur Abfrage und zur Auswertung der For data request and utilization of the Antworttelegramme ist ein Steuerrechner respond data, a control computer is erforderlich. Dazu ist eine RS232-Schnitt- necessary. Therefore an RS232 interface stelle vorgesehen, die sowohl auf Klem- is available.
Seite 3
Hierdurch wird der mögliche Abstand der This voltage drop limits the distance Zähler vom PW3 begrenzt. Mit dem between the PW3 and the slaves. With Kabeltyp JYSTY nx2x0.8 (75Ω/km) sind cable JYSTY nx2x0.8...
Seite 4
Mounting the Housing: Der PW3 besitzt eine Vorrichtung zur A special fixture is attached to the back of Anbringung auf einer Hutschiene TS35 the PW3 housing for mounting on a top- (DIN EN 50022). hat rail TS35 (DIN EN 50022). Platine/PCB: Höhe/Height:...
