EPS1200 POWER SUPPLY SPECIFICATIONS
Mains Voltage (selectable)
Mains Frequency
Power Consumption (max.)
Mains fuse rating
240/230/220 V
120/100 V
Outputs XLR
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Max. length of the XLR -cable connection
Protection
Cooling
Operating Temperature Range (ambient)
Size
Width
Depth
Height
(incl. rubber feet)
Net Weight

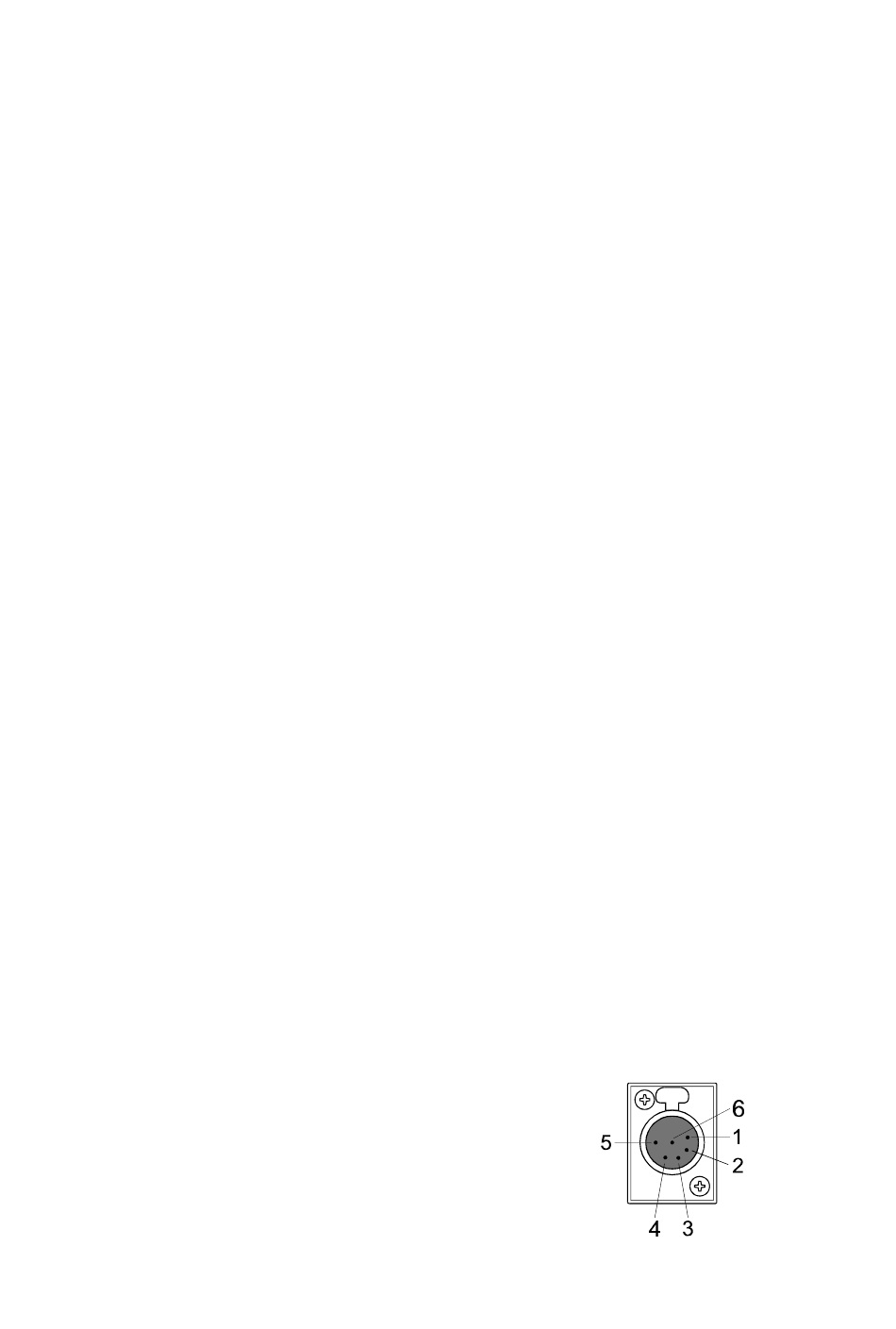

PIN Assignment XLR POWER SUPPLY
PIN 1 =
switched output relays
PIN 2 =
+17V
PIN 3 =
- 17V
PIN 4 =
+12V
PIN 5 =
+48V
PIN 6 =
Ground/Screen
240/230/220/120/100V
50/60Hz
150W
T1.6A (250V)
T3.15A (250V)
Voltage
Function
Relay Control
+17V
-17V
+12V
+48V
Ground
10 mtr. (32.81 feet)
Current limiter, turn on delay
Thermal controlled fan, front-to-rear
0 ... + 40 Deg C
mm
483
205
88.1 (2RU)
97.5
7.0 kg
19
Max. Output
Current
25mA
1.5A
1.5A
1.0A
0.3A
———
inch
19"
8.06"
3.47"
3.84"
15.5 Ibs
