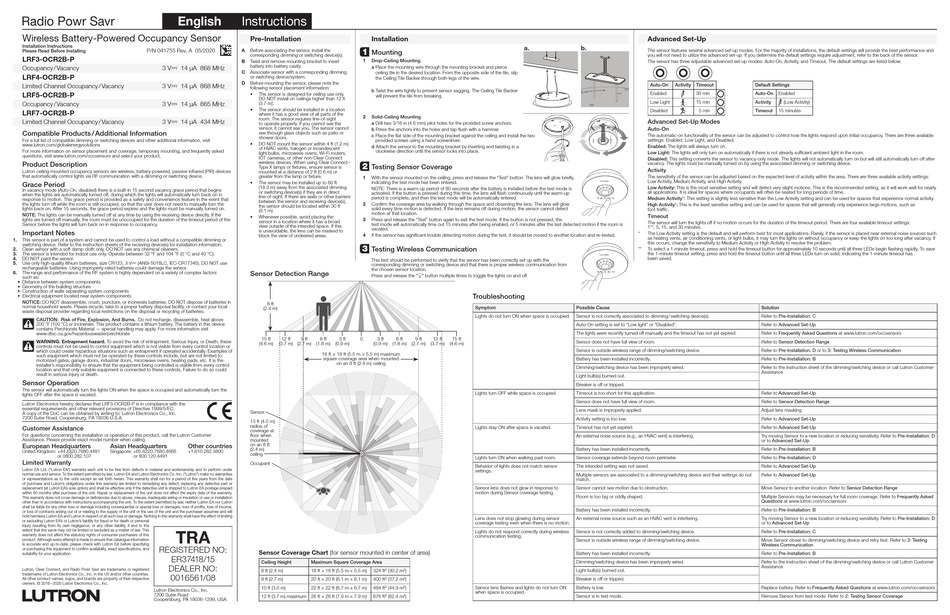

Lutron LRF3-OCR2B-P Anleitung

Radio Powr Savr English
Wireless Battery-Powered Occupancy Sensor
Installation Instructions
P/N 041755 Rev. A 05/2020
Please Read Before Installing
LRF3-OCR2B-P
Occupancy / Vacancy 3 V- 14 µA 868 MHz
LRF4-OCR2B-P
Limited Channel Occupancy / Vacancy 3 V- 14 µA 868 MHz
LRF5-OCR2B-P
Occupancy / Vacancy 3 V- 14 µA 865 MHz
LRF7-OCR2B-P
Limited Channel Occupancy / Vacancy 3 V- 14 µA 434 MHz
Compatible Products / Additional Information
For a full list of compatible dimming or switching devices and other additional information, visit
www.lutron.com/globalenergysolutions
For more information on sensor placement and coverage, temporary mounting, and frequently asked
questions, visit www.lutron.com/occsensors and select your product.
Product Description
Lutron ceiling-mounted occupancy sensors are wireless, battery-powered, passive infrared (PIR) devices
that automatically control lights via RF communication with a dimming or switching device.
Grace Period
In vacancy mode (Auto-On, disabled) there is a built-in 15 second vacancy grace period that begins
when the lights are automatically turned off, during which the lights will automatically turn back on in
response to motion. This grace period is provided as a safety and convenience feature in the event that
the lights turn off while the room is still occupied, so that the user does not need to manually turn the
lights back on. After 15 seconds, the grace period expires and the lights must be manually turned on.
NOTE: The lights can be manually turned off at any time by using the receiving device directly. If the
lights are turned off manually, the room must be unoccupied for the duration of the timeout period of the
Sensor before the lights will turn back on in response to occupancy.
Important Notes
1. This sensor is part of a system and cannot be used to control a load without a compatible dimming or
switching device. Refer to the instruction sheets of the receiving device(s) for installation information.
2. Clean sensor with a soft damp cloth only. DO NOT use any chemical cleaners.
3. The sensor is intended for indoor use only. Operate between 32 °F and 104 °F (0 °C and 40 °C).
4. DO NOT paint the sensor.
5. Use only high-quality lithium batteries, size CR123, 3 V- (ANSI-5018LC, IEC-CR17345). DO NOT use
rechargeable batteries. Using improperly-rated batteries could damage the sensor.
6. The range and performance of the RF system is highly dependent on a variety of complex factors
such as:
• Distance between system components
• Geometry of the building structure
• Construction of walls separating system components
• Electrical equipment located near system components
NOTICE: DO NOT disassemble, crush, puncture, or incinerate batteries. DO NOT dispose of batteries in
normal household waste. Please recycle, take to a proper battery disposal facility, or contact your local
waste disposal provider regarding local restrictions on the disposal or recycling of batteries.
CAUTION: Risk of Fire, Explosion, And Burns. Do not recharge, disassemble, heat above
200 °F (100 °C) or incinerate. This product contains a lithium battery. The battery in this device
contains Perchlorate Material — special handling may apply. For more information visit
www.dtsc.ca.gov/hazardouswaste/perchlorate
WARNING: Entrapment hazard. To avoid the risk of entrapment, Serious Injury, or Death, these
controls must not be used to control equipment which is not visible from every control location or
which could create hazardous situations such as entrapment if operated accidentally. Examples of
such equipment which must not be operated by these controls include, but are not limited to:
motorized gates, garage doors, industrial doors, microwave ovens, heating pads, etc. It is the
installer's responsibility to ensure that the equipment being controlled is visible from every control
location and that only suitable equipment is connected to these controls. Failure to do so could
result in serious injury or death.
Sensor Operation
The sensor will automatically turn the lights ON when the space is occupied and automatically turn the
lights OFF after the space is vacated.
Lutron Electronics hereby declares that LRF3-OCR2B-P is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
A copy of the DoC can be obtained by writing to: Lutron Electronics Co., Inc.
7200 Suter Road, Coopersburg, PA 18036 U.S.A.
Customer Assistance
For questions concerning the installation or operation of this product, call the Lutron Customer
Assistance. Please provide exact model number when calling.
European Headquarters Asian Headquarters Other countries
United Kingdom: +44.(0)20.7680.4481 Singapore: +65.6220.7680.4666 +1.610.282.3800
or 0800.282.107 or 800.120.4491
Limited Warranty
Lutron EA Ltd. ("Lutron EA") warrants each unit to be free from defects in material and workmanship and to perform under
normal use and service. To the extent permitted by law, Lutron EA and Lutron Electronics Co. Inc. ("Lutron") make no warranties
or representations as to the units except as set forth herein. This warranty shall run for a period of five years from the date
of purchase and Lutron's obligations under this warranty are limited to remedying any defect, replacing any defective part or
replacement (at Lutron EA's sole option) and shall be effective only if the defective unit is shipped to Lutron EA postage prepaid
within 60 months after purchase of the unit. Repair or replacement of the unit does not affect the expiry date of the warranty.
This warranty does not cover damage or deficiencies due to abuse, misuse, inadequate wiring or insulation or use or installation
other than in accordance with instructions accompanying the unit. To the extent permitted by law, neither Lutron EA nor Lutron
shall be liable for any other loss or damage including consequential or special loss or damages, loss of profits, loss of income,
or loss of contracts arising out of or relating to the supply of the unit or the use of the unit and the purchaser assumes and will
hold harmless Lutron EA and Lutron in respect of all such loss or damage. Nothing in this warranty shall have the effect of limiting
or excluding Lutron EA's or Lutron's liability for fraud or for death or personal
injury resulting from its own negligence, or any other liability, if and to the
TRA
extent that the same may not be limited or excluded as a matter of law. This
warranty does not affect the statutory rights of consumer purchasers of this
product. Although every attempt is made to ensure that catalogue information
is accurate and up-to-date, please check with Lutron EA before specifying
REGISTERED NO:
or purchasing this equipment to confirm availability, exact specifications, and
suitability for your application.
ER37418/15
DEALER NO:
Lutron, Clear Connect, and Radio Powr Savr are trademarks or registered
trademarks of Lutron Electronics Co., Inc. in the US and/or other countries.
0016561/08
All other product names, logos, and brands are property of their respective
owners. © 2016 – 2020 Lutron Electronics Co., Inc.
Lutron Electronics Co., Inc.
7200 Suter Road
®
Coopersburg, PA 18036-1299, USA
Instructions
Pre-Installation Installation
1
A Before associating the sensor, install the
Mounting
corresponding dimming or switching device(s).
1 Drop-Ceiling Mounting
B Twist and remove mounting bracket to insert
battery into battery cavity.
a Place the mounting wire through the mounting bracket and pierce
C Associate sensor with a corresponding dimming ceiling tile in the desired location. From the opposite side of the tile, slip
or switching device/system.
the Ceiling Tile Backer through both legs of the wire.
D Before mounting the sensor, please note the
following sensor placement information:
b Twist the wire tightly to prevent sensor sagging. The Ceiling Tile Backer
• The sensor is designed for ceiling use only.
will prevent the tile from breaking.
DO NOT install on ceilings higher than 12 ft
(3.7 m).
• The sensor should be installed in a location
where it has a good view of all parts of the
2
Solid-Ceiling Mounting
room. The sensor requires line-of-sight
to operate properly. If you cannot see the a Drill two 3/16 in (4.6 mm) pilot holes for the provided screw anchors.
sensor, it cannot see you. The sensor cannot
b Press the anchors into the holes and tap flush with a hammer.
see through glass objects such as patio or
c Place the flat side of the mounting bracket against the ceiling and install the two
shower doors.
provided screws using a hand screwdriver.
• DO NOT mount the sensor within 4 ft (1.2 m)
d Attach the sensor to the mounting bracket by inserting and twisting in a
of HVAC vents, halogen or incandescent
clockwise direction until the sensor locks into place.
light bulbs, microwave ovens, Wi-Fi routers,
IOT cameras, or other non-Clear Connect
wireless devices. When using Clear Connect –
2
Testing Sensor Coverage
Type X lamps or fixtures, ensure sensor is
mounted at a distance of 2 ft (0.6 m) or
greater from the lamp or fixture.
1 With the sensor mounted on the ceiling, press and release the "Test" button. The lens will glow briefly,
• The sensor may be installed up to 60 ft indicating the test mode has been entered.
(18.3 m) away from the associated dimming
NOTE: There is a warm-up period of 90 seconds after the battery is installed before the test mode is
or switching device(s) if they are in direct
activated. If the button is pressed during this time, the lens will flash continuously until the warm-up
line-of-sight. If there are walls or other barriers
period is complete, and then the test mode will be automatically entered.
between the sensor and receiving device(s),
2 Confirm the coverage area by walking through the space and observing the lens. The lens will glow
the sensor should be located within 30 ft
solid every time motion is detected. If the lens remains off during motion, the sensor cannot detect
(9.1 m).
motion at that location.
• Whenever possible, avoid placing the
3 Press and release the "Test" button again to exit the test mode. If the button is not pressed, the
sensor in a location where it has a broad
test mode will automatically time out 15 minutes after being enabled, or 5 minutes after the last detected motion if the room is
view outside of the intended space. If this
vacated.
is unavoidable, the lens can be masked to
4 If the sensor has significant trouble detecting motion during the test, it should be moved to another location and re-tested.
block the view of undesired areas.
3
Testing Wireless Communication
This test should be performed to verify that the sensor has been correctly set up with the
corresponding dimming or switching device and that there is proper wireless communication from
the chosen sensor location.
Sensor Detection Range
Press and release the "
8 ft
(2.4 m)
15 ft 12 ft 9 ft 6 ft 3 ft 0 3 ft
(4.6 m) (3.7 m) (2.7 m) (1.8 m) (0.9 m) (0.9 m)
18 ft × 18 ft (5.5 m × 5.5 m) maximum
square coverage area when mounted
on an 8 ft (2.4 m) ceiling
S
Sensor
13 ft (4.0 m)
radius of
coverage at
floor when
mounted
on an 8 ft
(2.4 m)
ceiling
Occupant
Sensor Coverage Chart (for sensor mounted in center of area)
Ceiling Height Maximum Square Coverage Area
8 ft (2.4 m) 18 ft × 18 ft (5.5 m × 5.5 m) 324 ft
9 ft (2.7 m) 20 ft × 20 ft (6.1 m × 6.1 m) 400 ft
10 ft (3.0 m) 22 ft × 22 ft (6.7 m × 6.7 m) 484 ft
12 ft (3.7 m) maximum 26 ft × 26 ft (7.9 m × 7.9 m) 676 ft
a.
g
" button multiple times to toggle the lights on and off.
Troubleshooting
Symptom
Lights do not turn ON when space is occupied.
6 ft 9 ft 12 ft 15 ft
(1.8 m) (2.7 m) (3.7 m) (4.6 m)
Lights turn OFF while space is occupied.
Lights stay ON after space is vacated.
Lights turn ON when walking past room.
Behavior of lights does not match sensor
settings.
Sensor lens does not glow in response to
motion during Sensor coverage testing.
Lens does not stop glowing during sensor
coverage testing even when there is no motion.
Lights do not respond correctly during wireless
communication testing.
2 (30.2 m 2 )
2 (37.2 m 2 )
2 (44.9 m 2 ) Sensor lens flashes and lights do not turn ON
when space is occupied.
2 (62.4 m 2 )
Advanced Set-Up
b.
The sensor features several advanced set-up modes. For the majority of installations, the default settings will provide the best performance and
you will not need to utilize the advanced set-up. If you determine the default settings require adjustment, refer to the back of the sensor.
The sensor has three adjustable advanced set-up modes: Auto-On, Activity, and Timeout. The default settings are listed below.
Auto-On Activity Timeout Default Settings
Enabled 30 min Auto-On
Low Light 15 min Activity
Disabled 5 min Timeout
Advanced Set-Up Modes
Auto-On
The automatic-on functionality of the sensor can be adjusted to control how the lights respond upon initial occupancy. There are three available
settings: Enabled, Low Light, and Disabled.
Enabled: The lights will always turn on.
Low Light: The lights will only turn on automatically if there is not already sufficient ambient light in the room.
Disabled: This setting converts the sensor to vacancy-only mode. The lights will not automatically turn on but will still automatically turn off after
vacancy. The lights must be manually turned on by using the associated dimming or switching device.
Activity
The sensitivity of the sensor can be adjusted based on the expected level of activity within the area. There are three available activity settings:
Low Activity, Medium Activity, and High Activity.
Low Activity: This is the most sensitive setting and will detect very slight motions. This is the recommended setting, as it will work well for nearly
all applications. It is ideal for spaces where occupants will often be seated for long periods of time.
Medium Activity*: This setting is slightly less sensitive than the Low Activity setting and can be used for spaces that experience normal activity.
High Activity*: This is the least sensitive setting and can be used for spaces that will generally only experience large motions, such as
foot traffic.
Timeout
The sensor will turn the lights off if no motion occurs for the duration of the timeout period. There are four available timeout settings:
1**, 5, 15, and 30 minutes.
* The Low Activity setting is the default and will perform best for most applications. Rarely, if the sensor is placed near external noise sources such
as heating vents, air conditioning vents, or light bulbs, it may turn the lights on without occupancy or keep the lights on too long after vacancy. If
this occurs, change the sensitivity to Medium Activity or High Activity to resolve the problem.
** To select a 1-minute timeout, press and hold the timeout button for approximately 10 seconds until all three LEDs begin flashing rapidly. To save
the 1-minute timeout setting, press and hold the timeout button until all three LEDs turn on solid, indicating the 1-minute timeout has
been saved.
Possible Cause
Sensor is not correctly associated to dimming / switching device(s).
Auto-On setting is set to "Low light" or "Disabled".
The lights were recently turned off manually and the timeout has not yet expired.
Sensor does not have full view of room.
Sensor is outside wireless range of dimming/switching device.
Battery has been installed incorrectly.
Dimming/switching device has been improperly wired.
Light bulb(s) burned out.
Breaker is off or tripped.
Timeout is too short for this application.
Sensor does not have full view of room.
Lens mask is improperly applied.
Activity setting is too low.
Timeout has not yet expired.
An external noise source (e.g., an HVAC vent) is interfering.
Battery has been installed incorrectly.
Sensor coverage extends beyond room perimeter.
The intended setting was not saved.
Multiple sensors are associated to a dimming/switching device and their settings do not
match.
Sensor cannot see motion due to obstruction.
Room is too big or oddly shaped.
Battery has been installed incorrectly.
An external noise source such as an HVAC vent is interfering.
Sensor is not correctly added to dimming/switching device.
Sensor is outside wireless range of dimming/switching device.
Battery has been installed incorrectly.
Dimming/switching device has been improperly wired.
Light bulb(s) burned out.
Breaker is off or tripped.
Battery is low.
Sensor is in test mode.
Enabled
(Low Activity)
15 minutes
Solution
Refer to Pre-Installation: C
Refer to Advanced Set-Up
Refer to Frequently Asked Questions at www.lutron.com/occsensors
Refer to Sensor Detection Range
Refer to Pre-Installation: D or to 3: Testing Wireless Communication
Refer to Pre-Installation: B
Refer to the instruction sheet of the dimming/switching device or call Lutron Customer
Assistance
Refer to Advanced Set-Up
Refer to Sensor Detection Range
Adjust lens masking
Refer to Advanced Set-Up
Refer to Advanced Set-Up
Try moving Sensor to a new location or reducing sensitivity. Refer to Pre-Installation: D
or to Advanced Set-Up
Refer to Pre-Installation: B
Refer to Pre-Installation: D
Refer to Advanced Set-Up
Refer to Advanced Set-Up
Move Sensor to another location. Refer to Sensor Detection Range
Multiple Sensors may be necessary for full room coverage. Refer to Frequently Asked
Questions at www.lutron.com/occsensors
Refer to Pre-Installation: B
Try moving Sensor to a new location or reducing sensitivity. Refer to Pre-Installation: D
or to Advanced Set-Up
Refer to Pre-Installation: C
Move Sensor closer to dimming/switching device and retry test. Refer to 3: Testing
Wireless Communication
Refer to Pre-Installation: B
Refer to the instruction sheet of the dimming/switching device or call Lutron Customer
Assistance
Replace battery. Refer to Frequently Asked Questions at www.lutron.com/occsensors
Remove Sensor from test mode. Refer to 2: Testing Sensor Coverage
