Field of application:
The devices are suited only for distributing radio and television signals in the
house! If the device is used for other purposes, no warranty is given!
Equipotential bonding:
To avoid dangerous overvoltages (attention: risk of fire/death), connect the
devices to the equipotential bonding according to EN 60728-11.
Connect the outer conductor of the coaxial cable to the equipotential
bonding, use e.g. earth connection blocks CFA 7-01 at the input and output
of the amplifier.
RF Installation:
Connect the inline amplifier depending on type in one of the following ways
Between the SAT antenna and the antenna wall outlet (1 and 2).
Between the SAT antenna and the multiswich inputs (3 and 5).
Between a multiswich output and the antenna wall outlet (4).
Use a highly shielded coaxial cable with F connectors. Suited cables and
connectors can be found in the current AXING catalogue or at www.axing.
com.

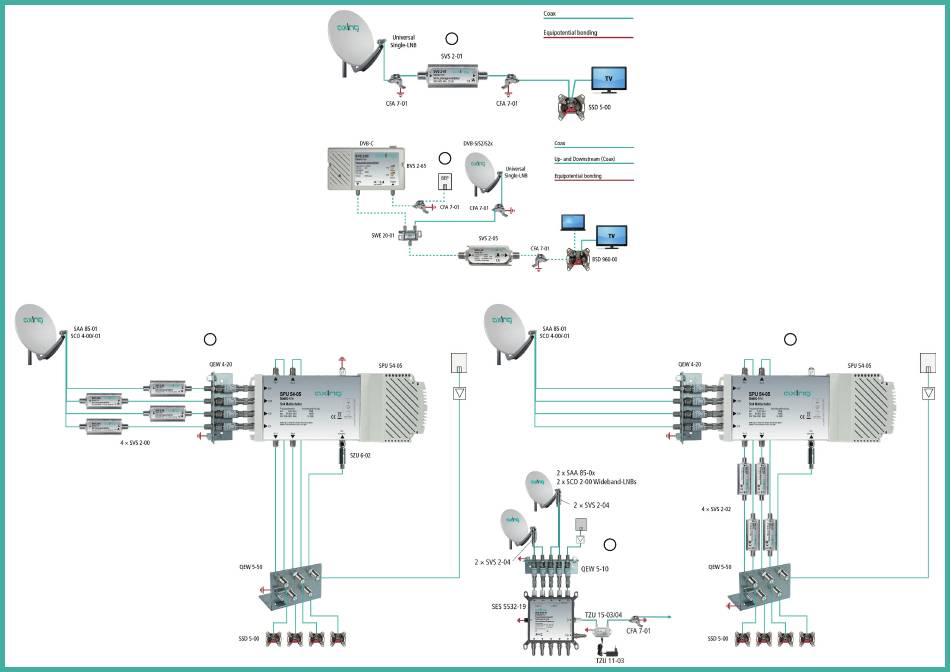

Applications with multiswitches:
Install e.g. four SVS 2-00 amplifiers between the
LNB outputs and the multiswitch inputs (3 and 5).
The SVS 2-00 amplifies the SAT-IF signals.
Install e.g. four SVS 2-02 amplifiers between mul-
tiswitch outputs and the antenna wall outlets (4).
The broadband amplifier amplifies all signals. At the
outlets you can connect SAT receivers, TV and radio
devices. Note: Terrestrial reception only, when the
SAT receiver is on.
3
1
2
5
Power supply:
The amplifiers have to be remote feed over the coaxil cable. The amplifiers
are remote feedable at input or output.
Check wether your SAT receiver or multiswitch has an integrated power
supply, which can be used, to support the amplifier.
Active components, such as LNBs, which are installed after the inline
amplfier can be remote power fed with the indicated voltage of the relevant
inline amplifier.
Check wether the power supply can supply all active components, check
the maximum nominal current of the power supply.
Ckeck also the maximum DC path of the SVS amplifier.
CATV reception:
The SAT amplifiers SVS 2-02/05 and SVS 4-00 also can amplify CATV signals.
Therefor the SAT signal and the CATV signal have to be combined with a
SAT combiner like SWE 20-01 (2).
Applications with return path:
The SVS 2-05 is suiatble for returnpath (2).
