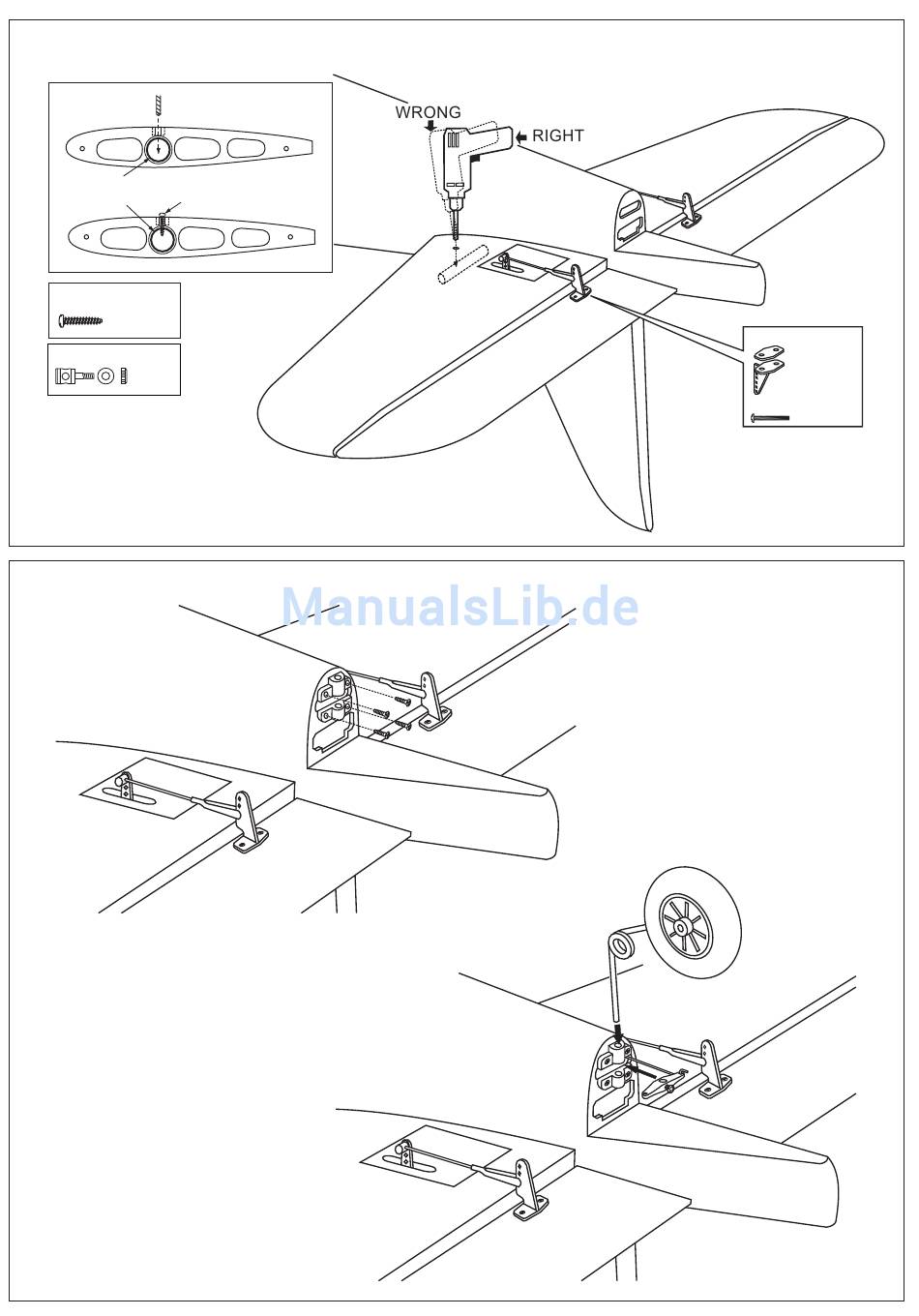

14- Horizontal stabilizer
2.mm drill bit
BOTTOM
Aluminum
3x10mm screw
tube inside
3x10mm screw
.........2
Connector
.....2
15- Tail wheel
A
B
Secure the horizontal stabilizer
in place using 3x10mm screw.
Note: Slide one end of the
tail wheel push-rod into the
tail wheel arm first.
Note: The holes on the surface of the bottom of the
horizontal stabilizer are pre-drilled at factory.
Control horn
................2
2x20mm
..........4
