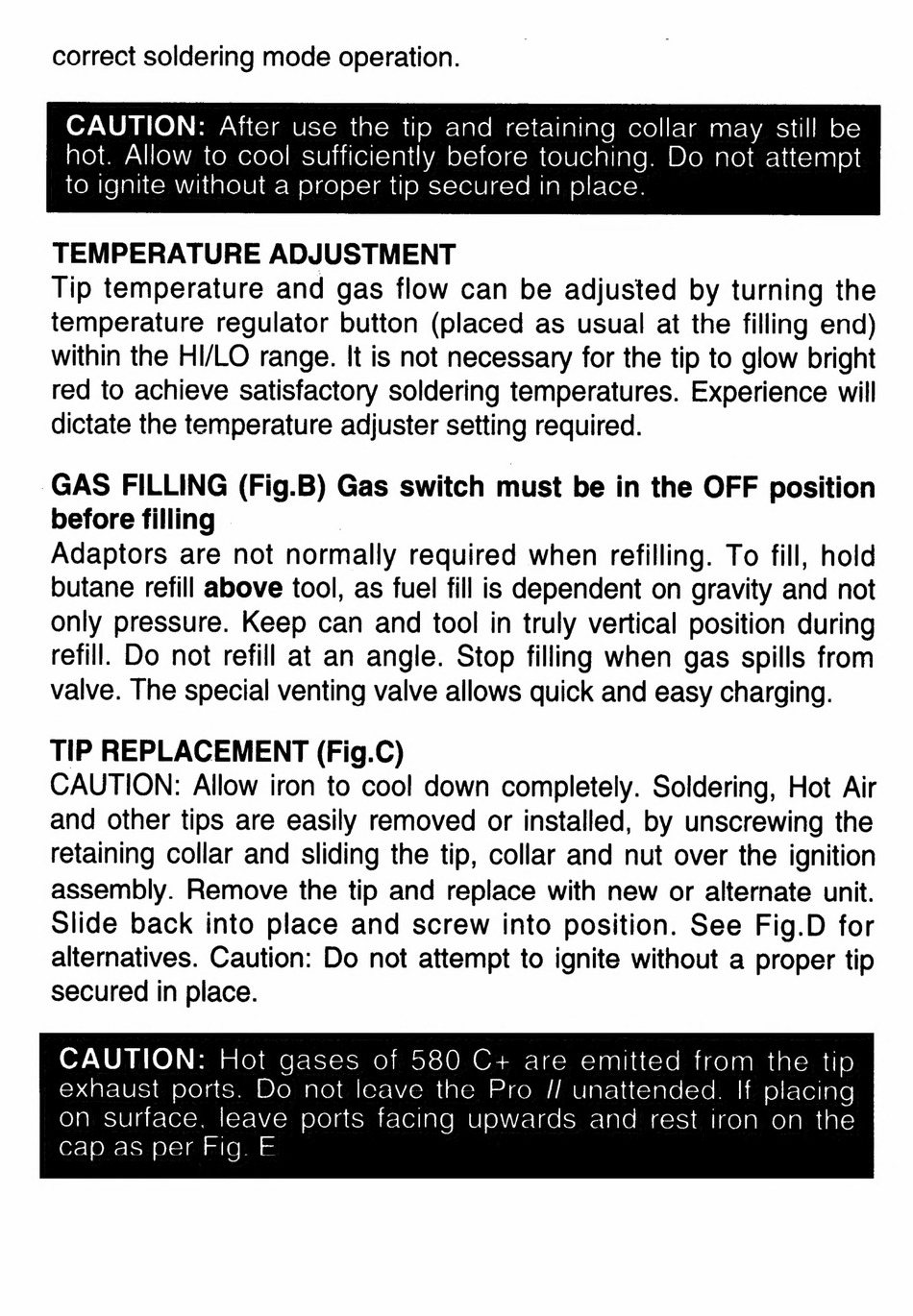

Temperature Adjustment - Portasol ProII Gebrauchsanleitung

correct soldering mode operation.
CAUTION: After use the tip and retaining collar may still be
hot. Allow to cool sufficiently before touching. Do not attempt
to ignite without a proper tip secured in place.
TEMPERATURE ADJUSTMENT
GAS FILLING (Fig.B) Gas switch must be in the OFF position
before filling
Adaptors are not normally required when refilling. To fill, hold
butane refill above tool, as fuel fill is dependent on gravity and not
only pressure. Keep can and tool in truly vertical position during
refill. Do not refill at an angle. Stop filling when gas spills from
valve. The special venting valve allows quick and easy charging.
TIP REPLACEMENT (Fig.C)
CAUTION: Allow iron to cool down completely. Soldering, Hot Air
and other tips are easily removed or installed, by unscrewing the
retaining collar and sliding the tip, collar and nut over the ignition
assembly. Remove the tip and replace with new or alternate unit.
Slide back into place and screw into position. See Fig.D for
alternatives. Caution: Do not attempt to ignite without a proper tip
secured in place.
CAUTION: Hot gases of 580 C+ are emitted from the tip
exhaust ports. Do not leave the Pro // unattended. If placing
on surface. leave ports facing upwards and rest iron on the
cap as per Fig. E
