Tele System TS 8.4 PND Kurzanleitung Seite 11

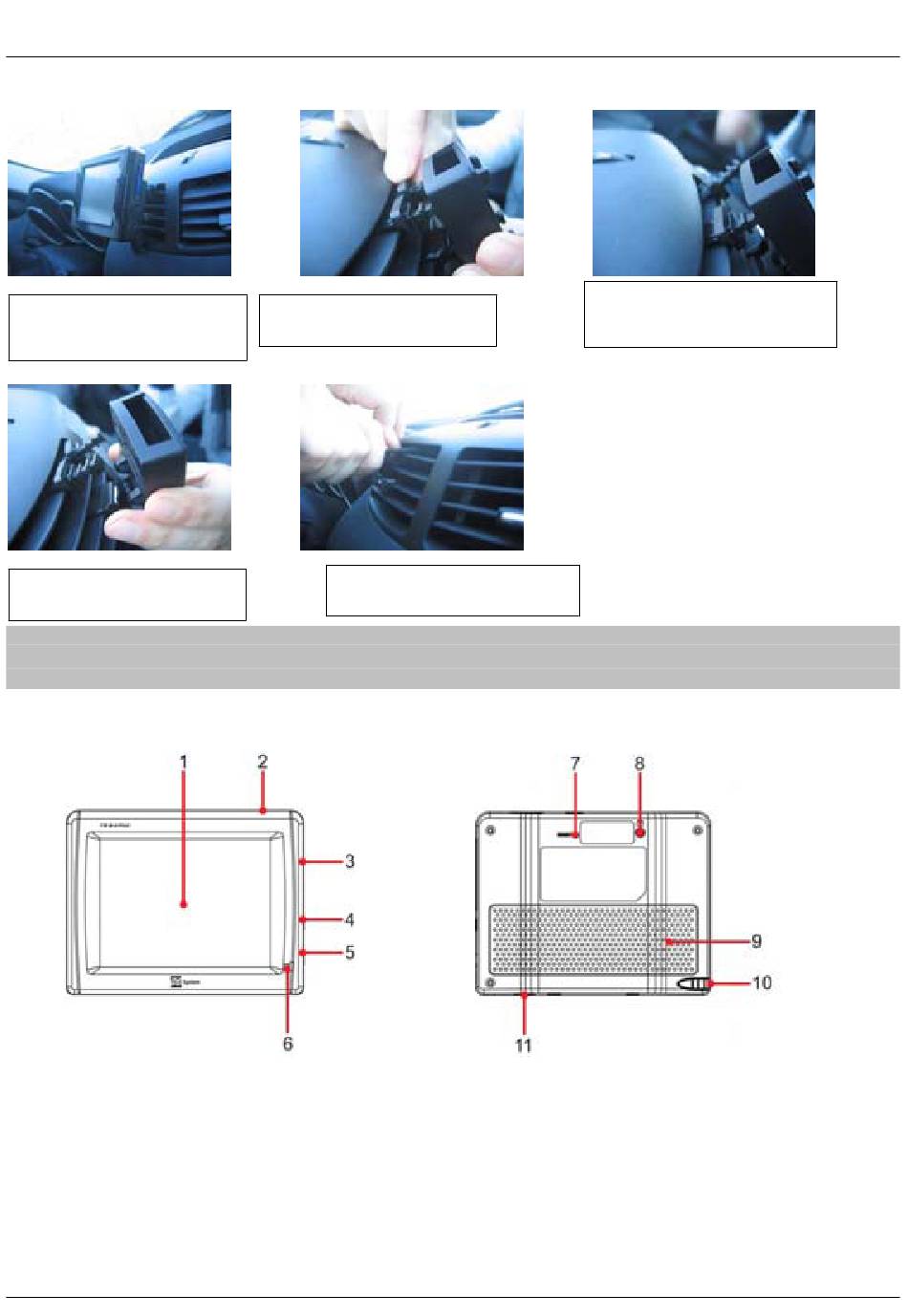

Fig. G)
Clasp your navigator TS8.4 PND with
the suitable holds of the cover
Fig. L)
Remove totally the base of the
support
WARNING!
The device had been deeply tested and again used in a normal drive. Anyway we advice to close or limit the
cold/hot air from the chosen air vent. We advice to perform the unmounting only when it is necessary.
Device description
1. LCD Panel (Touch Screen)
2. Stand by key
3. SD card slot
4. Earphone output
5. Power input DC 5V
6. LED
Fig. H)
After have removed your TS8.4 PND,
push a hook inwards of the base
Fig. M)
Remove both the hooks from the air
vent of your vehicle
Quick Start Guide - ENGLISH
Fig. I)
Remove the hook from the base of the
support and repeat the operation as fig.
H) for the other hook
7. RESET
8. External GPS module connector
9. Speaker
10. Touch screen pen
11. USB Slot
11
