IR Transmitter/Extender
Art.no 36-5768 Model BW8377EU
Please read the entire instruction manual before using the product and
then save it for future reference. We reserve the right for any errors in
text or images and any necessary changes made to technical data.
In the event of technical problems or other queries, please contact our
Customer Services.
A comprehensive user manual is available at www.tkbhome.com.
Things to consider:
• Other wireless equipment using the same frequency band can
reduce the transmission range.
• The range of all wireless equipment depends on the type of
obstacles located between the transmitter and the receiver
(e.g. a concrete wall will interfere with the signal more than
a plasterboard wall).
If you experience problems, try the following:
• Turn off any other existing wireless equipment to check whether
this is the cause of the problem.
• Reposition the wireless equipment, shorten the distance between
the transmitter and the receiver or reduce the number of obstacles
(walls, furniture, etc.) between them.
Safety
• Never subject the transmitter to high temperatures, dust, heavy
vibrations, impacts, humidity or moisture.
• Never mix old and new batteries and never mix rechargeable
batteries with non-rechargeable batteries.
• Never attempt to dismantle the transmitter; it contains no
user-serviceable parts.
Care and maintenance
• The transmitter should be cleaned by wiping it with a dry cloth.
• Whenever it is not to be used for an extended period, the batteries
should be removed from the transmitter and it should be stored in
a dry, dust-free environment, out of children's reach.
Disposal
This product should be disposed of in accordance with local regulations.
If you are unsure how to proceed, contact your local council.
GREAT BRITAIN • customer service tel: 0845 300 9799 e-mail: customerservice@clasohlson.co.uk internet: www.clasohlson.com/uk
Product description
• IR transmitter/extender for the wireless control of IR-controlled heat
pumps and air conditioning units or other IR-controlled equipment.
• Transmits the same commands as the original heat pump remote
control, once the system has been configured for this. Built-in
temperature sensor.
• The transmitter has a built-in code library so that it can be
programmed for use with several of the most common makes
and models. The transmitter can also be programmed (learn) from
existing remote controls.

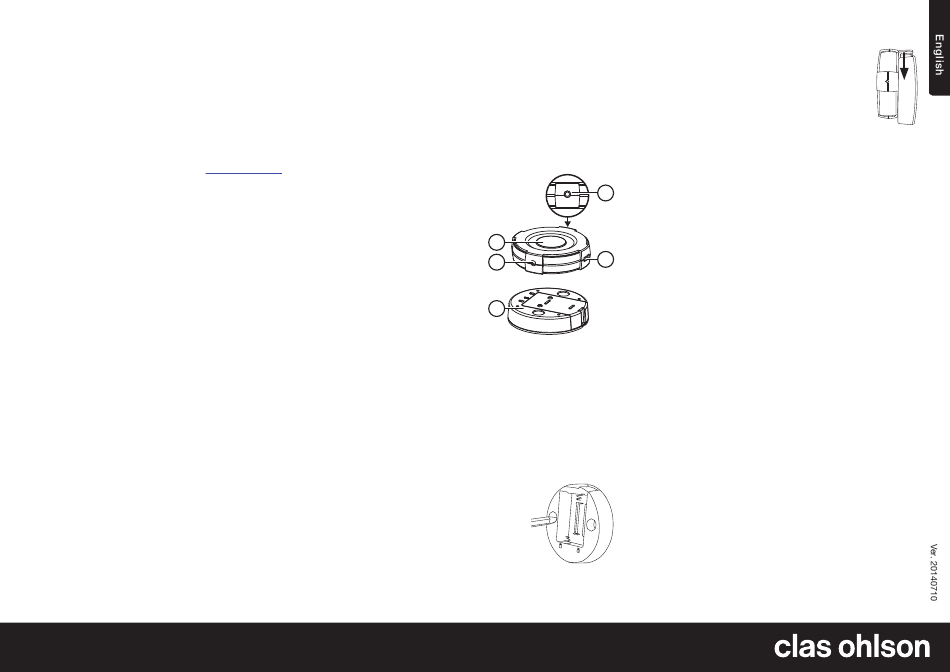

1. Programming/learning button
2. Socket for external IR transmitter
(included)
3. Battery holder
4. Temperature sensor
5. USB port for the included
USB cable 1
2
3
Mounting
Note:
• Check the construction of the wall before installation and make
sure that there are no water pipes or electrical cables where you
are thinking of drilling.
• Use suitable screws and, if necessary, wall plugs.
• Do not mount the transmitter over a kitchen worktop, humidifier or
other location in which it can be exposed to steam or smoke.
• Do not mount the transmitter in locations subject to high humidity,
high temperatures, vibrations, dust or water.
1. Use the battery holder as a template and
mark out where the holes are to be drilled.
2. Screw the battery holder to the wall and
if the transmitter is to be powered by
batteries, insert 3 AAA/LR03 batteries.
Note the polarity markings in the battery
holder to ensure correct battery insertion.
Note: Never mix old and new batteries.
Never mix rechargeable and non-
rechargeable batteries.
3. Fit the transmitter onto the battery holder and slide it
down to secure it in place.
4. If the transmitter is to be powered via a USB
cable, connect the USB cable to the USB port on
the transmitter and to the USB charger. Ensure that
the electrical socket to which the USB charger is
connected is easily accessible.
Operating instructions
Installation
Refer to the instruction manual of your main device for details of how
the transmitter is to be installed. Push the Programming/learning button
4
when required by the main device.
Setting up the transmitter for battery or USB power
Install the transmitter in your system before performing the following
settings.
5
1. Hold in the Programming/learning button for 5 seconds until
the LED indicator shines steadily (the LED indicator is in the centre
of the button, so hold your finger to the side to enable you to see it).
2. Release the button and then press it 3 times within a space of
2 seconds.
3. The LED indicator will flash twice and then go out, indicating that
the transmitter is powered by the batteries, or
The LED indicator will flash 4 times and then go out, indicating that
the transmitter is powered by the USB.
4. If necessary, steps 1 and 2 above for selecting battery or USB
power can be repeated.
External IR transmitter
The transmitter will emit commands in every direction. If you need to
direct commands towards a specific direction, connect the external IR
transmitter to the socket (2) on the transmitter and aim it at the receiver.
The external IR transmitter has a range of about 1 metre, but is also
dependent on the sensitivity of the receiver.
Factory reset
Hold in the Programming/learning button for 10 seconds.
Specifications
Frequency 868.42 MHz
7.5 m (line-of-sight)
Outdoor range
Operating temperature 0–40 ºC
Batteries 3 × AAA/LR03
Size Diam: 70 mm, depth: 34 mm
Weight 90 g (with batteries)
