Put the 2 negative wires together and crimp on a female spade connector, then
slide onto the brass pin in the diagram below, the left pin marked 20A.
Add a female spade connector to the red cable coming down from the camera
and slide it onto the pin marked DC (Camera) on the right.
Add a spade female connector to the red that connects to the power supply and
slide it onto the centre pin marked 12 volts.
PROTECTING YOUR CAMERA

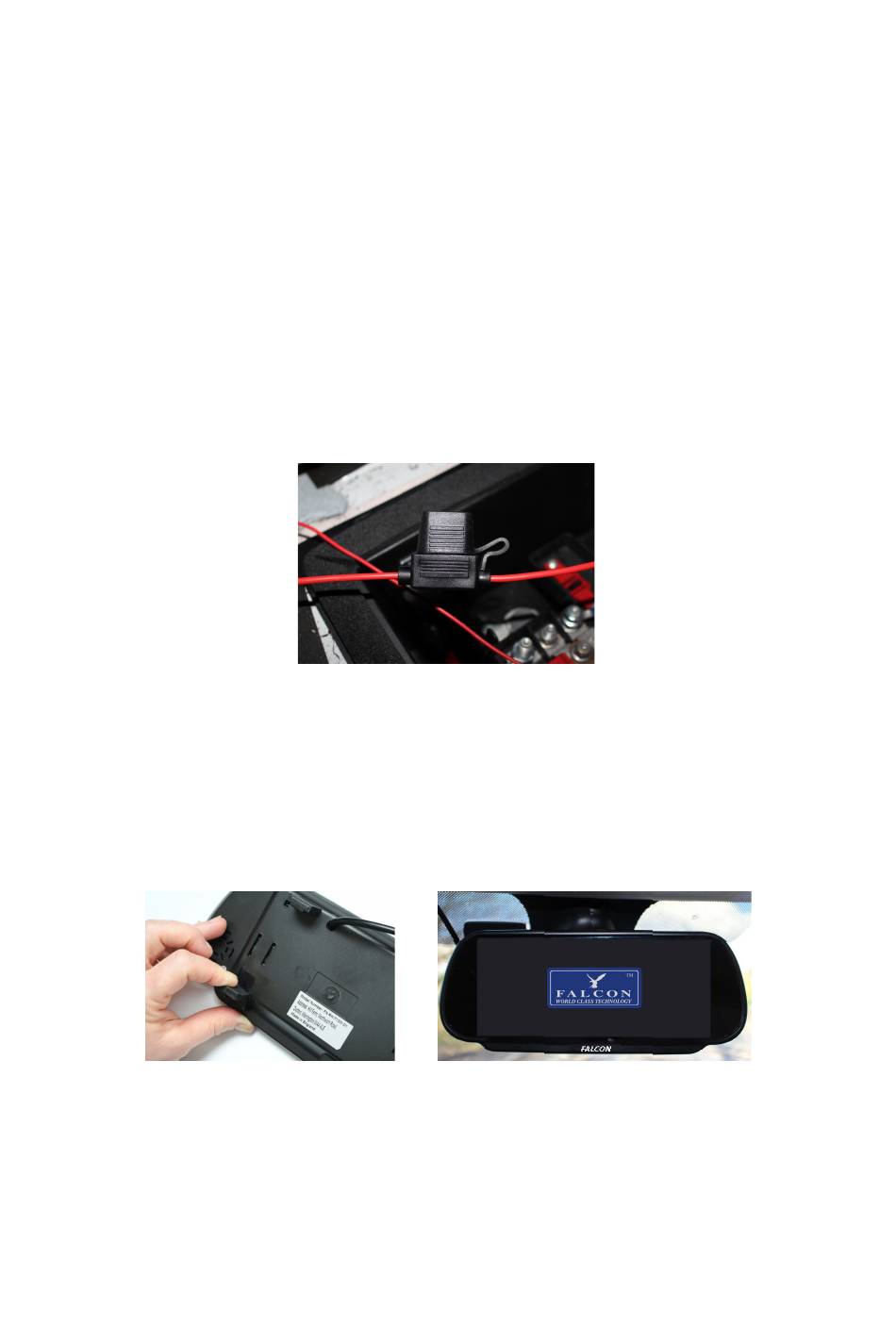

To protect your camera from over voltage, use the in-line fuse holder between
the positive of the battery and the positive input of the 12V switch.
CONNECT POWER TO THE MONITOR
Press the spring-loaded clips on the back of the monitor and hold the back of the
monitor to your rear-view mirror by placing the top clips on the top of the rear-
view mirror and releasing the spring load clips against the bottom of the mirror.
