WASP-PoE is a bridge for Bluetooth Low Energy or BLE (formally Bluetooth® Smart) and/or ANT+ devices
to communicate through a wired Ethernet network to any designed device connected to the same network.
Powered either by the voltage on the Ethernet cable (PoE support) or auxiliary 36-72V DC input. Integrating
an 8-channel BLE/ANT+ receiver with Ethernet circuitry, WASP-PoE provides a data gateway for monitoring,
recording and analyzing BLE/ANT+ data in designated network locations with lower overhead than the
standalone WASP. WASP-PoE receives data from connected BLE/ANT+ devices and forwards the data
through the Ethernet network to the end points on the Ethernet network. The WASP-PoE Application
Programmers Interface is exactly the same as for WASP, which is an open API that is used by developers
to integrate WASP-PoE into BLE/ANT+ sensor monitoring and control applications. WASP-PoE IS FOR
USE IN OFFICE ENVIRONMENT.
1
Network Requirements
To use the WASP-PoE in your Ethernet network requires the network to meet the following requirements.
1. The Ethernet network must support 100 Mb/s or 10 Mb/s communication speeds.
2. The Ethernet network must be connected to a DHCP server that manages the network addressing.
2
WASP-PoE Hardware
The WASP-PoE connects to an Ethernet network and operates at either 100 Mb/s or 10 Mb/s, the Ethernet

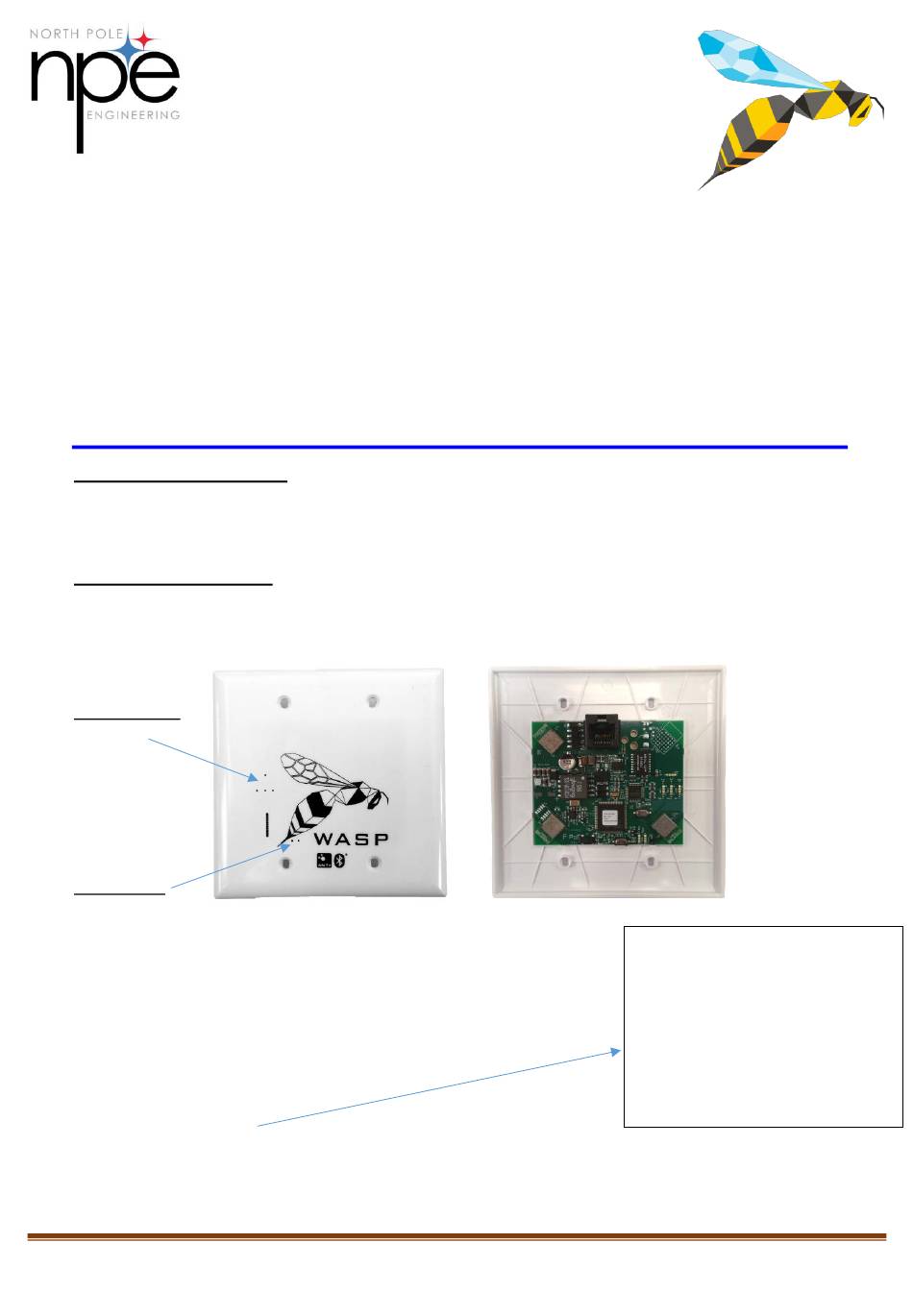

communication speed is auto-selected according to the network type. The picture below shows the WASP-
PoE indicator locations and a key describing the functions of each of the LED indicators.
Ethernet LEDs
G4
G3 G2 G1
Status LEDs
WASP-PoE Ethernet LEDs
The Ethernet indicator LEDs are green, and the operation is defined below.
G1 = Ethernet Link Good
G2 = Ethernet Link Speed (ON=100Mb/s OFF=10Mb/s)
G3 = Ethernet Link Activity
G4 = Power Indicator
WASP-PoE Status LEDs
Two LEDs indicate the operational status of the WASP-PoE. The left-side LED is orange and the right-side LED is
red. The operation of each of them is defined as:
WASP-PoE_QSG-15
WASP-PoE QUICK START GUIDE
WASP-PoE Bridge
The Red LED indicates radio reception is
working. It will toggle with each packet
received. The Orange LED should be
toggling once a second indicating the PoE
has properly acquired an IP address from
the DHCP server on the network. If the
both LEDs are out, it most likely means
the PoE has not received an IP address
from the DHCP server. In that case the
health of the network should be checked.
Page 1
Inhaltsverzeichnis
loading

Inhaltszusammenfassung für npe WASP-PoE

  • Seite 21 WASP-PoE Kurzanleitung Deutsch WASP-PoE ist eine Bridge für Bluetooth Low Energy- oder BLE- (ehemals Bluetooth® Smart) und / oder ANT + -Geräte zur Kommunikation über ein drahtgebundenes Ethernet-Netzwerk mit jedem entworfenen Gerät, das mit demselben Netzwerk verbunden ist. Stromversorgung entweder über die Spannung am Ethernet-Kabel (PoE-Unterstützung) oder über einen zusätzlichen 36-72-V-DC-Eingang.
  • Seite 22 WASP-PoE-Status-LEDs höchstwahrscheinlich, dass dem PoE eine Zwei LEDs zeigen den Betriebszustand des WASP-PoE an. Die LED auf der linken Seite ist orange und die LED IP-Adresse vom DHCP-Server fehlt. In auf der rechten Seite ist rot. Die Operation von jedem von ihnen ist definiert als: diesem Fall sollte der Zustand des Netzwerks überprüft werden.
  • Seite 23 Leistungsinjektors MUSS im Bereich 36-72V liegen. Wenn mehrere WASP-PoEs verwendet werden, benötigen Sie einen Multi-Port-Power-Switch oder mehrere Power-Injektoren, einen für jedes verwendete WASP-PoE. Im Folgenden sehen Sie ein Beispiel für einen PoE-Injektor mit einem Port, der mit dem WASP-PoE verwendet werden kann Stecken Sie Ihren Router ein Schließen Sie Ihren WASP-PoE an...
  • Seite 24: Wasp-Poe-Platzierung

    Sensorgeräte verwenden ein Radio mit sehr geringer Leistung, so dass das Signal nicht sehr weit kommt. Damit WASP-PoE einen durchschnittlichen Raum von ungefähr 20 x 20 Fuß abdecken kann, sollte es in der Mitte des Raums platziert werden, wie in der folgenden Abbildung dargestellt.
  • Seite 25 Raum effektiv in zwei Hälften, wobei jeder WASP-PoE die Hälfte des Raums abdeckt. Es ist nicht obligatorisch, aber der beste Platz für den WASP-PoE ist so hoch wie möglich an der angegebenen Position in den obigen Diagrammen. Dies bietet den besten ungehinderten Pfad für Signale von den ANT + -Geräten zum Erreichen des WASP-PoE.
  • Seite 26: Behördliche Genehmigungen

    SOLUTION - Bedingung wurde bei NPE neu erstellt. Dem WASP-PoE ist keine IP-Adresse zugewiesen. In diesem Szenario reagierte der PoE genau als Problemfall. Der DHCP-Server wurde wieder eingeschaltet, und der WASP-PoE erlangte innerhalb von 20 Sekunden eine IP-Adresse und wurde betriebsbereit, wobei sowohl die rote als auch die orangefarbene LED richtig zu blinken begannen.
  • Seite 27 Frequenzbereich: 2402-2480MHZ Maximale Ausgangsleistung: 4,2 dBm 12.2 Südafrika Dieses Gerät entspricht den ICASA-Standards in Südafrika. Dieses Gerät enthält das ICASA- Typgenehmigungszertifikat TA-2017-3382. 12.3 Japan Dieses Gerät entspricht den Normen Japan MIC (s). DiesesGerät enthält MIC Art Zertifikat Zulassungsnummern JN6049i03 (Mark Nummer 203-JN6049).
