STEP 4 – Mat on frame assembly
When attaching the springs to the trampoline mat, be careful. 2 adults required.
CAUTION: During the attachment of the springs, the frame connection points are tightening: Pinch hazard.
A.

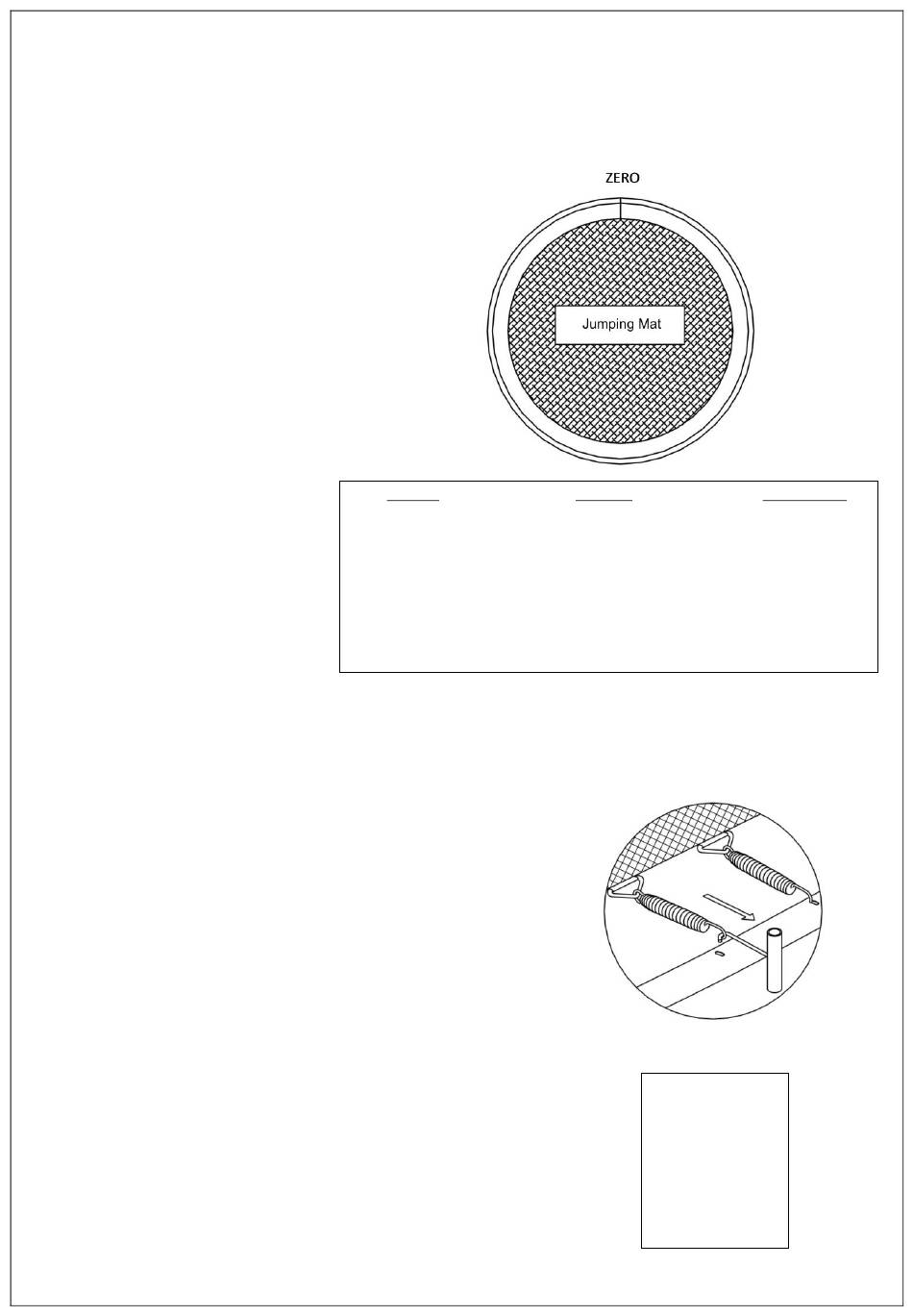

Place the jump mat in the middle of the frame
B.
In total on the trampoline, there are:
These parts are not numbered:
Follow the instructions below
C.
Select an arbitrary point on the frame (called ZERO). First, fix the spring (7) in a V-ring jump mat, hook down.
Then use the special tool to pull the spring and insert it in the hole (following picture below). Keep landmark, the point
ZERO for the next steps.
Special springs tool use
(1) Wear heavy work gloves to protect your hands.
(2) Use the special tool spring included.
(3) Hook the spring into the V ring. Align the ring, the spring and the frame hole.
(4) Pull the spring hook with the tool as shown.
Place the hook in the hole of the frame until it clicks by pressing the spring hook.
D.
Then count the frame holes following the table against
and count the same amount for the V-ring:
Hang a new spring at this point.
Springs
6 FT 36
JOU076 48
JOU077 60
JOU078 72
13 FT 80
JOU079 88
9
V Rings
6 FT 36
JOU076 48
JOU077 60
JOU078 72
13 FT 80
JOU079 88
6 FT
JOU076
JOU077
JOU078
13 FT
JOU079
Frame holes
6 FT 36
JOU076 48
JOU077 60
JOU078 72
13 FT 80
JOU079 88
9
12
15
18
20
22
