Since this instruction sheet covers only a minimal amount of information necessary to maintain and operate your
machine, we suggest that you keep this material with your Operator's Manual so that both may be referred to for
instructions concerning safe operation and proper maintenance procedures.

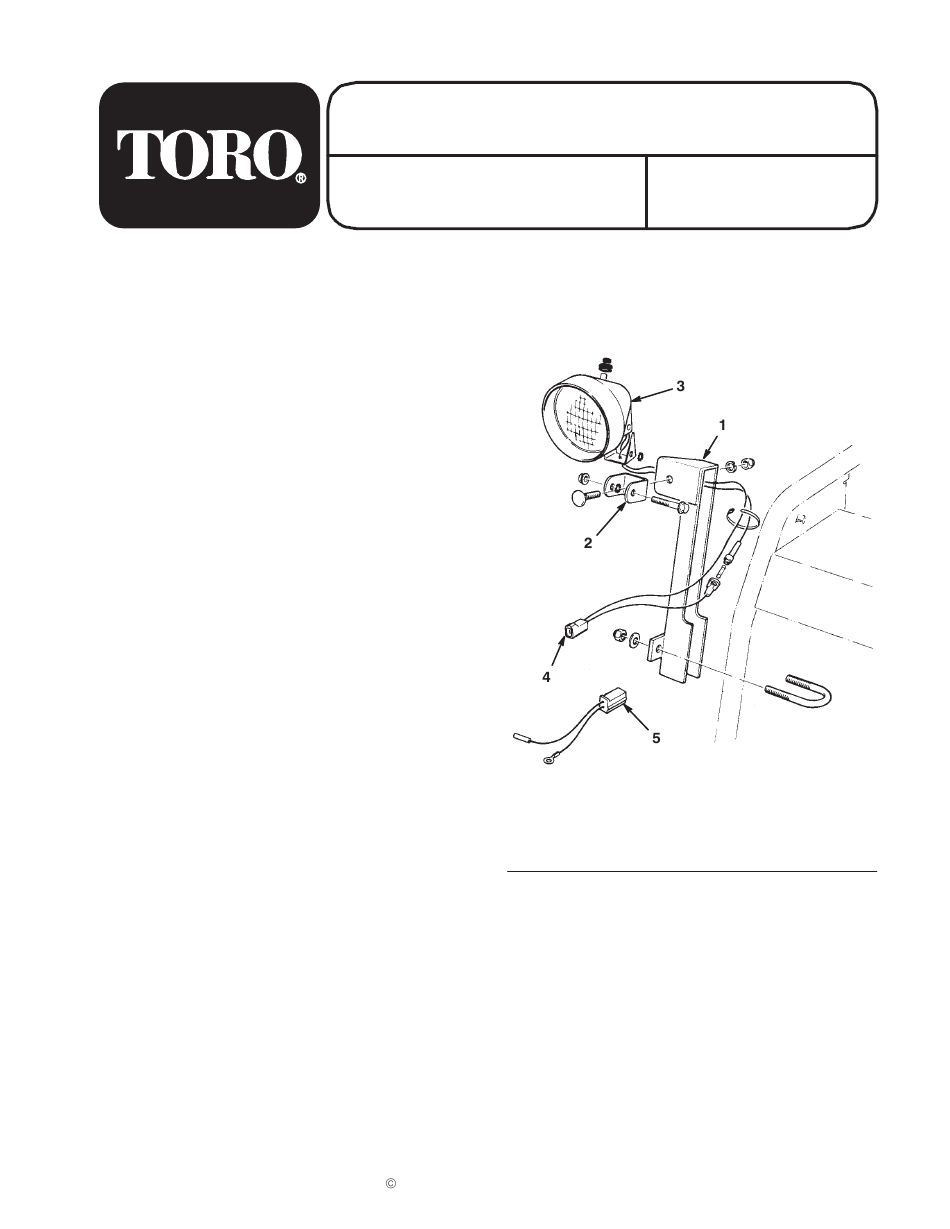

Install Lamp Assembly (Fig. 1)
1.
Make sure engine is stopped and key is removed
from ignition switch.
2.
Using U-bolt, washers and nuts supplied in kit,
loosely secure lamp mount to handle as shown in
Fig. 1.
3.
Route wires and fuse holder inside channel and
through U-bolt.
4.
Secure U-bracket to lamp mount with a carriage
bolt, lockwasher and nut. Do not overtighten nut
or lamp adjustment will be affected.
5.
Secure lamp assembly bracket to U-bracket with
flange head screw, (2) lockwashers and a flange
locknut. Place a washer on each side between the
U-bracket and lamp bracket. Do not overtighten.
6.
Connect short jumper wire to lamp wire
assembly.
7.
At right side of engine, plug jumper wire with
connector into engine wire.
8.
Secure ring terminal end of jumper wire to
engine block, chassis or handle.
9.
Tighten all fasteners.
10. Make sure wire harness does not interfere with
operation of control levers or cables.
LIGHT KIT
PART NO. 66–7941
1. Lamp mount
2. U-bracket
3. Lamp assembly
The Toro Company – 1994
All Rights Reserved
FORM NO. 3316–833 EN
INSTALLATION
INSTRUCTIONS
Figure 1
4. Lamp wire assembly
5. Jumper wire
1541
