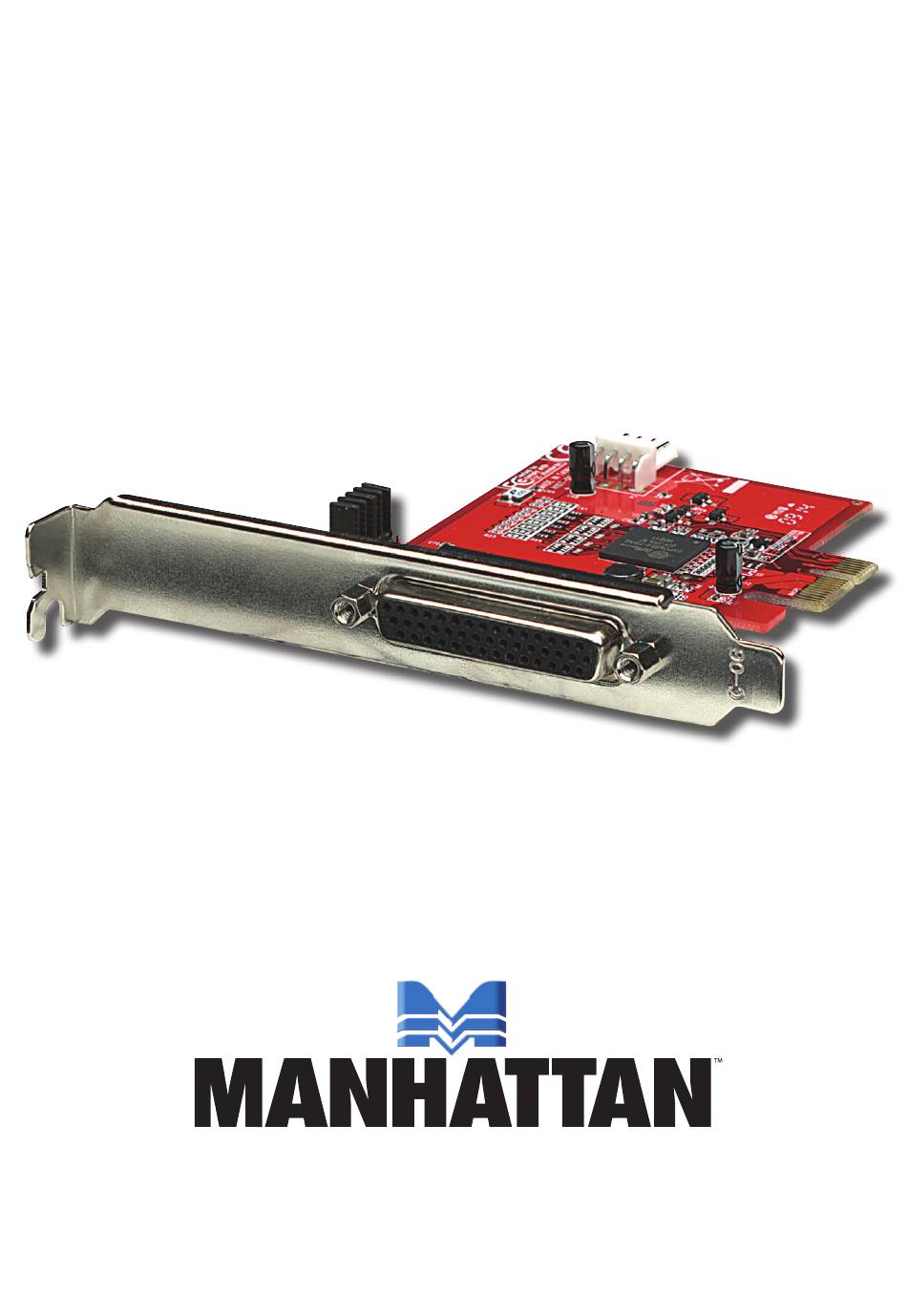

- Seite 1 Serial PCi exPreSS Card with 5 V Power outPut uSer manual Model 150682 MAN-150682-UM-0510-01...
- Seite 2 ® Power output, Model 150682. Compatible with most RS232 peripherals, the MANHATTAN Serial PCI express Card with 3.3 V and 5 V Power output includes an adapter that can attach up to four independent serial devices — modems, barcode scanners, printers and more —...
- Seite 3 inStallation 1. Power off the system. Insert the PCIe Card into an available PCIe slot. 2. Power up the system, and insert the driver Cd into your Cd-RoM/dVd drive. 3. When Windows displays the Found New Hardware Wizard, click “Next.” 4.
- Seite 4 Setting the frequenCy After the driver installation (above), the data rate frequency needs to be set for proper operation. 1. Right-click “PCI Communications Port (COM3)” and select “Properties.” 2. Click on the “Data Rate” tab. 3. In the Input Clock panel, select “14.745 MHz” from the “Crystal Frequency (MHz)” drop-down menu, or click “Detect Crystal Frequency”...
- Seite 5 SPeCifiCationS Standards and Certifications • CE • FCC • RoHS • WEEE General • (4) DB9 male ports • Up to 460 kbps throughput (230 kbps effective rate) • OxFord chipset • 3.3 V and 5 V operation • 256-byte transmit/receive FIFO •...
- Seite 6 WASTE ELECTRICAL & ELECTRONIC EQUIPMENT Disposal of Electric and Electronic Equipment (applicable in the European Union and other European countries with separate collection systems) ENGLISH This symbol on the product or its packaging indicates that this product shall not be treated as household waste.
- Seite 7 ITAlIANo Questo simbolo sui prodotto o sulla relativa confezione indica che il prodotto non va trattato come un rifiuto domestico. In ottemperanza alla Direttiva UE 2002/96/EC sui rifiuti di apparecchiature elettriche ed elettroniche (RAEEI), questa prodotto elettrico non deve essere smaltito come rifiuto municipale misto. Si prega di smaltire il prodotto riportandolo al punto vendita o al punto di raccolta municipale locale per un opportuno riciclaggio.
- Seite 8 ITAlIANo: Per informazioni sulla garanzia, accedere a www.manhattan-products.com/ warranty. eN MéXICO: Poliza de Garantia MANHATTAN — Datos del importador y responsable ante el consumidor IC Intracom México, S.A. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlan Izcalli, Estado de México, C.P. 54730, México. •...
