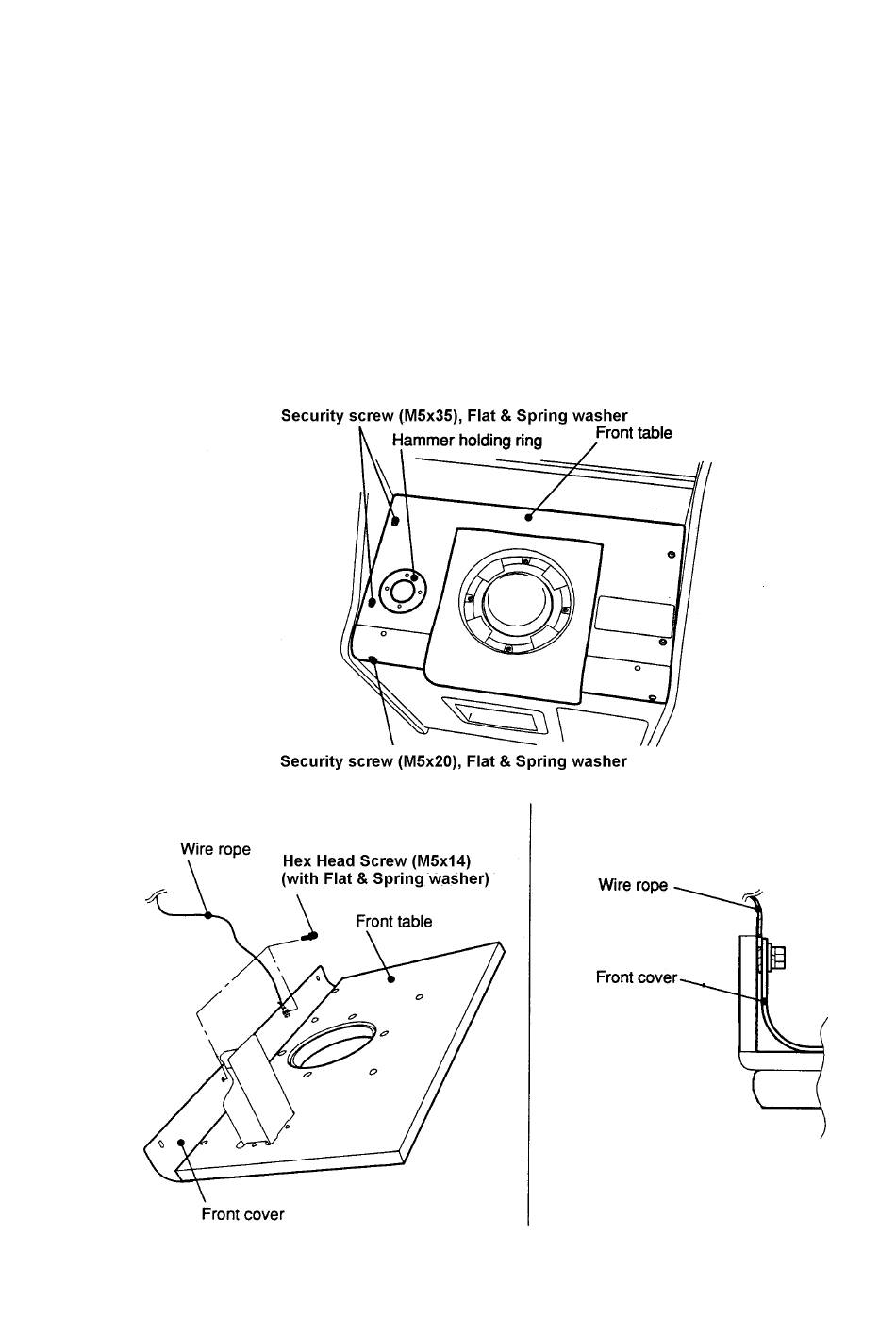

7-5 Replacing the Wire Rope

1. Remove the 2 security screws (M5x20) and 4 security screws (M5x35)
(complete with flat and spring washers), holding the front table in place,
and remove the front table.
2. Remove the 2 Hex head screws (M5x14) retaining the old wire rope in
place on the rear of the front table, and install the new wire rope between
the front cushion and the front cover.
3. Refit the front table with the 2 security screws (M5x20) and 4 security
screws (M5x35) complete with the flat and spring washers.
Ensure that there is a uniform gap between the target and bezel.
Page 43
