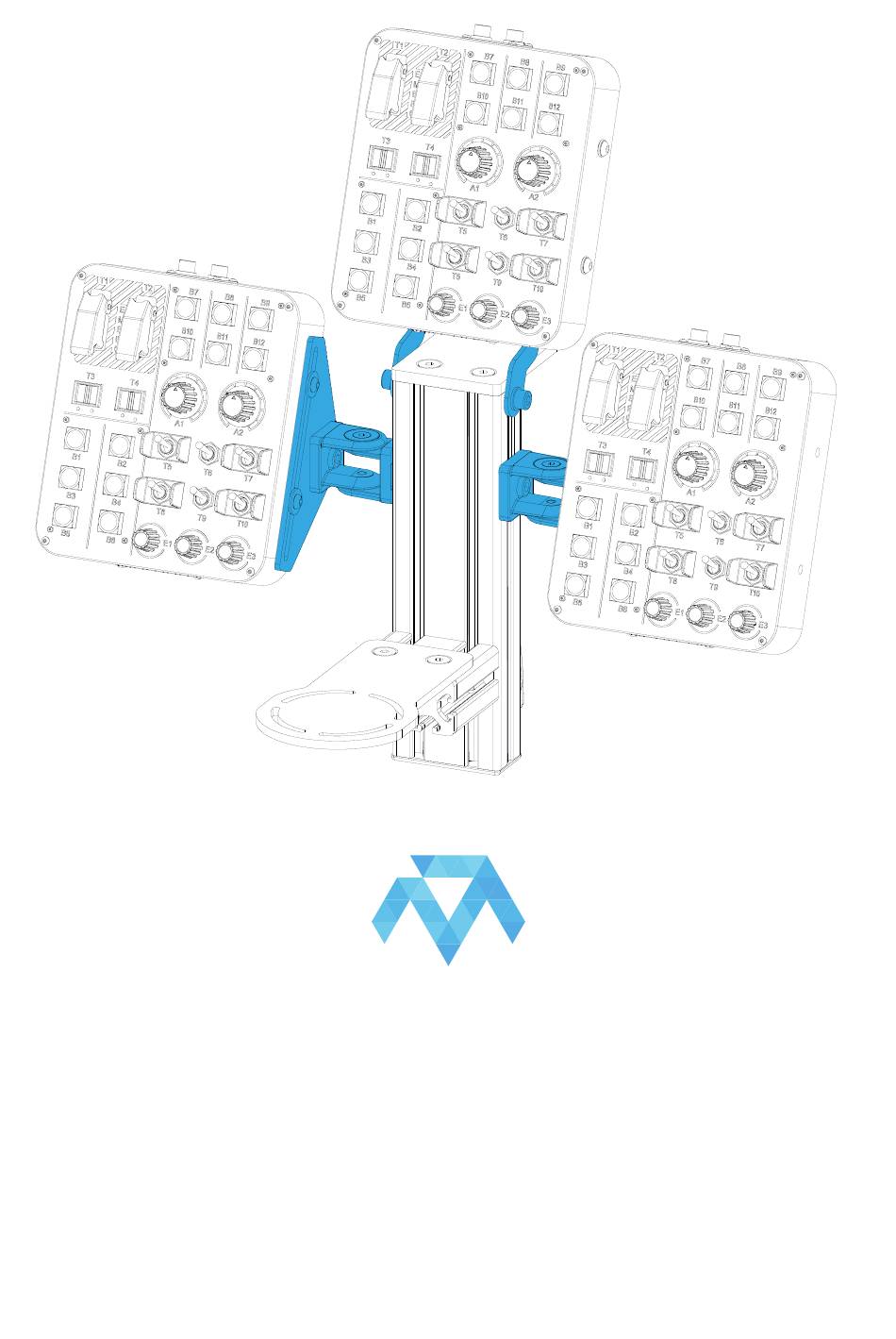

- Seite 1 VPC CONTROL PANEL MOUNT Instruction Manual Bedienungsanleitung Mode d‘emploi...
- Seite 2 GENERAL ASSEMBLY INFO AND HOW TO PROFILE NUT HEX KEY SET WITH BALL HEAD + EXTENSION OR SIMILAR REQUIRED MTSIM VPC CONTROL PANEL MOUNT INSTRUCTION MANUAL...
- Seite 3 UNIVERSAL CONNECTOR M8x30 Ø8mm Nut M8 BOLT DIMENSIONS AND HOW TO MEASURE THEM [mm] M8x35 M8x25 MTSIM VPC CONTROL PANEL MOUNT INSTRUCTION MANUAL...
- Seite 4 PROFILE CAP ASSEMBLY MTSIM VPC CONTROL PANEL MOUNT INSTRUCTION MANUAL...
- Seite 5 PARTS FOR CENTER MOUNT [dimensions in mm / different scales] black Ø5,5 PARTS FOR SIDE MOUNT locknut selbstsichernd plastic MTSIM VPC CONTROL PANEL MOUNT INSTRUCTION MANUAL...
- Seite 6 CENTER ASSEMBLY washer Ø18 M6x8 center bracket MTSIM VPC CONTROL PANEL MOUNT INSTRUCTION MANUAL...
- Seite 7 Ø15 M5x16 MTSIM VPC CONTROL PANEL MOUNT INSTRUCTION MANUAL...
- Seite 8 MTSIM VPC CONTROL PANEL MOUNT INSTRUCTION MANUAL...
- Seite 9 M8x14 black washer Ø16 black washer Ø16 M8x14 black black MTSIM VPC CONTROL PANEL MOUNT INSTRUCTION MANUAL...
- Seite 10 ASSEMBLY FOR SIDE MOUNT Remove the feets and keep the bolts. washer Ø12 plastic black MTSIM VPC CONTROL PANEL MOUNT INSTRUCTION MANUAL...
- Seite 11 Hold up the M8x18 bolt with the hex key while tighten the locknut with the wrench (or reverse). Its perfect tighten if you still can angle your mounted device but it is tight enough not to move unintentional. MTSIM VPC CONTROL PANEL MOUNT INSTRUCTION MANUAL...
- Seite 12 2 rotation blockers insert slot nut first choose height position as you like M8x16 MTSIM VPC CONTROL PANEL MOUNT INSTRUCTION MANUAL...
- Seite 13 14-09-2023...
-
Seite 14: Warning Notices
WARNING NOTICES CAUTION! Do not clamp your fingers while attaching the table mount. CAUTION! Check before usage if all screws are tightened. CAUTION! Check before usage that the mounting plate is screwed on tight after making height adjustments. DANGER: Contains small parts not suitable for children under 3 years. Only suitable for children over 12 years and adults.
