4

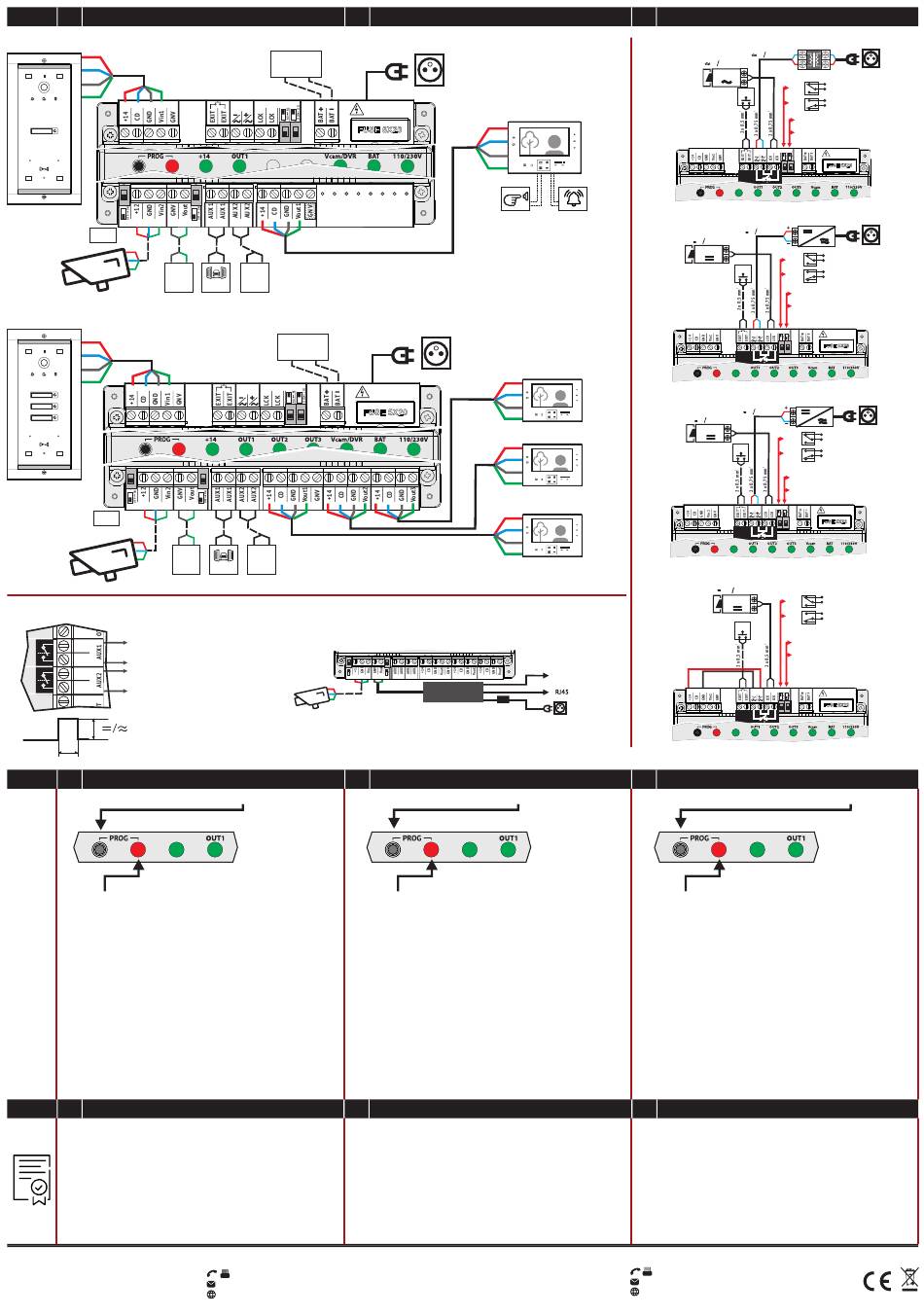

Schaltpläne
DE
1 Family
+14
Central unit
C/D
SCU.VDR03.BLG14
GND
Vout
VIDEO DOOR PANEL
Name 1
Outdoor panel
DVR
OTHER VIDEO CAMERA
SCU
Vcam
DVR
2, 3 Families
+14
Central unit
C/D
SCU.VDR03.BLG34
GND
Vout
VIDEO DOOR PANEL
Name 3
Name 2
Name 1
Outdoor panel
OTHER VIDEO CAMERA
SCU
Vcam
DVR
Connection of auxiliary installations
Vin2
AUX 1
to the 1st additional installation
NO
AUX 1
AUX 2
to the 2nd additional installation
NO
AUX 2
+BAT
(
)12/24V/0,5A
2 sec.
5
Systemprogrammiermodus
DE
Programmiermodus: Langes Drücken (3 Sek.) des PROG. Taste.
+14
Die rote LED PROG leuchtet während der gesamten Programmierphase auf und
bleibt eingeschaltet.
Sie können programmieren:
1) Die Adresse der Inneneinheit (Wohnungsnummer). Die Programmierung kann
gemäß dem Verfahren aus der Handbuch der Audio-Video-Inneneinheiten
erfolgen. Alle Inneneinheiten sind ab Werk mit Adresse 0001 programmiert.
2) Die Adresse der Außeneinheiten (2, 3 or 4), wenn ein Gebäude mehrere
Eingänge hat. Die Programmierung kann gemäß dem Verfahren aus der Handbuch
der Außeneinheiten erfolgen. Alle Außeneinheiten sind ab Werk mit Adresse 1
programmiert.
3) Das Speichern / Löschen / Hinzufügen der RFID-Zugangs-
KARTEN (gemäß dem Verfahren aus der Handbuch der Außeneinheiten).
Der Programmiermodus wird durch kurzes Drücken der PROG Taste verlassen.
Die rote PROG-LED erlischt.
6
Garantie
DE
1. Anhand des Kaufdokuments wird gemäß den geltenden Rechtsvorschriften eine
Garantie von 24 Monaten gewährt.
2. Für Fehler und / oder versteckte Mängel wird eine Garantie gewährt.
3. Die Garantie wird NICHT gewährt für: falsche, dem vorliegenden
Bedienerhandbuch nicht entsprechende Installation und/ oder Verwendung;
zerbrochenes Glas, Schläge, mechanische Stöße; Diebstahl, Feuer,
Überschwemmungen, Naturkatastrophen; ungeschütztes Produkt bei
Renovierungsarbeiten; die RFID-Zugangskarten (Tags), die als
Verbrauchsmaterialien gelten.
MADE in EU by:
ELECTRA s.r.l
Parc Industrial Miroslava
Str. Principala 33, 707307, Jud. Iași - RO
EN
BAT
+ -
12V/max.12Ah
LOCK
DOOR LOCK
BAT
SUPPLY
+14
AUX1
AUX2
OUT1
OUT2
AUX1
AUX2
BAT
+ -
12V/max.12Ah
LOCK
DOOR LOCK
BAT
SUPPLY
+14
DVR
AUX1
AUX2
OUT1
OUT2
AUX1
AUX2
Connection of Digital Video Recorder (DVR)
OTHER VIDEO CAMERA
Vcam
EN
Programming mode: long press (3 sec.) of the PROG. button.
The PROG red LED turns on and remains on during the entire programming
phase.
You can program:
1) The address of the terminal (housing number).
The programming is done following the procedure in the audio-video terminals
manual. All terminals are programmed from the factory with Address 0001.
2) The address of outdoor panels (2, 3 or 4), when the system has additional
outdoor panels. The programming is done following the procedure in the
video panels manual. All panels are programmed in the factory with Address 1.
3) The storage/deletion/addition of the RFID access CARDS
(according to the procedure in the video panels manual).
Exiting programming mode is done by short pressing the PROG. button.
The PROG red LED turns off.
EN
1. A 24-month warranty is granted, according to the existing legislation, based
on the purchase document.
2. Warranty is granted for non-conformity and/or hidden defects.
3. Warranty is NOT granted for: incorrect installation and/ or operation,
non-compliant with this manual; broken glass, blows, mechanical shocks;
theft, fire, floods, natural disasters; unprotected products during renovation
activities; the RFID access cards (tags), which are considered consumables.
+40 232 214.370
sales@electra.ro
www.electra.ro
Connection diagrams
GROUNDED OUTLET
110/230Va.c.
50/60Hz
FUSE - T1.6A
AC. 110/230V
+14
C/D
GND
Vout
DOORBELL
Fam. 1
(address 1)
OUT3
GROUNDED OUTLET
110/230Va.c.
50/60Hz
+14
FUSE - T1.6A
C/D
AC. 110/230V
GND
Vout
Fam. 3 (address 3)
+14
C/D
GND
Vout
Fam. 2 (address 2)
OUT3
+14
C/D
GND
Vout
Fam. 1 (address 1)
DVR
AUX1
AUX2
OUT1
OUT2
OUT3
DVR
Power Supply
12V
System programming mode
+14
Warranty
SUPPORT
ELECTRA Building Communications GmbH
Gadnergasse 71, Stockwerk 1, Büro Top 132
1110 Wien - AT
Schémas de connexion
FR
Separate powered AC lock (max. 3A)
12 24V, max. 3A
Lock
LCK
VIDEO DOOR PANEL
GONG
Separate powered impulse control DC lock (max. 3A)
12 24V, max.3A
LOCK
LCK
VIDEO DOOR PANEL
Separate powered DC lock (max. 3A)
12 24V, max.3A
LOCK
LCK
VIDEO DOOR PANEL
Internal powered DC lock in the +14/ GND terminals
12V 0.6A max.
LCK
Display
VIDEO DOOR PANEL
110/230Va.c.
50/60Hz
Mode de programmation du système
FR
Mode de programmation: appui long (3 sec.) sur le bouton PROG.
La LED PROG s'allume en rouge et reste allumée tout au long de la
programmation.
Vous pouvez programmer:
1) L'adresse du terminal (numéro du logement).
La programmation se fait selon la procédure du manuel des terminaux
audio-vidéo Touch Line. Tous les terminaux sont programmés dans la
fabrique avec l'Adresse 0001.
2) L'adresse du panneau extérieur (2, 3 ou 4), lorsque l'installation comporte
plusieurs panneaux. La programmation se fera selon la procédure du manuel
des panneaux extérieurs. Tous les panneaux sont programmés dans la fabrique
avec l'Adresse 1.
3) Stockage/suppression/ajout de CARTES d'accès RFID
(selon la procédure du manuel du panneau extérieur).
La sortie du mode de programmation se fait en appuyant brièvement sur la
touche PROG. La LED rouge PROG s' é teint.
Garantie
FR
1. Une garantie de 24 mois est accordée conformément à la législation en
vigueur, sur la base du document d'achat.
2. La garantie s'applique en cas de non-conformités et / ou de défauts cachés.
3. La garantie N'EST PAS accordée pour: installation et/ ou fonctionnement
incorrects, non conformes à ce manuel ; verre brisé, coups, chocs mécaniques ;
vol, incendie, inondations, catastrophes naturelles ; produits non protégés
lors des activités de rénovation ; les cartes d'accès RFID (tags), qui sont des
consommables.
+43 1 810 20 99
support@bellcome.com
www.bellcome.com
12 24V, max. 3A
Transformer
GROUNDED OUTLET
LCK
110/230Va.c.
NC -
LCK
EXIT
50/60Hz
NO -
LCK
LCK
2 sek.
10 sek.
LOCK
DOOR LOCK
BAT
FUSE - T1.6A
SUPPLY
AC. 110/230V
+14
12 24V, max.3A
GROUNDED OUTLET
LCK
NC -
110/230Va.c.
LCK
50/60Hz
EXIT
LCK
NO -
LCK
2 sek.
10 sek.
LOCK
DOOR LOCK
BAT
FUSE - T1.6A
SUPPLY
AC. 110/230V
+14
12 24V, max.3A
LCK
GROUNDED OUTLET
NC -
LCK
110/230Va.c.
EXIT
50/60Hz
LCK
NO -
LCK
2 sek.
10 sek.
LOCK
DOOR LOCK
BAT
FUSE - T1.6A
SUPPLY
AC. 110/230V
+14
LCK
Lock
NC -
LCK
LCK
NO -
LCK
EXIT
2 sek.
10 sek.
LOCK
DOOR LOCK
BAT
FUSE - T1.6A
SUPPLY
AC. 110/230V
+14
+14
06.2023 INS.SCU.VDR03.BLG34
