Socket Strip item no. 2269140
This power strip has surge protection. The surge protection is ready when the green warning
light shines.
If the green warning light does not shine, the surge protection has tripped. In this case, the
socket strip may still be used, but surge protection is no longer provided.
In case of overtemperature, an integrated temperature fuse is triggered; the sockets are swit-
ched off. Switch off the main switch of the socket strip (switch position „O") and eliminate the
cause of the overload. Then wait at least 5 - 10 minutes to allow the socket strip to cool down,
then press the red reset button briefly.
Socket outlet cube item no. 2269266
This cube-shaped socket strip is very space-saving. A mounting bracket is included in the
scope of delivery, which makes it possible to mount it e.g. on a table. Fasten the holding bracket
to the table using suitable screws (not possible with glass/metal surfaces, in this case Velcro
tape or double-sided adhesive tape should be used). Then the socket strip can be plugged
onto the holding bracket.
Socket strips with USB charging ports
Some of the socket strips (see chapter „Technical Data") have USB charging ports. Suitable
devices (e.g. smartphones) can be charged via these ports.
Item no. 2269128
The fast charge port (blue USB-A socket) provides an output power of up to 18 W. The out-
put voltage is automatically set on this port depending on the connected device (possible is
12 V/1.5 A, 9 V/2 A, 5 V/3 A). If your device does not support this, the port automatically provi-
des the usual USB voltage of 5 V/DC.
A combined output current of 2.1 A (10.5 W) is available at the other two USB A sockets; the
USB-C charging port supplies 5 V/3 A (15 W).
®
The total output power of all connectors is 24 W.
Item no. 2269131, 2269138, 2269139, 2269140, 2269266
The combined total output current is max. 2.4 A (12 W)

Maintenance and Care

• The product is maintenance-free for you. The product contains no parts that require servi-
cing. Therefore, do not open/dismantle it. Maintenance or repair may only be performed by
qualified personnel or a specialised repair shop.
• Before cleaning the socket strip, first disconnect all loads. Then unplug the socket strip from
the mains socket (wall socket).
• Use a clean, dry and soft cloth for cleaning.
• Dust can easily be removed using a clean, soft, long-bristled brush and a vacuum cleaner.
Do not use abrasive cleaning agents, cleaning alcohol or other chemical solutions
since these could damage the housing or even impair operation.
Disposal
This symbol must appear on any electrical and electronic equipment placed on the
EU market. This symbol indicates that this device should not be disposed of as
unsorted municipal waste at the end of its service life.
Owners of WEEE (Waste from Electrical and Electronic Equipment) shall dispose
of it separately from unsorted municipal waste. Spent batteries and accumulators,
which are not enclosed by the WEEE, as well as lamps that can be removed from
the WEEE in a non-destructive manner, must be removed by end users from the
WEEE in a non-destructive manner before it is handed over to a collection point.
Distributors of electrical and electronic equipment are legally obliged to provide free take-back
of waste. Conrad provides the following return options free of charge (more details on our
website):
• in our Conrad offices
• at the Conrad collection points
• at the collection points of public waste management authorities or the collection points set up
by manufacturers or distributors within the meaning of the ElektroG
End users are responsible for deleting personal data from the WEEE to be disposed of.
It should be noted that different obligations about the return or recycling of WEEE may apply
in countries outside of Germany.lfil your statutory obligations and contribute to environmental
protection.

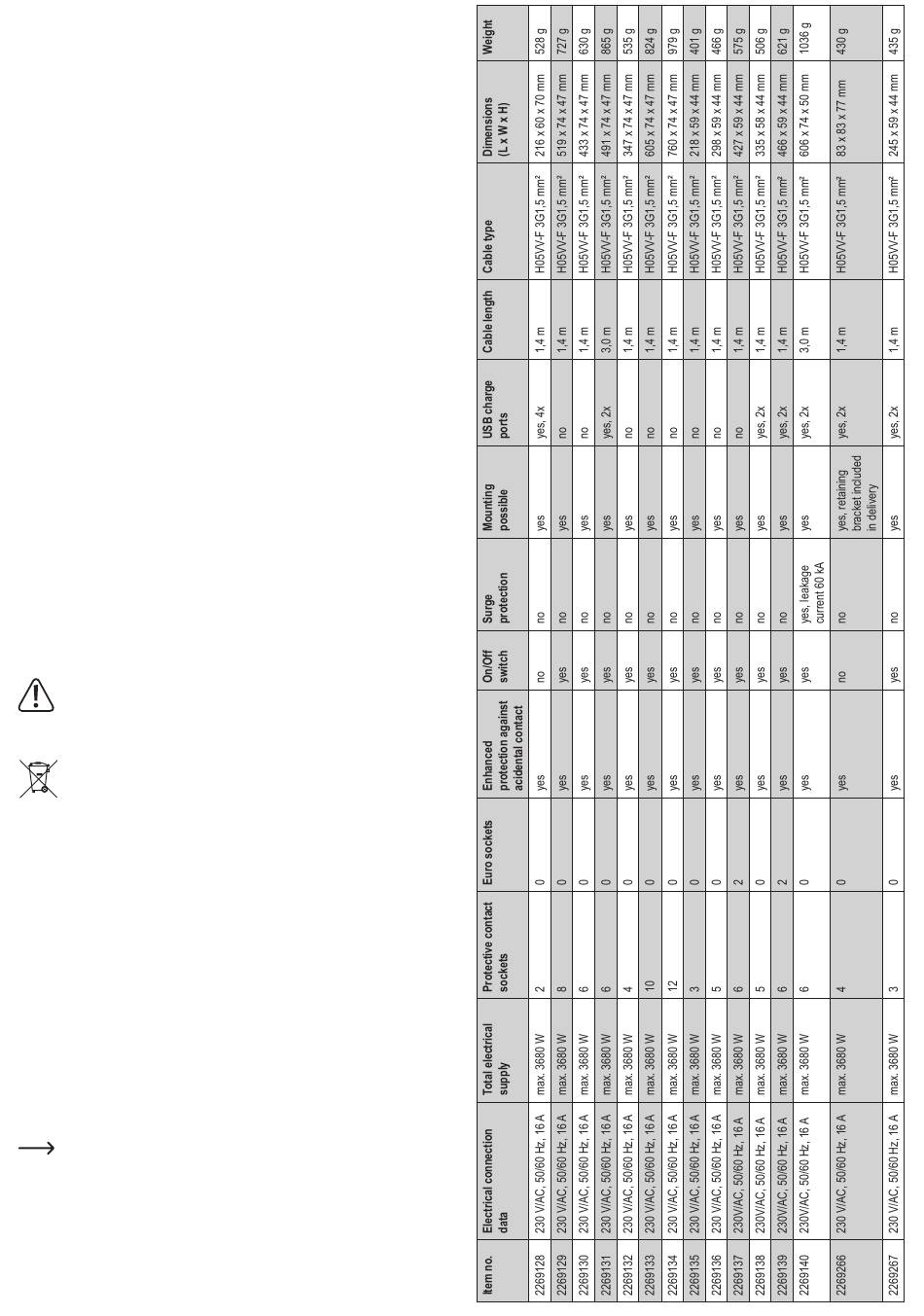

Technical Data

Ambient temperature .................... -5 °C to +40 °C
Ambient humidity .......................... <85% (relative, non condensing)
Other data see table.
