Outdoor doorbell instruction

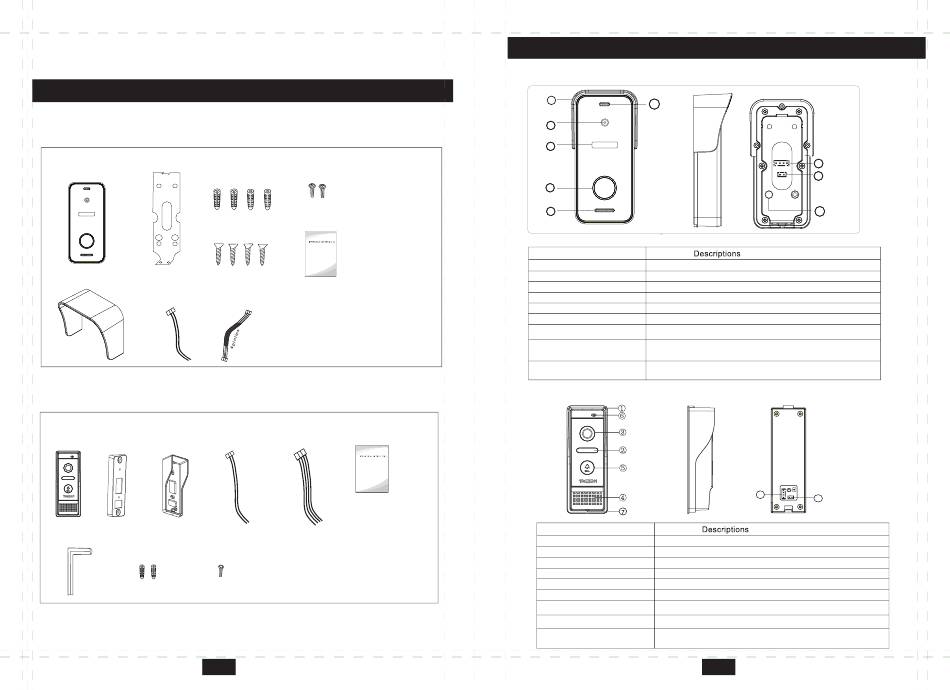

Package Contents(Please check actual model)
Model: MZ-VDP-NA200
Outdoor
Bracket
Screw anchors
doorbell
Wall screws
4P plastic
Waterproof cover
2P plastic
conductor
conductor
(1)
Model: MZ-VDP-NE120
2P plastic
Angle Waterproof
Outdoor
conductor
bracket cover
doorbell
(optional) (optional)
Hex wrench
Screw anchors Affixation screw
(2) (1)
GB-7
Screws (2)
(4)
User Manual
(4)
Outdoor Camera
User Manual
(1)
4P plastic
User manual
conductor
(1)
(1)
Video Intercom System
Outdoor Doorbell
User Manual
All manuals and user guides at all-guidesbox.com
Overview
Overview
Model: MZ-VDP-NA200
1
3
2
5
4
No.
1. Weather shield
2. IR LEDS
3. Camera
4. Speaker
5. Call button
6. Microphone
7. System port
8. Switch output mode
9. Door lock port
Model: MZ-VDP-NE120
No.
1. Weather shield
2. IR LEDS
3. Camera
4. Speaker
5. Call button
6. Microphone
7. Screw slot
8. System port
9. Door lock port
6
7
9
8
Affix and protect outdoor doorbell from rain/snow
Provides illumination with IR LEDs for better visibility
Capture image to transmit to the monitor
Sound from indoor monitor
Call indoor monitor for intercommunication
Transmit voice to the indoor monitor
Connect the indoor monitor
Press and hold this button for 5 seconds to switch the
output mode among CVBS/720P/1080P
Connect to the door lock.
8
9
Affix and protect outdoor doorbell from rain/snow
Provides illumination with IR LEDs for better visibility
Capture image to transmit to the monitor
Sound from indoor monitor
Call indoor monitor for intercommunication
Transmit voice to the indoor monitor
Slots for installation screws
Connect to the indoor monitor.
Connect to the door lock.
GB-8
