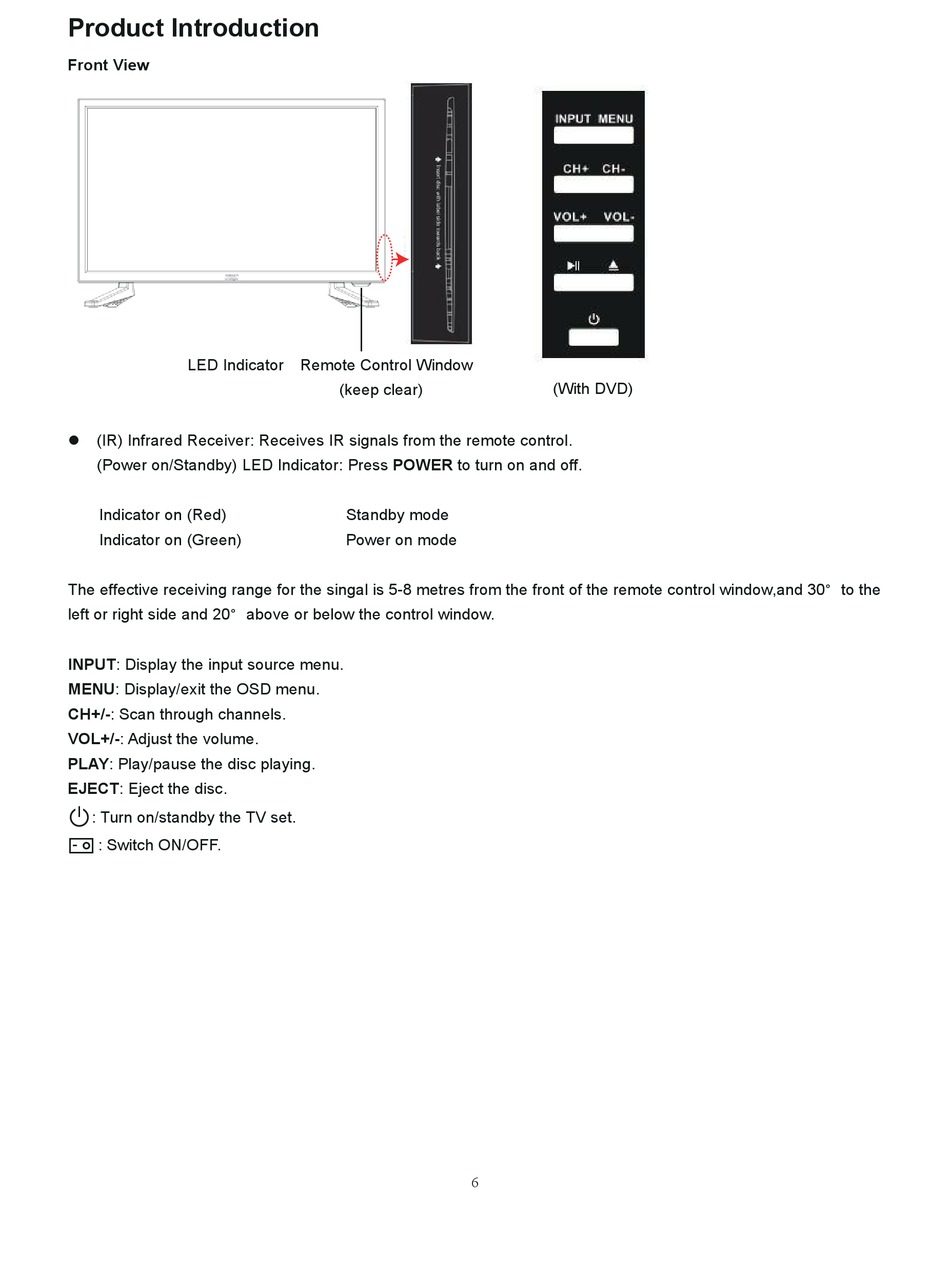

Product Introduction; Front View - ANTARION TV1970 Bedienungsanleitung

Product Introduction

Front View

LED Indicator Remote Control Window
(IR) Infrared Receiver: Receives IR signals from the remote control.

(Power on/Standby) LED Indicator: Press POWER to turn on and off.
Indicator on (Red)
Indicator on (Green)
The effective receiving range for the singal is 5-8 metres from the front of the remote control window,and 30° to the
left or right side and 20° above or below the control window.
INPUT: Display the input source menu.
MENU: Display/exit the OSD menu.
CH+/-: Scan through channels.
VOL+/-: Adjust the volume.
PLAY: Play/pause the disc playing.
EJECT: Eject the disc.
: Turn on/standby the TV set.
: Switch ON/OFF.
(keep clear)
Standby mode
Power on mode
6
(With DVD)
