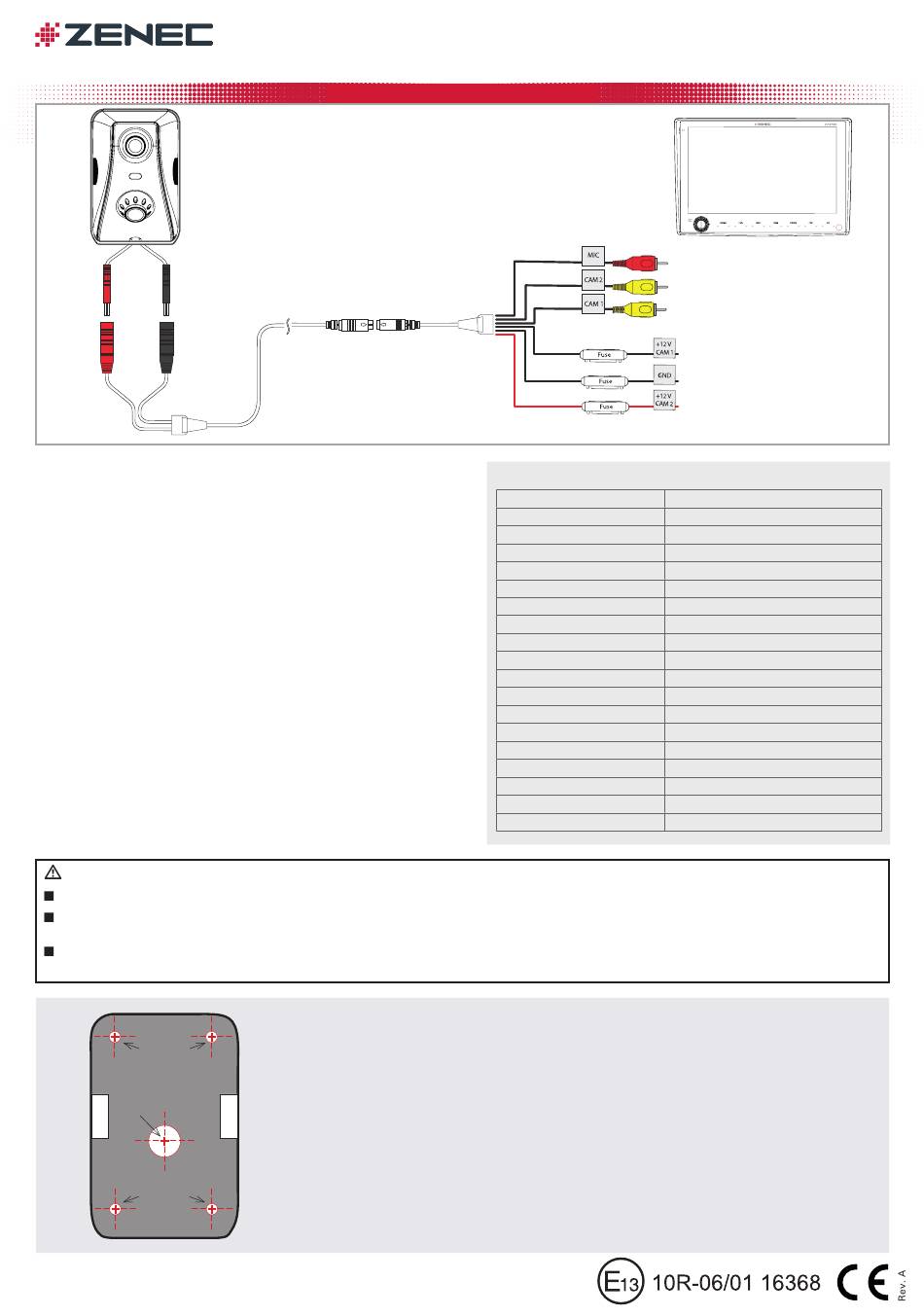

ZENEC ZE-RVSC200-MK2-MK2 Montageanleitung

MOUNTING INSTRUC TIONS
0.4 m
KEY FEATURES
• Compact twin-sensor rear view camera
• Fast-mount click-on system for camera main assembly on mounting plate
• Cam1 sensor with 50° and Cam2 sensor with 95° horizontal view angle
• Manual adjustment of vertical / horizontal image section for Cam1 /
Cam2
• IR-LED night-illumination system for Cam2 with dynamic LDR brightness
control
• Integrated microphone (Cam2)
• Separable 3-part system cable with 17.0 m main cable length
• Adaptor for factory-installed Waeco main cable supplied with the set
DESCRIPTION
The ZENEC ZE-RVSC200-MK2 twin-lens rear view camera was specially
developed for semi- and fully-integrated motorhomes. In the upper part of
the camera body is the so-called Cam1. The main task of this camera is to
replace the not available interior mirror. The camera lens, which is located
in the lower part, is called Cam2 and is mainly intended for maneuvering
and reversing. Cam2 will record the individually adjustable area of up to 5
meters behind the motorhome. An integrated microphone as well as the IR-
LED night illumination system will support the lower camera (Cam2).
This product is compatible with a variety of 2-DIN A/V aftermarket receiv-
ers and models of the ZENEC E>GO line up, featuring two inputs for re-
versing cameras and one for microphone.
CAUTION
Use the included connection cable exclusively. Modifying the cable will void your warranty.
The camera is water- and dustproof and has been licensed according to the international standard IP69K. However, vehicle clean-
ing using high pressure water and steam jet devices may still lead to damage of IP69K rated camera models by intrusion of water.
If the vehicle is treated with a water jet high pressure cleaning device, make sure to keep a distance of at least one meter between
the water nozzle and the camera sensor / housing.
Ø 2.5 mm
Ø 10 mm
Ø 2.5 mm
ZENEC by ACR AG ∙ Bohrturmweg 1 ∙ CH-5330 Bad Zurzach ∙ Switzerland
EU Legal Representative: ACR S & V GmbH ∙ Industriestr. 35 ∙ D-79787 Lauchringen ∙ Germany
www.zenec.com
0.4 m
17 m
Find a suitable spot for the camera on the back of your motorhome. The optimum height is about
2.5 m from the ground.
Take the mounting plate, hold it into the desired position and mark the midpoints of the five holes
as shown on the left. Remove the mounting plate and drill one hole with a diameter of Ø 10 mm
through the middle cross (cable port) and four holes with a Ø 2.5 mm through the corner crosses.
Hold the mounting plate in place and screw it with the provided tapping screws to the motorhome.
Pass the two cables through the middle hole and seal it with either vehicle glue or similar sealant.
Finally, all you have to do is click on the camera main assembly on the mounting plate, route the
cable to the radio bay and adjust both cameras manually.
ZE-RVSC200-MK2-MK2 ZE-RVSC200-MK2-MK2
T WIN-SENSOR RE AR VIE W C AMER A
White
Black
Red
Technical Specifications:
Image device Cam1/Cam2:
Lens focal length Cam1/Cam2:
TV system:
View angle CAM1/Cam2:
Native sensor resolution:
Resolution of video-out:
Frame rate:
Signal to noise ratio:
Light sensitivity:
Video output:
White balance:
Backlight compensation:
Gamma correction:
Gain control:
Sync system:
Power supply:
Current consumption Cam1/Cam2:
IP protection rating:
Operating temperature:
Audio Out (Cam 2)
Video Out (Cam 2)
Video Out (Cam 1)
Camera 1 Power (+12V)
Ground (GND)
Camera 2 Power (+12V)
6.09 mm SONY IMX225LQR CMOS sensor
f3.5 / f2.3
NTSC / 30 fps
90°(D)x50°(H)x45°(V) / 130°(D)x95°(H)x75°(V)
1305 (H) x 977 (V) pixels
> 420 TV lines
30 fi elds/sec.
> 48 dB
0.3 Lux
1.0 Vp-p, 75 ohms CVBS
Auto
Auto
0.45
Auto
Auto
DC 12 V
70 mA / 100 mA @12VDC, ≤ 2040 mW
IP69K
-30° C ~ +75°C, RH 95 % max.
