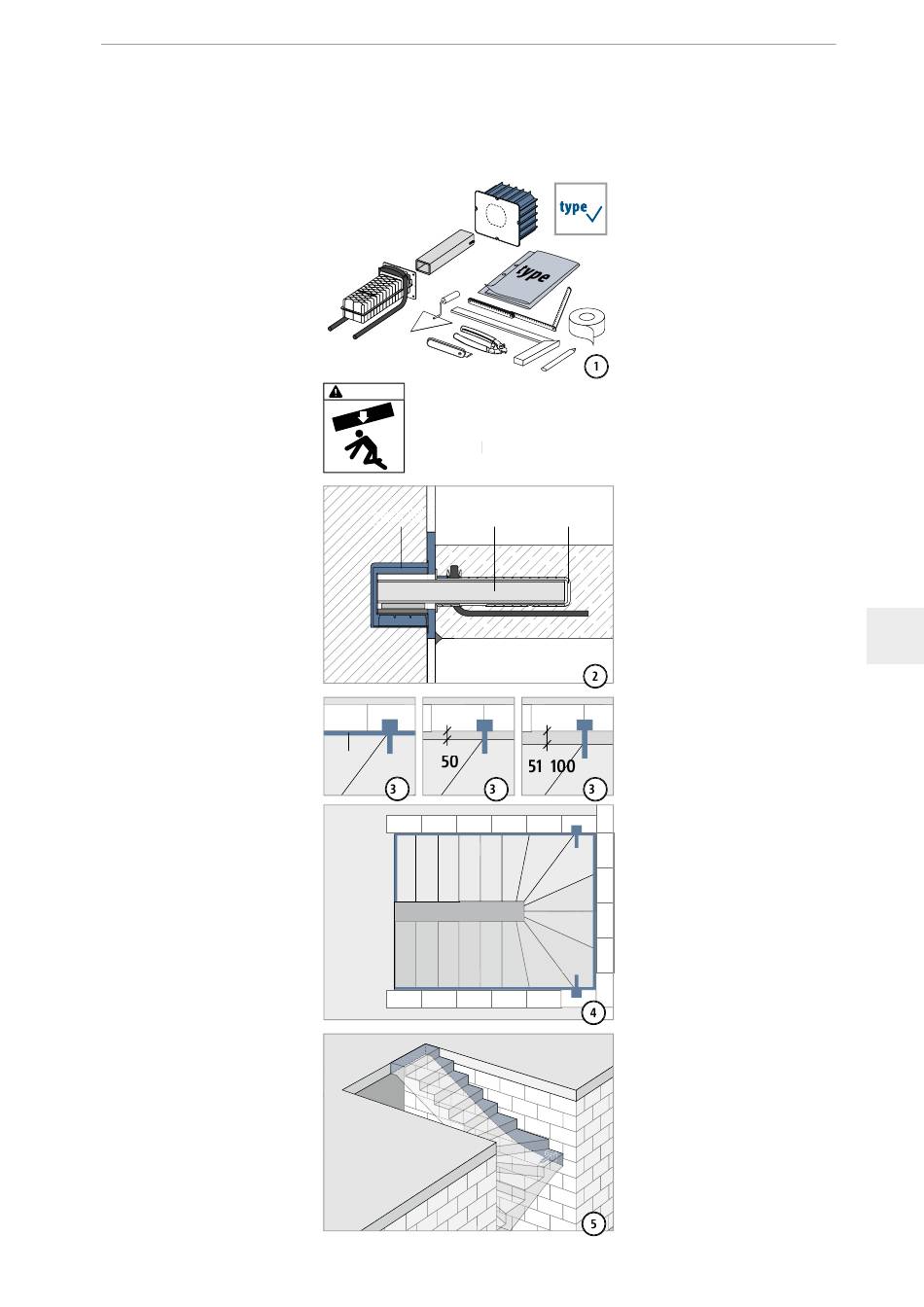

Schöck Tronsole® Typ Q Einbauanleitung – Ortbeton type Q part W part T part H Gefahr durch abstürzendes WARNING Bauteil bei unvollständigem Einbau! Es müssen alle Parts Tronsole® Typ Q (P onsole® Typ Q (P onsole® T arts W + T + H) verbaut werden.
Seite 2
Schöck Tronsole® Typ Q Einbauanleitung – Ortbeton 62 mm 62 mm 62 mm 62 mm 62 mm 62 mm 62 mm 62 mm 62 mm 62 mm 62 mm 62 mm 62 mm 62 mm 62 mm 62 mm 62 mm 62 mm ≥...
Seite 3
Schöck Tronsole® Typ Q Einbauanleitung – Ortbeton type L Click ≈ ≈ Technische Information Schöck Tronsole®/DE/2022.2/Dezember...
Seite 4
Schöck Tronsole® Typ Q Einbauanleitung – Ortbeton x ≈ part t H H part T part t W W Gefahr durch abstürzendes WARNING Bauteil bei fehlender Stützung! Baustützen langsam herunter- drehen. Nur lastfreie Stützen entfernen. part H type type type type type type...
Seite 5
Schöck Tronsole® Typ Q Einbauanleitung – Ortbeton Technische Information Schöck Tronsole®/DE/2022.2/Dezember...
Seite 6
Schöck Tronsole® Typ Q Einbauanleitung – Fertigteilwerk type Q part H part W part W part W part W part W part W part W part W part W part W part W part W part W part W part W part W part W part W...
Seite 7
Schöck Tronsole® Typ Q Einbauanleitung – Fertigteilwerk Technische Information Schöck Tronsole®/DE/2022.2/Dezember...
Seite 8
Schöck Tronsole® Typ Q Einbauanleitung – Fertigteilwerk type Q parts W + T Technische Information Schöck Tronsole®/DE/2022.2/Dezember...
Seite 9
Schöck Tronsole® Typ Q Einbauanleitung – Fertigteil Baustelle type Q part W type type type L L type type type type Q type F/T type F/T type F/T type F/T type F/T part T type type type type L L L L type type type...
Seite 10
Schöck Tronsole® Typ Q Einbauanleitung – Fertigteil Baustelle part t t t t t H H part t H H x ≈ Technische Information Schöck Tronsole®/DE/2022.2/Dezember...
Seite 11
Schöck Tronsole® Typ Q Einbauanleitung – Fertigteil Baustelle ≥ ≥ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Technische Information Schöck Tronsole®/DE/2022.2/Dezember...
Seite 12
Schöck Tronsole® Typ Q Einbauanleitung – Fertigteil Baustelle parts W + T Click mm < x ≤ mm < x ≤ < ≤ mm m · B < ≤ mm m · B < ≤ · B WARNING parts ts ts W + T Gefahr durch abstürzendes Bauteil bei unvollständigem Einbau! Es müssen alle Parts...
Seite 13
Schöck Tronsole® Typ Q Einbauanleitung – Fertigteil Baustelle Nach dem Einbau des Wandelements Tronsole® Typ Q P Typ Q P art W ist die Höhen- lage der Treppe durch druckfeste Ausgleichsplatten (z. B. aus Stahl, Mindest- größe 160 x 110 mm) zu justieren.
Seite 14
Schöck Tronsole® Typ Q Einbauanleitung – Fertigteil Baustelle Technische Information Schöck Tronsole®/DE/2022.2/Dezember...
