HYDROGEN SERIES

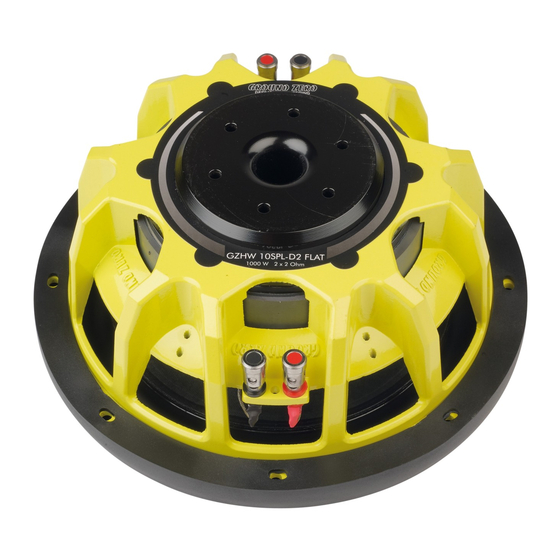

Flat SPL Subwoofer
GZHW 10SPL-D2 FLAT
Anleitung / Owner´s Manual
Ausstattungsmerkmale / Features
• Hochbelastbarer SPL Subwoofer mit
geringer Einbautiefe
• Klippel® optimiert
• Effizienter Ferrit-Magnet
• Langlebige Gummisicke in U-Form
• Stabiler Aluminiumgusskorb
• Sandwich-Membran mit Papier
• 4-lagige Kupfer-Schwingspule
• Langhubige U-Sicke
• Verchromter Druckkontakt-Anschluss
o High-power SPL subwoofer with shallow
installation depth
o Klippel® optimized
o Efficient ferrite magnet
o Durable U-shape rubber surround
o Massive aluminum cast basket
o Paper sandwich cone
o 4-layer copper voice coil
o High-roll U-surround
o Chrome-plated push terminal
(AWV2.0)
HYDROGEN SERIES
Werbung
Inhaltsverzeichnis
Verwandte Anleitungen für Ground Zero GZHW 10SPL-D2 FLAT
Inhaltszusammenfassung für Ground Zero GZHW 10SPL-D2 FLAT
- Seite 1 HYDROGEN SERIES Flat SPL Subwoofer GZHW 10SPL-D2 FLAT Anleitung / Owner´s Manual (AWV2.0) Ausstattungsmerkmale / Features • Hochbelastbarer SPL Subwoofer mit geringer Einbautiefe • Klippel® optimiert • Effizienter Ferrit-Magnet • Langlebige Gummisicke in U-Form • Stabiler Aluminiumgusskorb • Sandwich-Membran mit Papier •...
- Seite 2 Anlage sowie deren Einbau und Abstimmung den Fachhandel oder eine spezialisierte Fachwerkstatt aufzusuchen. Thank you for choosing a great GROUND ZERO product! We hope you will enjoy this product from the HYDROGEN series. This owner´s manual contains information you need to use this product. Please read it carefully in order to achieve the best possible result.
-
Seite 3: Allgemeine Einbauhinweise / General Installation Note
130 dB or more. Extreme levels can also hinder the perception of important traffic noises and distract from what is happening on the road. Ground Zero GmbH and its sales partners expressly assume no responsibility for hearing damage, physical damage or any damage to property or consequential damage resulting from improper or careless use or improper installation of its products. -
Seite 4: Technische Daten / Specifications
GROUND ZERO GZHW 10SPL-D2 FLAT Technische Daten / Specifications model Modell / GZHW 10SPL-D2 FLAT motor Antrieb / Ferrit/ferrite voice coil Ø Schwingspule / Ø 63 mm / 2.5” voice coil Schwingspule / 4-lagig Kupfer / 4-layer copper cone Membran /... - Seite 5 GROUND ZERO GZHW 10SPL-D2 FLAT Abmessungen / Dimensions Verkabelungsmöglichkeiten / Wiring options HYDROGEN SERIES...
-
Seite 6: Gehäuseempfehlung / Enclosure Recommendation
GROUND ZERO GZHW 10SPL-D2 FLAT Gehäuseempfehlung / Enclosure recommendation model Modell / GZHW 10SPL-D2 FLAT ented Bassreflex / v 17 Liter netto / 0.60 cu.ft. net Port 1 x 70 mm / 1 x 2.76” Portlänge / port length* 300 mm / 11.81”... - Seite 7 GROUND ZERO GZHW 10SPL-D2 FLAT Verified with KLIPPEL ® GROUND ZERO is using the worldwide accepted KLIPPEL ® R&D Analyzer KA3 measurement system for speaker development during the German in-house development as well as for QC reporting for most production lines at the factory. The results of LPM and LSI measurements are the basis for evaluating and verifying further development enabling to offer perfectly working products in any practical application.
- Seite 8 Some music styles require higher levels while others prefer the soft tones. GROUND ZERO considers all the different wishes of customers during the development of new products. Along with this, the target is to create the most realistic sound, to transfer the soul of the music and the intention of the performer.
