Start Up; Cooling; Connecting Components; Usb Charging Port (Option) - Bbs Case Serie Bedienungsanleitung

BSS-Streaming Service BSS-Case
M3x8mm (6 pcs. ATEM Mini; 8 pcs. ATEM Extreme;), max. tightening torque 0,
2Nm (! apply only slightly) (Image 14)

Start up

Turning on/off
Before switching on, open the
case and open the lid completely.
The BSS case has an internal
power supply unit (max. 5A). For
the power supply, plug in the sup-
plied power cable on the left side of the case.
The on / off switch is located on the front of the case (Image 15). When it is
switched on, the ATEM Mini is switched on at the same time. The field monitor
must be started by using the separate on / off switch on the top.
Note: Always turn off using the on / off switch before closing the case and then
pulling the power plug! Otherwise there is a risk of overheating / destruction of the
built-in devices when the BSS case is closed while switched on.
The device is switched off by manually switching off the field monitor at its on /
off switch on the top of the housing. Then turn off the switch on the BSS case.
Before closing the case, make sure that all built-in devices are switched off.
Close the case lid and remove the power cord.

Cooling

Integrated fan
The BSS case has a built-in fan to
cool the built-in components. It is
located on the right-hand side of
the case and must never be
blocked.
Make sure that no objects pene-
trate through the ventilation grille
and block the fan. Make sure there
is enough free space (at least 15
cm) around the outlet opening of the fan.
Page 46

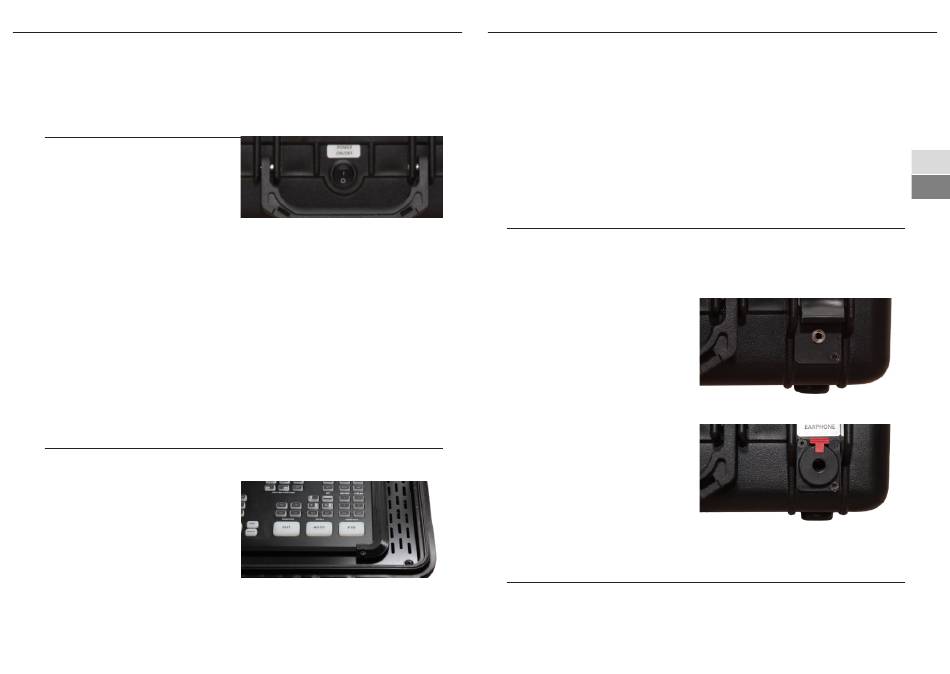

(Image 15) On, off switch on the
front
(Image 16) BSS case ventilation slots
Operating instruction EN
Vents
There are ventilation slots on the cover plate to the right and left of the ATEM
Mini (Image 16). Under no circumstances may these be covered, masked or
otherwise reduced or blocked in their cross-section. Otherwise there is a risk of
overheating / destruction of the built-in components.
Note: Do not expose the BSS case to direct sunlight, otherwise there is a risk of the
components overheating.

Connecting Components

All ATEM Mini / Extreme ports are easily accessible on the outside of the case.
In the basic version of the case, these correspond to the connections on the
ATEM Mini and can be used in the same way. Please note the information in the
section on operation with HDMI
cables in the chapter.
For more information, see the
ATEM Mini user manual on its
manufacturer's website under
the Support section.
Headphone jack
In addition to the interfaces of
the ATEM Mini, there is a 3.5mm
(Image 17) or a lockable 6.35mm
headphone connection (Image
18) (Professional version) on the
front of the BSS case (Basic ver-
sion). The volume can be ad-
justed via the field monitor's soft-
ware menu. Further information
can be found in the user manual
of the field monitor.

USB charging port (option)

With the optional USB charging connection, USB accessories can be supplied
with up to 2A charging current.
DOC-000001
(Image 17) 3.5mm headphone jack
(Image 18) 1/4" headphone jack
Page 47
