GB

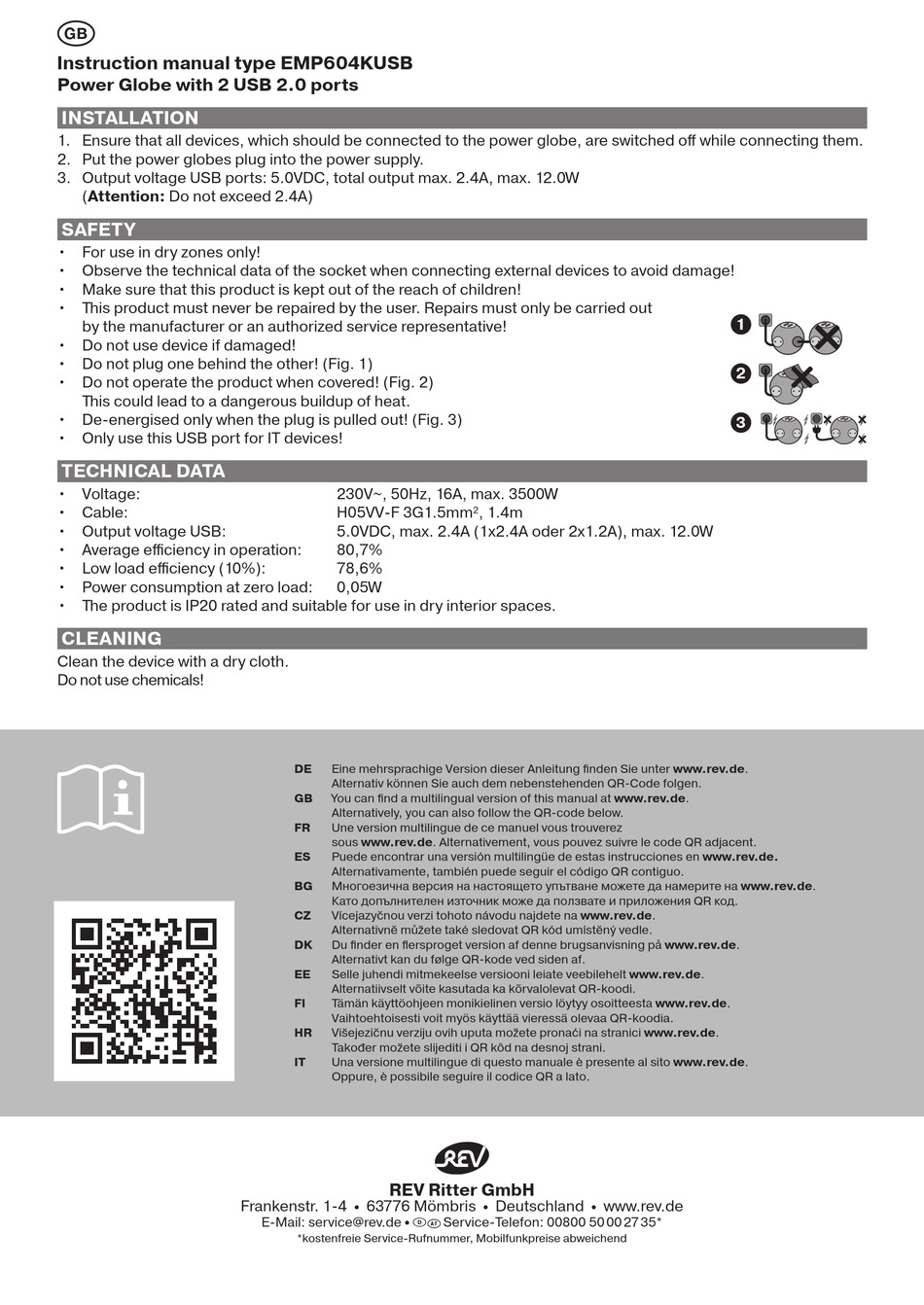

Instruction manual type EMP604KUSB
Power Globe with 2 USB 2.0 ports
INSTALLATION
1. Ensure that all devices, which should be connected to the power globe, are switched off while connecting them.
2. Put the power globes plug into the power supply.
3. Output voltage USB ports: 5.0VDC, total output max. 2.4A, max. 12.0W
(Attention: Do not exceed 2.4A)
SAFETY
• For use in dry zones only!
• Observe the technical data of the socket when connecting external devices to avoid damage!
• Make sure that this product is kept out of the reach of children!
• This product must never be repaired by the user. Repairs must only be carried out
by the manufacturer or an authorized service representative!
• Do not use device if damaged!
• Do not plug one behind the other! (Fig. 1)
• Do not operate the product when covered! (Fig. 2)
This could lead to a dangerous buildup of heat.
• De-energised only when the plug is pulled out! (Fig. 3)
• Only use this USB port for IT devices!
TECHNICAL DATA
• Voltage:
• Cable:
• Output voltage USB:
• Average efficiency in operation:
• Low load efficiency (10%):
• Power consumption at zero load:
• The product is IP20 rated and suitable for use in dry interior spaces.
CLEANING
Clean the device with a dry cloth.
Do not use chemicals!
230V~, 50Hz, 16A, max. 3500W
H05VV-F 3G1.5mm², 1.4m
5.0VDC, max. 2.4A (1x2.4A oder 2x1.2A), max. 12.0W
80,7%
78,6%
0,05W
DE Eine mehrsprachige Version dieser Anleitung finden Sie unter www.rev.de.
Alternativ können Sie auch dem nebenstehenden QR-Code folgen.
GB You can find a multilingual version of this manual at www.rev.de.
Alternatively, you can also follow the QR-code below.
FR Une version multilingue de ce manuel vous trouverez
sous www.rev.de. Alternativement, vous pouvez suivre le code QR adjacent.
ES Puede encontrar una versión multilingüe de estas instrucciones en www.rev.de.
Alternativamente, también puede seguir el código QR contiguo.
BG Многоезична версия на настоящето упътване можете да намерите на www.rev.de.
Като допълнителен източник може да ползвате и приложения QR код.
CZ Vícejazyčnou verzi tohoto návodu najdete na www.rev.de.
Alternativně můžete také sledovat QR kód umístěný vedle.
DK Du finder en flersproget version af denne brugsanvisning på www.rev.de.
Alternativt kan du følge QR-kode ved siden af.
EE Selle juhendi mitmekeelse versiooni leiate veebilehelt www.rev.de.
Alternatiivselt võite kasutada ka kõrvalolevat QR-koodi.
FI Tämän käyttöohjeen monikielinen versio löytyy osoitteesta www.rev.de.
Vaihtoehtoisesti voit myös käyttää vieressä olevaa QR-koodia.
HR Višejezičnu verziju ovih uputa možete pronaći na stranici www.rev.de.
Također možete slijediti i QR kôd na desnoj strani.
IT Una versione multilingue di questo manuale è presente al sito www.rev.de.
Oppure, è possibile seguire il codice QR a lato.
REV Ritter GmbH
Frankenstr. 1-4 • 63776 Mömbris • Deutschland • www.rev.de
•
E-Mail: service@rev.de
D
*kostenfreie Service-Rufnummer, Mobilfunkpreise abweichend
Service-Telefon: 00800 50 00 27 35*
