Roller shutter rotary switch
This instruction manual ...
... describes the installation and operation of the roller shutter rotary switch. Please read this manual thoroughly. In addition pay attention to the safety instructions
before you begin any work. Please store this manual. Guarantee will not be extended to damages arising from the non-observance of these instructions and the
safety regulations. We are not liable for consequential damages resulting from it.
Here it is about safety.
Please observe and follow all instructions marked in this way.
Danger to life through electric shock.
This sign points out the dangers while working on electrical connections, components, etc.
Safety measures are necessary for the protection of health and life of the affected people.
Danger to life through electric current! The roller shutter rotary switch should be installed and connected only by qualified electricians.
For this, pay attention to the guidelines of the VDE and the local electricity provider.
Danger through over voltage! Secure the device on site with a line circuit breaker of max. 10 A. Wire roller shutter rotary switch for the required
application. Only one motor per roller shutter rotary switch. By the use of two or more motors it can be destroyed (please pay attention to manufac-
turer's specifications). The use of defective devices can lead to bodily injury and property damage (electric shock, short circuit). Therefore never use
defective or damaged devices.
Before beginning the installation, make sure the power supply line is disconnected.
57
touching and latching
Adapter
Lug
Disposal
Our electrical and electronic equipment may not be disposed of with household waste and must be disposed of after use properly in accordance with WEEE
Directive EU: 2012/19/ EU; GB UK(NI): SI 2012 nr. 19 on waste electrical and electronic equipment in order to ensure that materials are recycled. Collecting
waste electrical equipment separately means environmentally-friendly disposal and is completely free of charge for the consumer.
WEEE reg. no. in Germany: DE66256568.
Any waste packaging left over with the end consumer must be collected separately from mixed waste, in accordance with the Directive. Packaging may not be
disposed of with household waste, organic waste or in nature. Packaging material must be separated according to its material and disposed of in the recycling
containers provided and in certain council recycling bins.
Hereby, Chamberlain GmbH declares that the equipment type RZ94 is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: https://doc.chamberlain.de/
W1-704027F
51,5

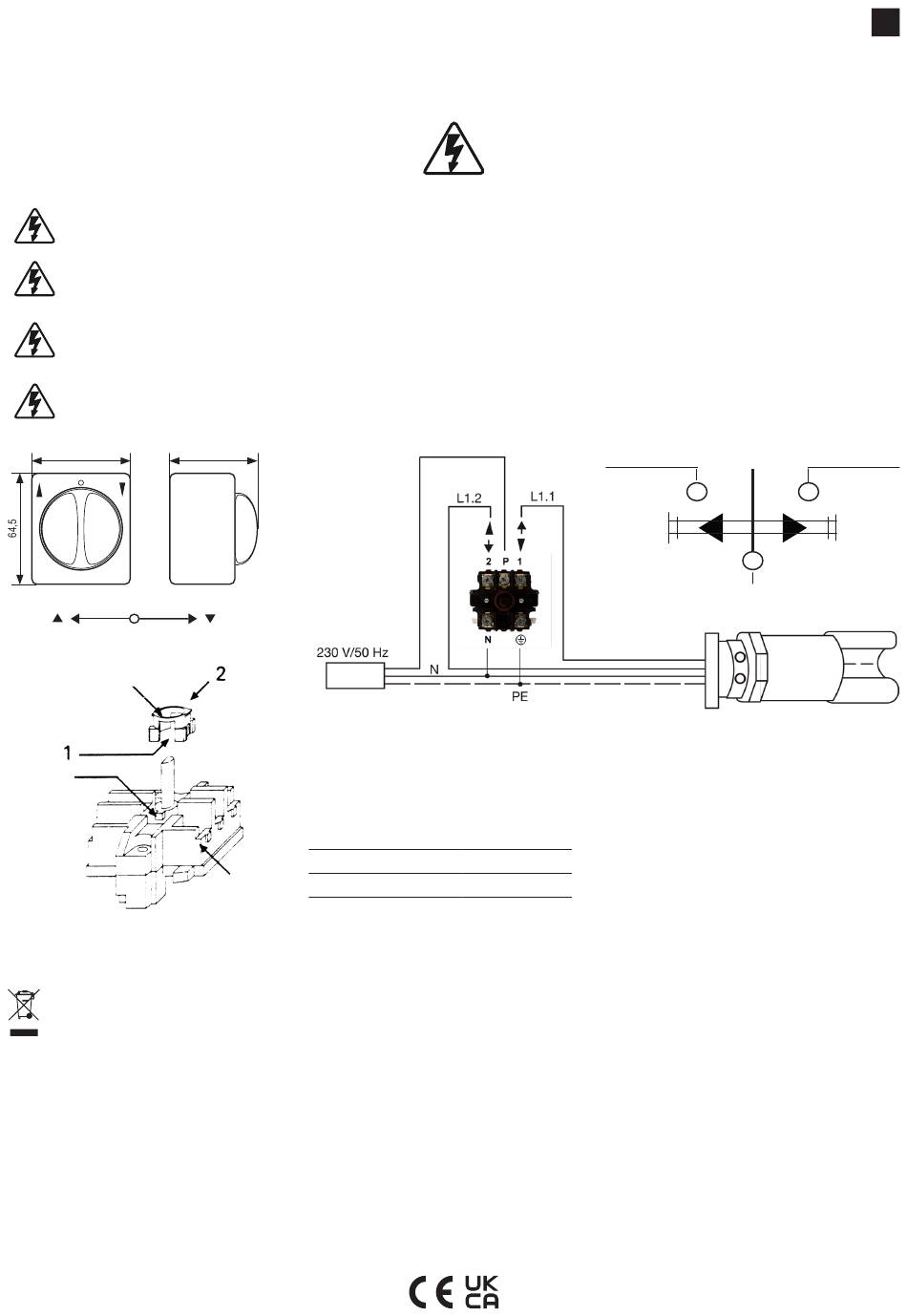

By turning the red adapter the touch function can be switched to touch/latch function.
1. Touch version is created when the adapter with the small opening (1) is pushed up to the stop over the lug.
2. Touch/latch version is created when the adapter is turned 180° and with the large opening (2) is pushed up
to the stop over the lug.
Technical Data
Mains voltage:
Nominal current:
Base
Connections:
230V
10A
max. 2,5mm
2 1
