Technical Specifications; Instructions For Use; Inserting/Replacing The Battery - Flex PS 10.8/18.0 Bedienungsanleitung

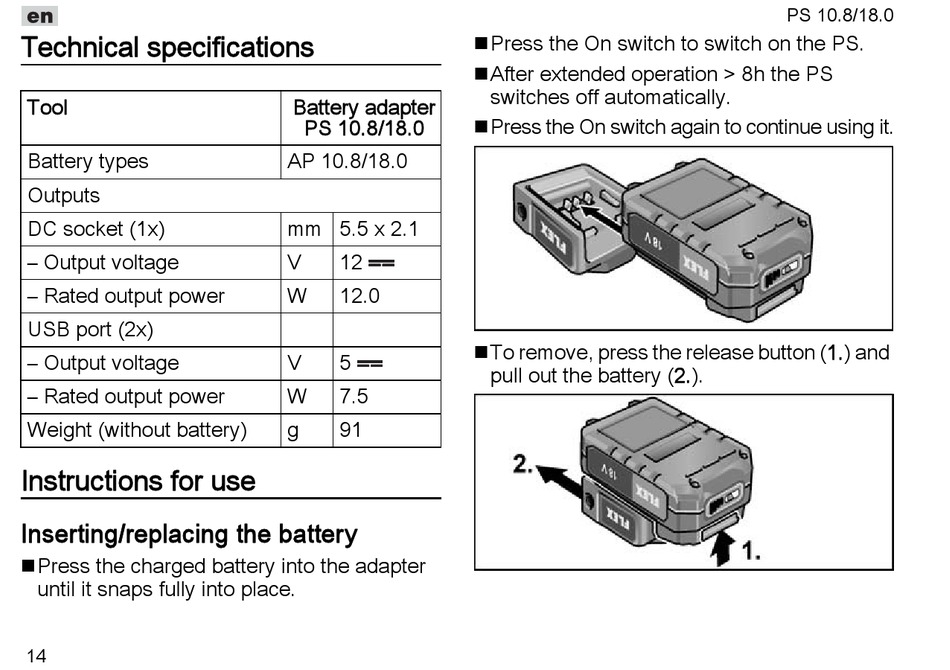

Technical specifications

Tool
Battery types
Outputs
DC socket (1x)
– Output voltage
– Rated output power
USB port (2x)
– Output voltage
– Rated output power
Weight (without battery)

Instructions for use

Inserting/replacing the battery

Press the charged battery into the adapter
until it snaps fully into place.
14
Battery adapter
PS 10.8/18.0
AP 10.8/18.0
mm 5.5 x 2.1
V 12
W 12.0
V 5
W 7.5
g 91
Press the On switch to switch on the PS.
After extended operation > 8h the PS
switches off automatically.
Press the On switch again to continue using it.
To remove, press the release button (1.) and
pull out the battery (2.).
PS 10.8/18.0
