Pump warning
1. Don't change the the place of pump on bathtub! Make sure the pump to be grounded properly.
2. Don't start the motor without water in the pump in case you will get the seal damaged.
3. The motor will be hot when it is running, don't touch it in case get burnt.
4. Don't open the IC-Box when the motor is running in case you will get an electric shock.
5. The electrical network that be connected with motor should be accorded with nameplate of motor.

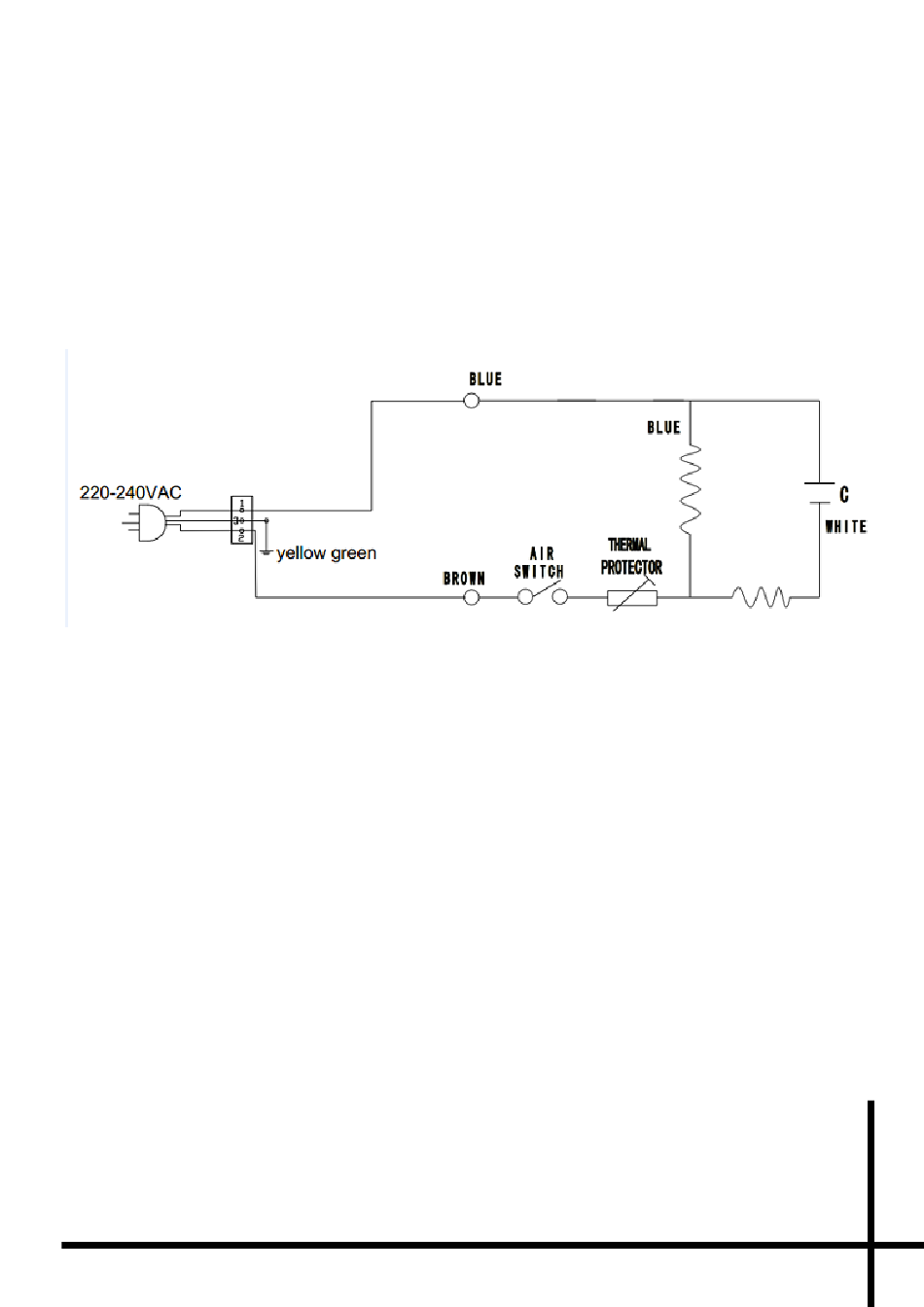

Electrical circuit and warning
Warning: Make sure the pump to be grounded properly!!!

Electrical rating

220-240V ~, 50HZ. 750W. Class B. IPX5, H:0-10m
Air switch of Pump warning
1. Test it before each use. Keep all wires dry!
2. To reduce the electric shock, don't remove, modify or immerse this plug.
Bathtub Operation Instruction
1. After bathtub is assembled, test Air Switch for each use
2. Plug into power outlet. Press test button first, reset button should pop up. For use, press reset button
again. Don't use if test fail.
3. According to the sign of hot and cold water, to adjust suitable water temperature. Cold water first, hot
water second. (Temperature should be controlled not exceeding 40° C
4. Only all water jets are submerged into water, we can turn on the switch of pump. Through switch of
speed to control the water pressure. Check all functions are ok.
