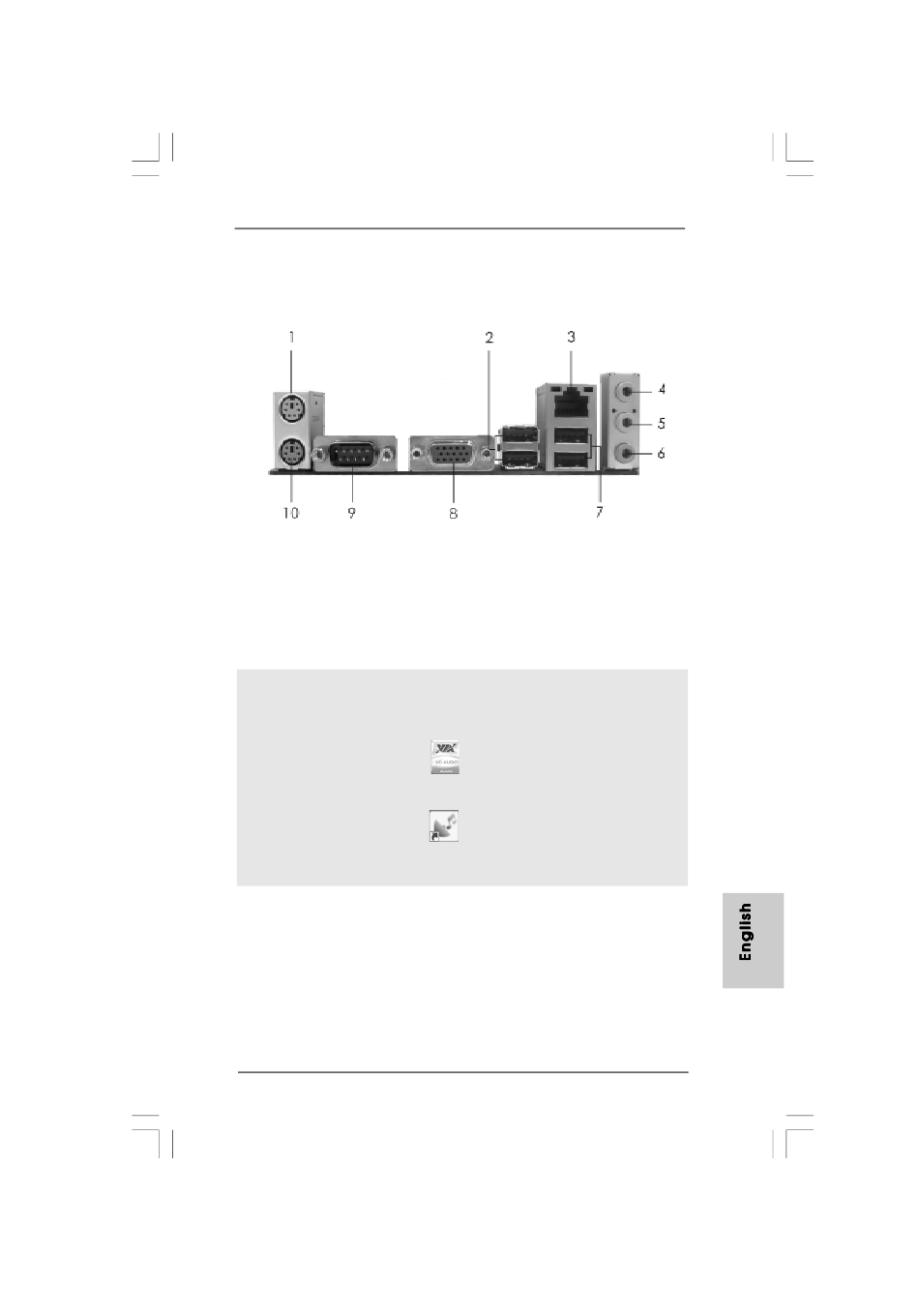

I/O P I/O P anel anel
I/O P I/O Panel I/O P anel anel
1 PS/2 Mouse Port (Green)
2 USB 2.0 Ports (USB23)
3 RJ-45 Port
4 Line In (Light Blue)
5 Line Out (Lime)
To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. After restarting your computer, you will find "VIA HD Audio Deck" tool on
your system. Please follow below instructions according to the OS you install.
For Windows ® XP / XP 64-bit OS:
Please click "VIA HD Audio Deck" icon
select "2 Channel" or "4 Channel". Click "Power" to save your change.
® TM
For Windows 7 / 7 64-bit / Vista
Please click "VIA HD Audio Deck" icon
on the bottom. In "Advanced Options" screen, select "Independent Headphone", and click
"OK" to save your change.
ASRock G31M-VS2 Motherboard
6 Microphone (Pink)
7 USB 2.0 Ports (USB01)
8 VGA Port
9 COM Port
10 PS/2 Keyboard Port (Purple)
, and click "Speaker". Then you are allowed to
TM
/ Vista 64-bit OS:
, and click "Advanced Options" on the left side
