Wiring
4.1

Quick wiring guide

Terminal assignment

The terminal block is located under the display and the electronics unit. First remove the
housing cover and remove the display from the electronics unit. Now remove the electronics
unit. The connecting cables can now be mounted.

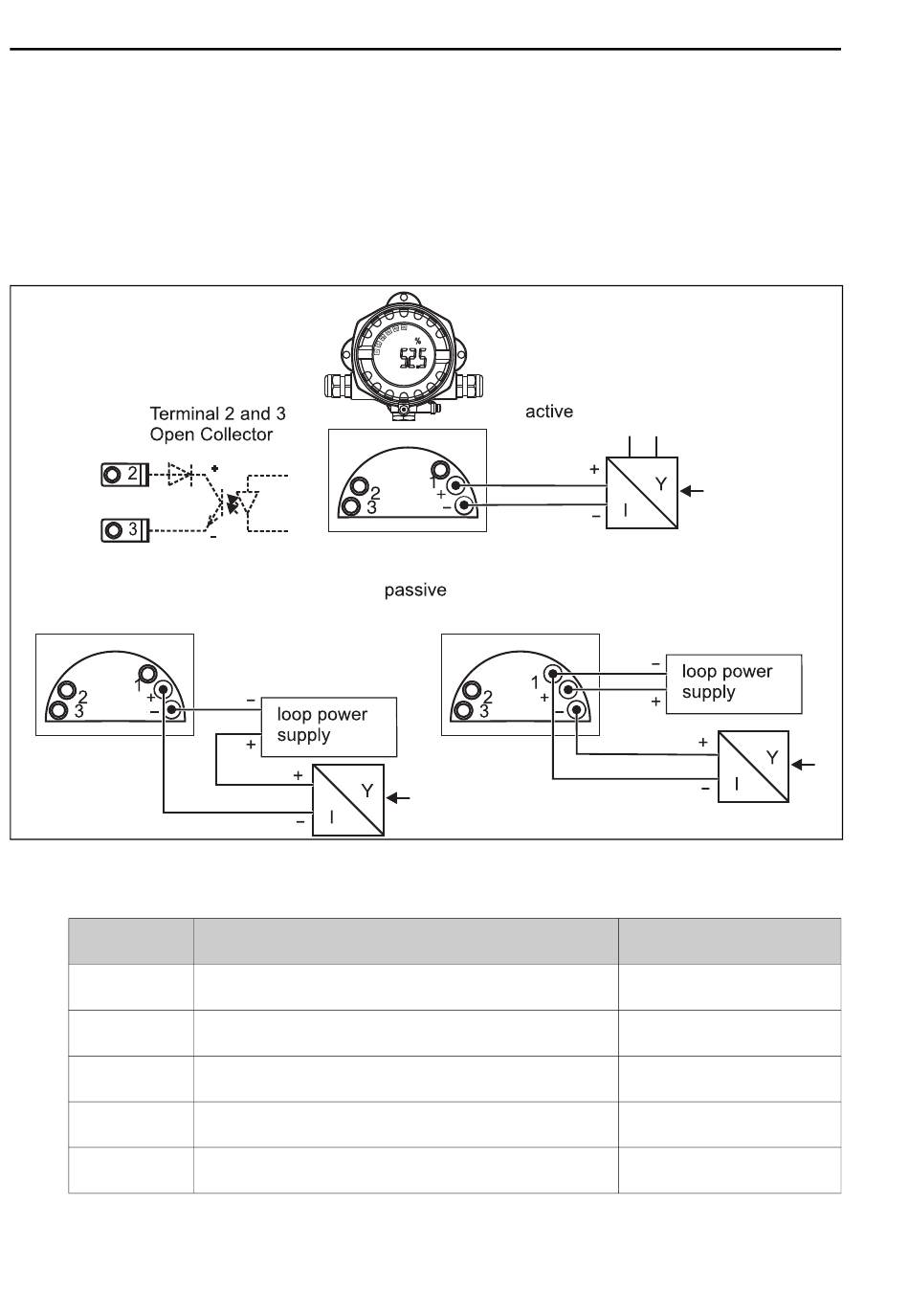

Fig. 7: Terminal assignment
Terminal
+
-
1
2
3
30
Terminal assignment
Measuring signal (+) 4 to 20 mA
Measuring signal (-) 4 to 20 mA
Terminal for further instrumentation
Digital limit switch (collector)
Digital limit switch (emitter)
RIA14
a0010946-en

Input and output

Signal input
Signal input
Support terminal
Switch output
Switch output
Endress+Hauser
