12/25
Bosch Rexroth AG
Daten und Abmessungen
HCS01.1E-W0018/28
Rexroth IndraDrive Antriebsregelgeräte Leistungsteile HCS01
Standardmäßige Montage:
A
minimaler Einbauraum
B
Bohrmaße
C
Montagefläche

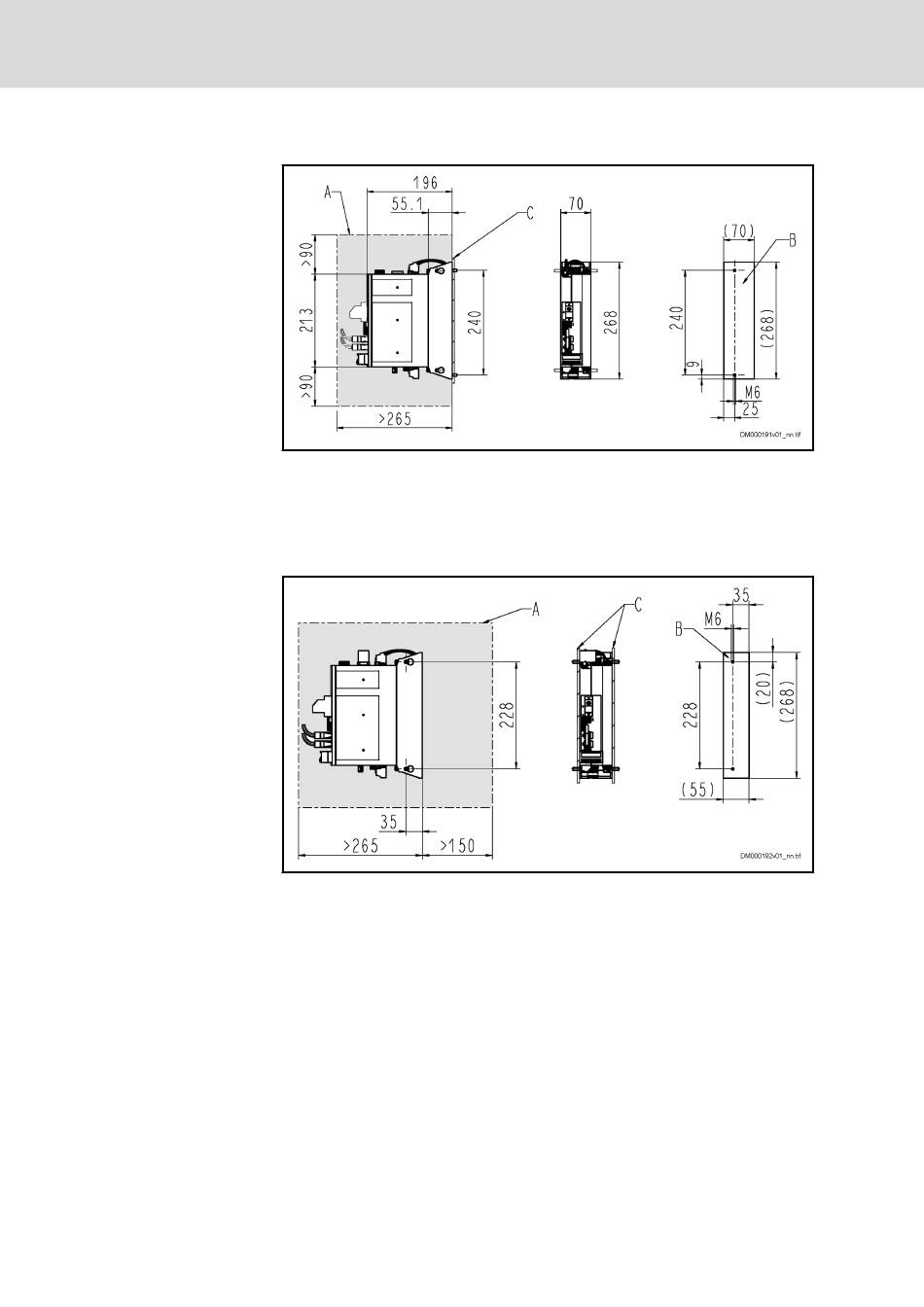

Abb. 2-4:
Maßblatt HCS01.1E-W0018/28 (standardmäßige Montage)
Links- oder rechtsseitige Montage:
A
minimaler Einbauraum
B
Bohrmaße
C
Montagefläche
Abb. 2-5:
Maßblatt HCS01.1E-W0018/28 (links- oder rechtsseitige Montage)
DOK-INDRV*-HCS01*UL***-IB06-DE-P
