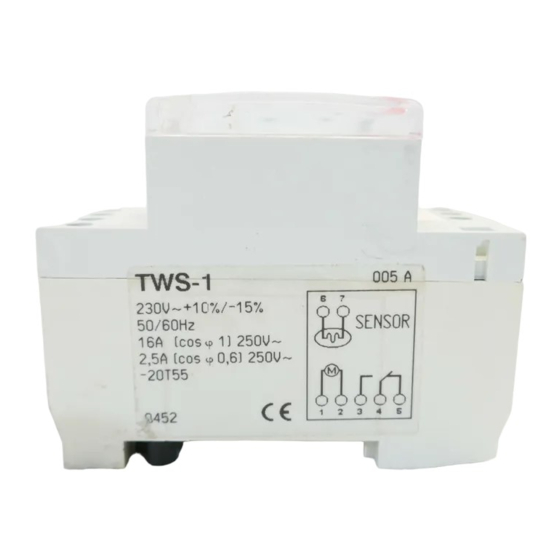

TWS-1 System pro M EG5738 GHV0215738R 0001 Istruzioni per l’uso dell’interruttore crepuscolare Operating Instructions for twilight switch Bedienungsanleitung Lichtsteuergerät LU X Notice d’utilisation de l’interrupteur Instrucciones de empleo del interruptor crepuscular Instruçoes de serviço para o interruptor crepuscular...
Seite 3
Descrizione generale L’interruttore crepuscolare consente l’accensione / spegnimento di apparecchi illuminanti, considerando il livello di luminosità preimpostato sull’apparecchio (TWS-1) con il livello di luminosità esterno rilevato dal sensore (LS-1), quando quest’ultimo scende al di sotto di quello preimpostato, l’apparecchio TWS-1 dà il consenso alla chiusura del circuito.
Seite 4
Pg. 13,5 Ø min. 8 mm max. 2 x 2,5 mm max. 100 m IP 65 Schema di collegamento rete utenza sensore...
Caratteristiche tecniche Tensione nominale Un 230 c.a. Portata del contatto c.a. 16 (carico resistivo cosj= 1) 2,5 (carico induttivo cosj= 0,6) 1000 (lampade a fluorescenza rifasate) Frequenza 50/60 Portata del contatto c.c. mA 800 (a 24 V) 300 (a 60 V) 150 (a 220 V) Natura del contatto In commutazione...
Seite 7
• DIMENSIONI D’INGOMBRO 20 mm 35 mm 60 mm...
Seite 8
General description The twilight switch allows lights to be automatically switched on and off according to the lighting level. The external lighting level detected by the sensor (LS-1) is compared with the lighting level previously set on the device (TWS-1): the circuit closes when the latter is higher.
Seite 9
Pg. 13,5 Ø min. 8 mm max. 2 x 2,5 mm max. 100 m IP 65 Connection diagram supply output sensor...
Allgemeine Beschreibung Mit dem Lichtsteuergerät können Beleuchtungen ein- und ausgeschaltet werden, unter Berücksichtigung der auf dem Gerät (TWS-1) voreingestellten Helligkeitsstufe mit der externen Helligkeitsstufe, die vom Sensor (LS-1) gemessen wird. Übersteigt diese den voreingestellten Wert, gibt das Gerät TWS-1 den Befehl zum Schließen des Schaltkreises.
Seite 14
Pg. 13,5 Ø min. 8 mm max. 2 x 2,5 mm max. 100 m IP 65 Anschlußplan Netz Verbraucher Sensor...
Seite 15
Funktionsprinzip sec. sec. ~ 1,3 LED OFF LED ON...
Technische Daten Bemessungsspannung 230 AC Schaltleistung AC 16 (ohmsche Last cosj = 1) 2,5 (Induktive Last cosj = 0,6) 1000 (Leuchtstofflampen mit Blindleistungskompensation) Frequenz Hz 50/60 Schaltleistung DC mA 800 (bei 24 V DC) 300 (bei 60 V DC) 150 (bei 220 V DC) Schaltkontakt 1 Wechsler Helligkritsbereich...
Seite 18
Description générale Cet interrupteur permet d’allumer et d’éteindre des appareils d’éclairage en comparant le niveau de luminosité programmé sur l’appareil (TWS-1) avec celui de la luminosité externe détecté par la cellule (LS-1). Lorsque ce dernier dépasse le niveau programmé, le TWS-1 autorise la fermeture du circuit.. Instructions de montage 1°...
Seite 19
Pg. 13,5 Ø min. 8 mm max. 2 x 2,5 mm max. 100 m IP 65 Schéma de raccordement réseau utilisation cellule...
Seite 22
• DIMENSIONS HORS TOUT 20 mm 35 mm 60 mm...
Seite 23
Descripción general El interruptor crepuscular permite el encendido / apagado de aparatos de iluminación, considerando el nivel de luminosidad pre- programado en el aparato (TWS-1) con respecto al nivel de luminosidad externo detectado por el sensor (LS-1); cuando el nivel de luminosidad exterior es superior al preprogramado en el aparato, se produce la conmutación del contacto de salida.
Seite 24
Pg. 13,5 Ø min. 8 mm max. 2 x 2,5 mm max. 100 m IP 65 Esquema de conexión carga sensor...
Características técnicas Tensión nominal Un 230 c.a. Capacidad 16 (carga resistiva cosj=1) del contacto en c.a. 2,5 (carga inductiva cosj=0,6) 1000 (lámparas de fluorescencia de fase corregida) Frecuencia Hz 50/60 Capacidad mA 800 (a 24 V) del contacto en c.c. 300 (a 60 V) 150 (a 220 V) Tipo de contacto...
Seite 27
• DIMENSIONES MÁXIMAS EXTERNAS 20 mm 35 mm 60 mm...
Descrição geral O Interruptor Crepuscular permite ligar / desligar circuitos de iluminação levando em consideração o nível de luminosidade préviamente programado no aparelho (TWS-1). Quando este nivel ultrapassar o nível de luminosidade exterior detectado pelo sensor (LS-1), o Interruptor Crepuscular dará ordem para o fecho do circuito. Instrucções para montagem 1°...
Seite 29
Pg. 13,5 Ø min. 8 mm max. 2 x 2,5 mm max. 100 m IP 65 Esquema de ligação rede utilização sensor...
