7.2 Backlight Contrast setting
"bL" means backlight. Level 1 is low brightness. Level 2 is the middle brightness. Level 3 is high bright-
ness. The default level is 1. Press button „+" or „-" to modify the backlight brightness. Press button „
to confi rm.
7.3 km/mile setting
Press button „+" or „-" to modify the value.

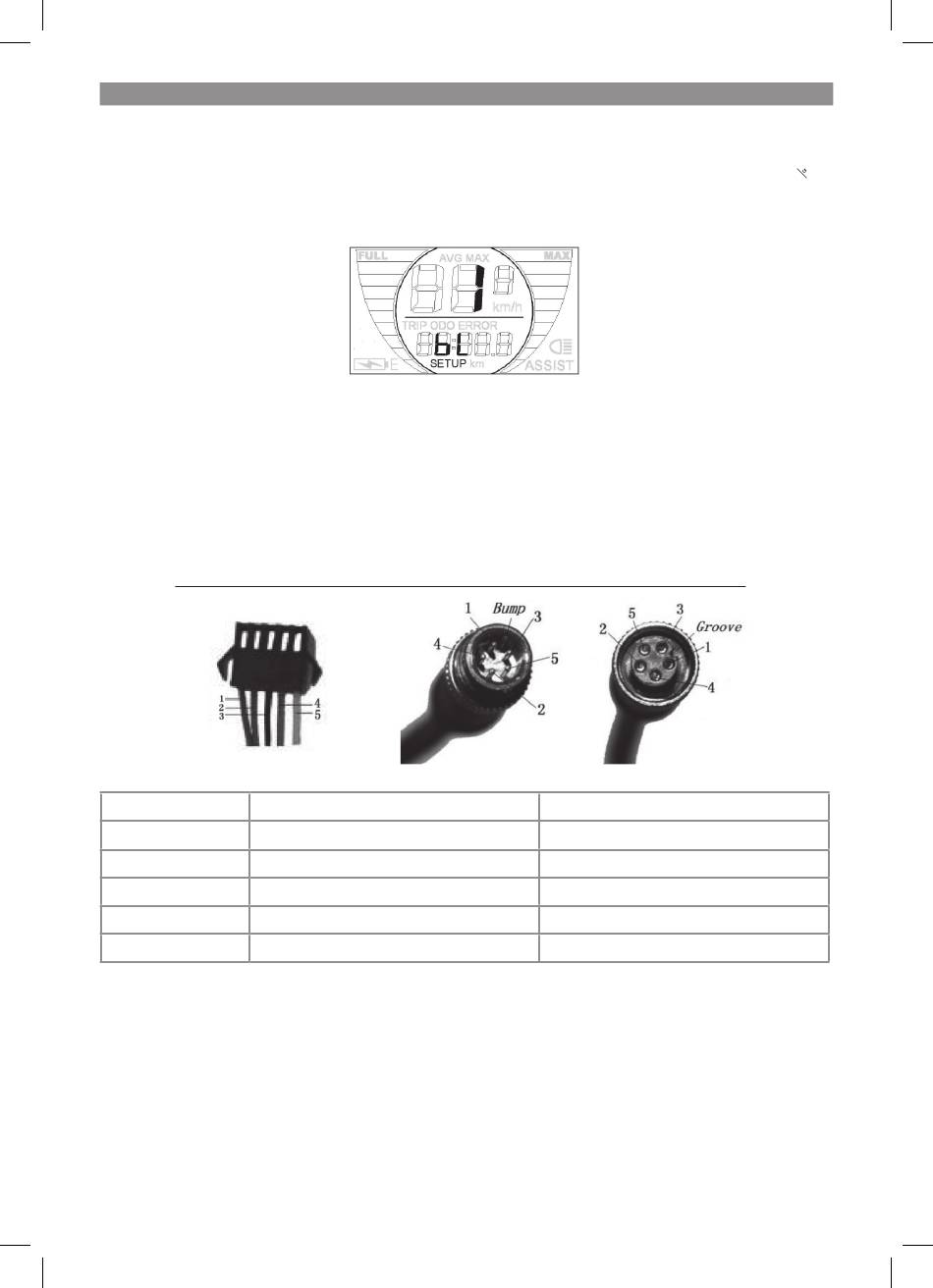

8. Connection layout

Following is the standard connector of display to connect the controller.
Standard Connector Standard Connector
Line sequence table
Line sequence
1
2
3
4
5
Some wire use the water-proof connector, users are not able to see the inside color.
Anl_Tacho_SPK7.indb 16
Backlight Brightness setting
Display-side terminal Display-side terminal
Color
Red (VCC)
Blue (K)
Black (GND)
Green (RX)
Yellow (TX)
GB
Terminal of plug-in wire Terminal of plug-in wire
Power +
Switch
Ground
Received Data
Transmitted Data
- 16 -
"
M
Function
