Connections on
optional boards
Siemens AG 6SE7087-6JK50
SIMOVERT MASTERDRIVES

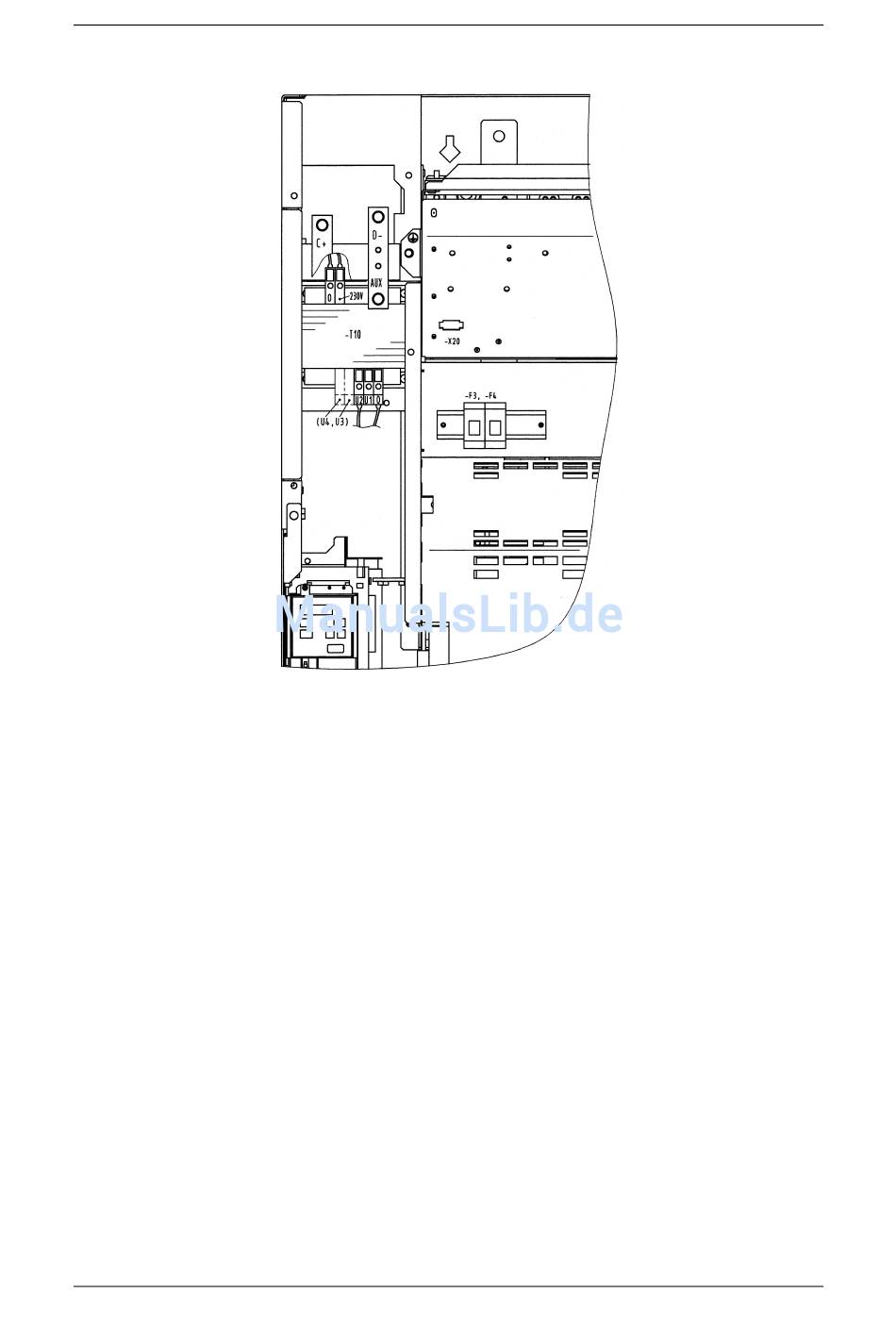

Fig. 7-3 Fan transformer (-T10), fan transformer fuses (-F3, -F4)
Each optional board is provided with additional connections which are
necessary for the function of the optional board - encoder connections,
bus connections or additional terminals.
You will find detailed information on the connections of the optional
boards in the corresponding documentation.
