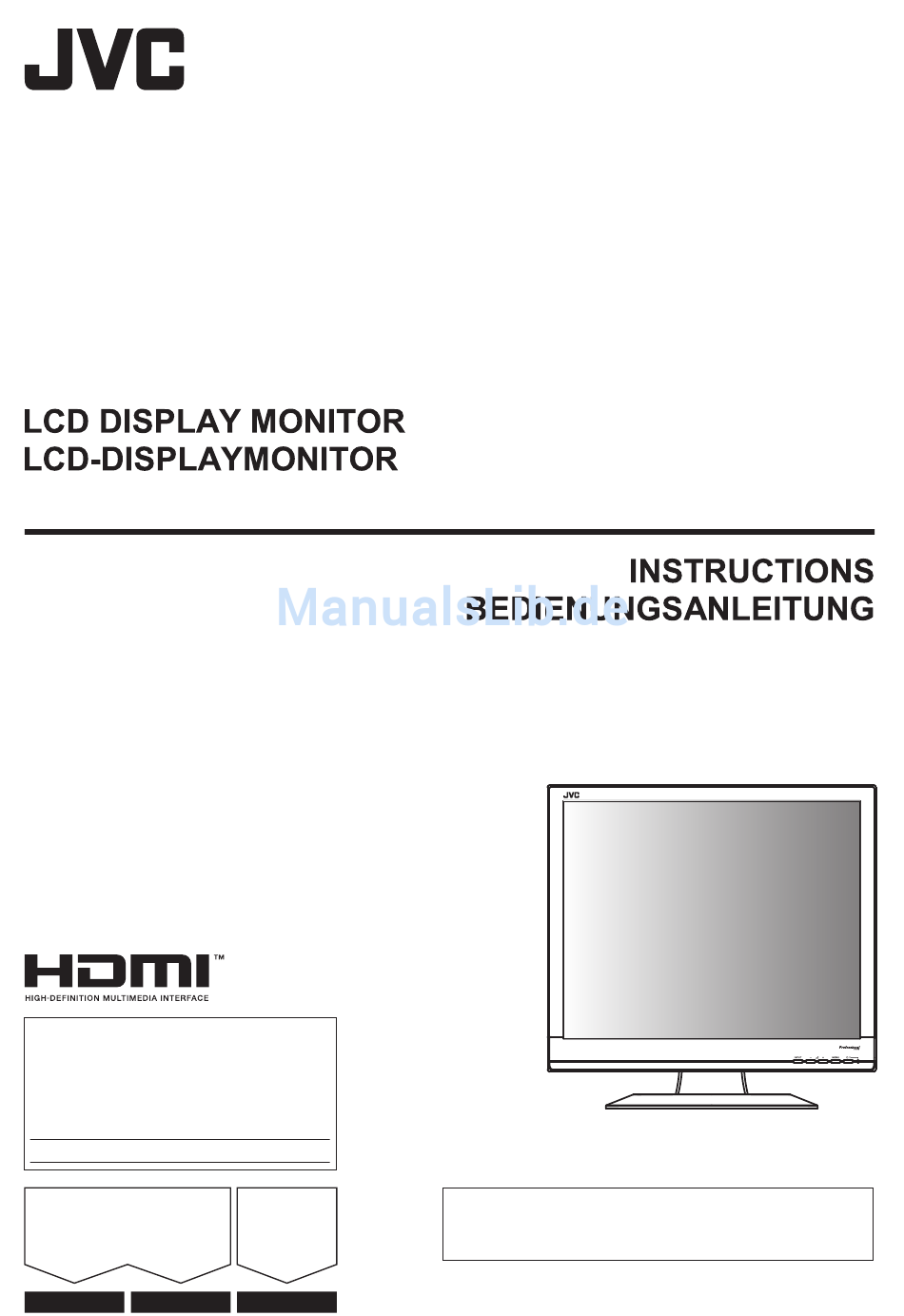

For Customer Use: Enter below the Serial No. which is located on the rear of the cabinet. Retain this information for future reference. (LM-193B shown) Model No. : LM-173B / LM-193B (Gezeigtes Modell ist LM-193B) Serial No. : イラストはLM-193Bです 日本国内向け...
Safety Precautions The lightning flash with arrowhead symbol, within an equilateral triangle is intended to CAUTION alert the user to the presence of uninsulated RISK OF ELECTRICAL SHOCK "dangerous voltage" within the product's DO NOT OPEN enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
Seite 3
Safety Precautions (cont.) • Before connecting other products such as VCR's and personal computers, you should turn off the power of this product for protection against electric shock. • Do not use attachments not recommended by the manufacturer as they may be hazardous. •...
Seite 4
Safety Precautions (cont.) IMPORTANT SAFETY INSTRUCTIONS 1. Read all of these instructions. 2. Save these instructions for later use. 3. Follow all warnings and instructions marked on the product. 4. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
Dear Customer, This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety. European representative of JVC KENWOOD Corporation is: JVC Technical Services Europe GmbH Konrad-Adenauer-Allee 1-11 61118 Bad Vilbel Germany Operating Precautions The LCD panel and backlight have life expectancy.
Seite 6
Information on Disposal of Old Electrical and Electronic Informazioni sull’eliminazione dei prodotti elettrici ed Equipment and Batteries (applicable for countries that have elettronici e delle batterie (per i Paesi che adottano la adopted separate waste collection systems) raccolta differenziata dei rifiuti) Products and batteries with the symbol (crossed-out I prodotti e le batterie recanti questa icona (bidone wheeled bin) cannot be disposed as household waste.
Seite 7
Информации за Отстранување на стара електрична и Bu ürün 28300 sayılı Resmi Gazete’de yayımlanan Atik електронска опрема и батерии (важи за земји кои имаат Elektrikli ve Elektronik Eşyalarin Kontrolü Yönetmeliğe uygun усвоено посебен отпад системи) olarak üretilmiştir. Производи и батерии со симбол (пречкртана бин) не...
Installation How to attach the STAND BASE. 1. Protect the monitor and screen by clearing a flat open area on your desk and placing a soft item like the monitor packaging bag on the desk for padding. Gently lay the screen face down on a flat clean padded surface. 2.
Seite 9
Controls Button Function Select input source. Decrease the level of volume. Increase the level of volume. Activates and exits the OSD. Turns on and off (on standby) the monitor. Operation of the power lamp Picture is displayed by delay of a few seconds from power lamp On. *Power On : Green On *Standby: Off *Power saving mode : Green blink...
First Time Installation When you turn on the power and the monitor, “First Time Installation” appears. Start setting referring to the menu configuration. For the setting items, see the pages below. “Language” ☞ “Language” on page 11 “No Sync Action” ☞ “No Sync Action” on page 11 “No Operation Action”...
Seite 11
Menu operation function list (cont.) Menu items Purpose Settings Scan Setting Select the aspects. OverScan / UnderScan / Full *VIDEO / S-VIDEO Exit Exit the Scan Setting menu. Image Auto Adjust Automatical adjustment of the screen position. Adjustment H Position Adjusts the horizontal position of the screen.
Specifications Model Name LM-193B LM-173B Screen Size 19.0 inches (Diagonal 482.6 mm) 17.0 inches (Diagonal 432 mm) 1280 pixels × 1024 pixels 1280 pixels × 1024 pixels Resolution 0.294 mm × 0.294 mm 0.264 mm × 0.264 mm Pixel Pitch Brightness (typ.)
Seite 13
LM-193B LM-173B (Gezeigtes Modell ist LM-193B) Vielen Dank für den Kauf dieses JVC-Produktes. Bevor Sie das Gerät in Betrieb nehmen, lesen Sie bitte die Anweisungen aufmerksam durch, um die bestmögliche The description page of Leistung zu gewährleisten. the European products.
Sicherheitsmaßnahmen WARNUNG : UM DIE GEFAHR VON BRÄNDEN ODER ELEKTRISCHEN SCHLÄGEN ZU VERMEIDEN, DIESES GERÄT NICHT REGEN ODER FEUCHTIGKEIT AUSSETZEN. ES DÜRFEN KEINE MIT FLÜSSIGKEIT GEFÜLLTEN BEHÄLTER WIE ETWA VASEN AUF DAS GERÄT GESTELLT WERDEN. Wichtige Sicherheitshinweise Elektrische Energie kann viele nützliche Funktionen ausführen. Dieses Gerät wurde zur Gewährleistung Ihrer Sicherheit entwickelt und hergestellt.
Seite 15
Sicherheitsmaßnahmen ( Fortsetzung • Denken Sie vor Anschluss anderer Produkte wie Videorekorder und Computer daran, diese Geräte zum Schutz vor Stromschlägen abzuschalten. • Verwenden Sie kein Zubehör, das nicht vom Hersteller empfohlen wurde; andernfalls kann dies Gefahren bergen. • Wenn Teile ersetzt werden müssen, achten Sie darauf, dass der Servicetechniker die vom Hersteller angegebenen bzw.
Seite 16
Sicherheitsmaßnahmen ( Fortsetzung Wichtige Sicherheitshinweise 1. Lesen Sie sämtliche Anweisungen. 2. Bewahren Sie diese Anweisungen zur späteren Nutzung auf. 3. Befolgen Sie alle Warnungen und Anweisungen am Produkt. 4. Ziehen Sie vor der Reinigung den Netzstecker. Verwenden Sie zur Reinigung keine flüssigen oder Sprühreiniger. Reinigen Sie das Produkt mit einem feuchten Tuch.
Verträglichkeit und elektrischer Sicherheit überein. Die europäische Vertretung für die JVC KENWOOD Corporation ist: JVC Technical Services Europe GmbH Konrad-Adenauer-Allee 1 – 11 61118 Bad Vilbel Deutschland Vorsichtshinweise zum Betrieb LCD-Panel und Hintergrundbeleuchtung haben eine beschränkte Lebenserwartung. Aufgrund der Eigenschaften von LCD-Bildschirmen kann es zu Nachbildern und ungleichmäßiger Anzeige kommen.
Seite 18
Installation Montage des Standfußes 1. Legen Sie den Fernseher mit der Bildfläche nach unten vorsichtig auf eine freie, weiche und flache Fläche, um den Monitor und den Bildschirm zu schützen. 2. Lassen Sie die Basis in den Monitor einrasten. * Einschieben, bis Sie ein Klicken hören. Basis-Richtung Vorderseite Wie man Abnehmen des Ständers.
Bedienung Taste Funktion Zur Auswahl der Eingangsquelle. Lautstärke verringern. Lautstärke erhöhen. Aktiviert und verlässt OSD. Schaltet den Monitor ein/aus (auf Bereitschaft). Die Betriebsanzeige Das Bild erscheint ein paar Sekunden nach Aufleuchten der Betriebsanzeige. * Eingeschaltet: Grünes Leuchten * Bereitschaft: Aus * Energiesparmodus: Grünes Blinken Zum Ein- und Ausschalten der Tastensperre halten Sie die MENU-Taste mindestens 10 Sekunden 10 sec.
Erstinstallation Beim ersten Einschalten der Stromversorgung und des Monitors erscheint die Meldung „First Time Installation(Erstinstallation)“. Starten Sie die Einstellung unter Bezug auf die Menükonfiguration. Für die Einstellpunkte siehe Seiten unten. • „Language“ ☞ „Sprache“ auf Seite 21 • „Sleep Mode“ ☞ „Sleep Mode“ auf Seite 21 •...
Seite 21
Menübedienung Funktionen Liste (Fortsetzung) Menüpunkte Zweck Einstellungen Scan Setting Scan Setting Bildformatauswahl. OverScan / UnderScan / Vollbild *VIDEO / S-VIDEO Ausgang Verlässt die Scan Setting. Bild Auto Abstimmung Automatische Einstellung der Bildposition. Anpassung Bildlage Horizontal Passt die horizontale Bildposition an. 0 - 100 Bildlage Vertikal 0 - 100...
Seite 32
主な仕様 型名 LM-193B LM-173B 画面サイズ 19V 型 (対角 482.6 mm) 17V 型 (対角 432 mm) 表示画素数 1280 ピクセル × 1024 ピクセル 1280 ピクセル × 1024 ピクセル ドットピッチ 0.294 mm × 0.294 mm 0.264 mm × 0.264 mm パネル輝度(標準値) 250 cd/m 250 cd/m コントラスト比(標準値)...
Seite 33
Available Signals / Verfügbare Signale / 対応信号フォーマット INPUT CONNECTOR / Input-Anschluss / 入力端子 Signal Name Status Display Signal-Name Status-Bildschirm 信号名 ステータス表示 BNC IN/S-VIDEO HDMI ー ー NTSC(3.58) NTSC ー ー BW/60 NTSC ー ー ー ー BW/50 ー ー 480/60i 720 x 480 ー...
Seite 34
Dimensions / Abmessungen / 外形寸法図 LM-193 418.4 M4 x 6mm [ Units : mm / Einheit : mm / 単位 : mm ] LM-173 371.9 M4 x 6mm [ Units : mm / Einheit : mm / 単位 : mm ] - 34-...
Troubleshooting Troubleshooting Troubleshooting Tips 1. Make sure if the power supply is connected property. The screen doesn’t show up 2. Turn on the power. 3. Select the correct input signal with INPUT button. Adjusts the Brightness in the Menu. The screen is too light or to dark The screen size is not fit for the PC signal Select the “Auto Adjust”...
