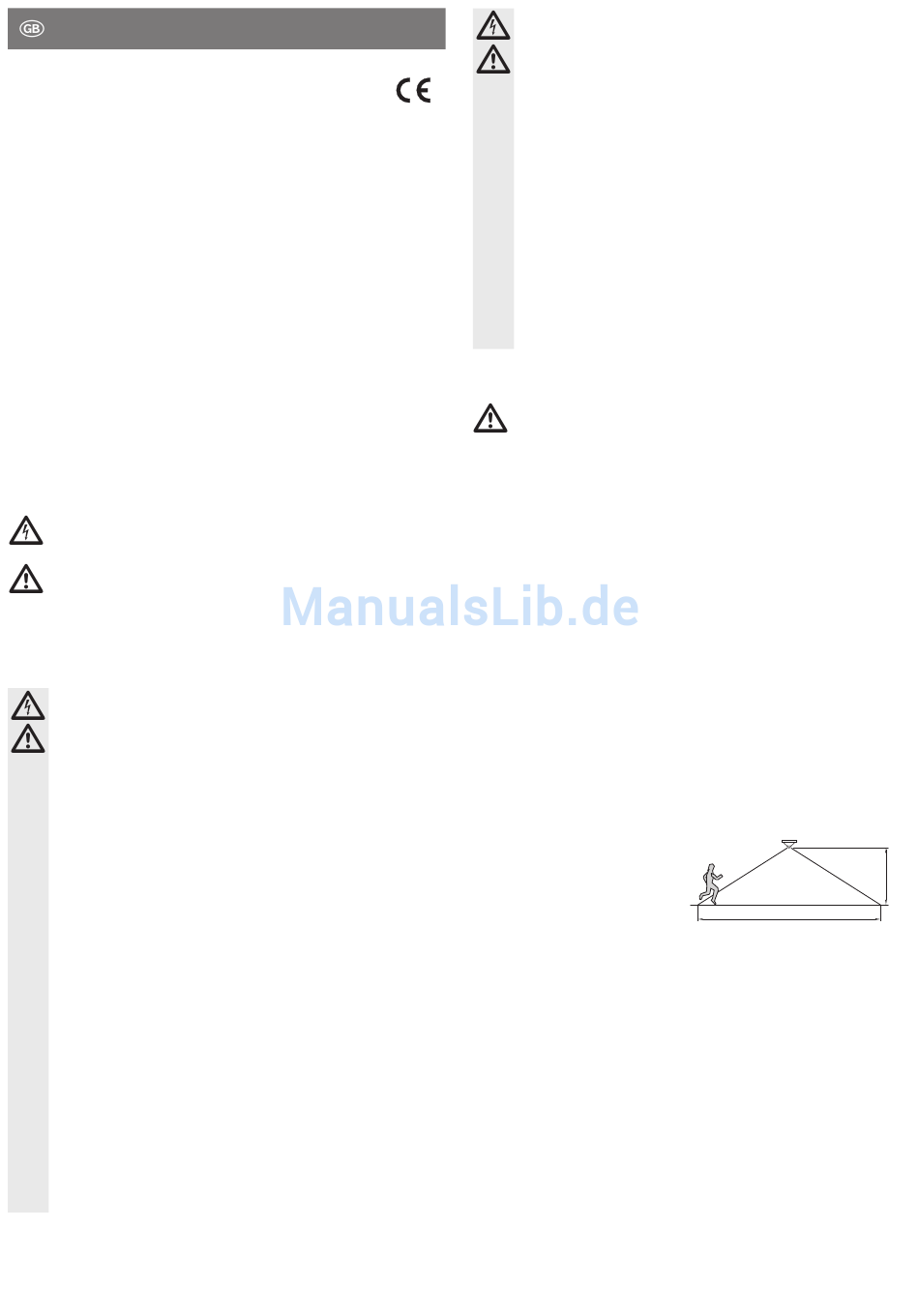

O P E R A T I N G I N S T R U C T I O N S
Ceiling motion switch
Item no. 61 07 09
Intended use
The PIR motion detector integrated in the motion switch responds to temperature changes
within the detection range, e.g. if a person, a large animal or a car enters the detection area.
For this reason, the motion switch can be used for monitoring entrances, staircases etc.
The motion switch' output, for example, can be used for controlling a light or another powered
device.
Any other use than that described above may damage the product. Moreover, this may give
rise to hazards such as short-circuiting, fi re, electric shock, etc. No part of the product may be
modifi ed or converted!
Always observe the safety instructions included in these operating instructions. Please read the
operating instructions carefully and keep them.
This product complies with the applicable National and European requirements. All names of
companies and products are the trademarks of the respective owner. All rights reserved.
Package Contents
• Motion switch
• Operating Instructions
Explanation of Symbols, Inscriptions
This symbol indicates a health hazard, e.g. electric shock.
The exclamation mark indicates specifi c risks associated with handling, function and
use.
☞
The "Hand" symbol indicates special tips and operating information.
Safety Instructions
Read the complete operating manual carefully before using the product as it
contains important information about the correct installation and operation.
The warranty will be void in the event of damage caused by failure to observe
these safety instructions! We do not assume any liability for any consequen-
tial damage!
Nor do we assume any liability for material and personal damage caused by
improper use or non-compliance with the safety instructions! The warranty
will be void in such cases!
Caution!
This product may only be installed by a qualifi ed technician (e.g., an electri-
cian) who is familiar with the relevant regulations (e.g., VDE, German electrical
wiring regulations)!
Improper work, carried out on the mains voltage, endangers not only your
own life but also the life of others!
If you do not have the expertise required for the installation, do not install it
yourself but ask a qualifi ed technician.
• The unauthorised conversion and/or modifi cation of the product is not allowed for
safety and approval reasons (CE).
• The product is not a toy and must be kept out of the reach of children! There is a
risk of a lethal electric shock!
• The product may only be operated on the mains voltage (see section „Connection"
and „Technical Data"). Never try to operate the product at another voltage as this
will cause its destruction.
• This product is only to be installed and used in dry conditions indoors. The product
must not get damp or wet as there is danger of a fatal electric shock!
• Only use the product when it is fi rmly mounted/steady.
• Do not use the motion switch in rooms, or in adverse ambient conditions, where
combustible gases, vapours or dust are or may be present! There is a risk of
explosion!
www.conrad.com
Version 12/12
Preparations for Installation
• Keep a minimum distance of at least 1 m to lights and other heat sources, in order to avoid
malfunctions or switching errors.
• Only install the motion switch on a stable surface. Only use the motion switch when it is
securely mounted.
• The motion switch can be installed indoors underneath a horizontal surface (e.g. ceiling). The
device can also be mounted on a vertical wall.
• The motion switch must be voltage-free during installation. Turn the power off by removing
the electric circuit fuse or switching off at the circuit breaker. Secure it against unauthorised
reconnection, e.g., with a danger sign.
Furthermore, turn off the earth leakage circuit breaker in order to disconnect all the poles of
the mains supply.
• Check that the mains connection is current free with a suitable tester.
Function of the motion switch
The PIR-motion detector integrated in the motion switch responds to temperature changes
within the detection range, e.g. if a person or an animal, with a temperature different from the
background, enters the detection area.
To ensure optimal detection, the motion switch must be placed so the object to be detected
does not approach the motion switch directly but rather passes through the detection area from
left to right or vice versa. Keep this in mind, when installing the product.
The range for detecting motion is determined by several factors:
• The motion switch's installation height
• Temperature difference between the mov-
ing object and the background (ambient)
• The size of the object
• Distance of the object from the motion
switch
• Direction and speed of the movement
• Ambient temperature
After switching on the mains voltage, it takes about 60 seconds until the motion detector has
adjusted to the background temperature and is able to recognise changes in temperature within
the detection area.
The detection range can be restricted by covering the diffusion panel of the motion switch with
opaque adhesive tape.
• The product must not be exposed to extreme temperatures, strong vibrations or
heavy mechanical loads.
• If you have reason to assume that safe operation is no longer possible, disconnect
the product immediately and secure it against inadvertent operation. Let an expert
check the product.
A safe operation can no longer be assumed, if:
- the product shows visible signs of damage,
- the product does not work at all or well (fl ickering light, leaking smoke or a smell
of burning, the light fl ickers, audible cracking noises, discolouration to the product
or the adjacent surfaces.)
- the product was stored under unfavourable conditions
- it was exposed to heavy loads during transport
• Do not leave packaging material carelessly lying around since it could become a
dangerous plaything for children.
• In commercial institutions, the accident prevention regulations of the employer's
liability insurance association for electrical systems and operating facilities are to
be observed!
• If you have any questions that are not answered in this manual, please contact our
technical service or another specialist.
Please refer to the section "Safety Information"!
2,5 m
Ø ~12 m
