Anleitung HT 1600-1801-F

Technical data:

Maximum operating pressure in bar: 100
Maximum volumetric flow in l/min: 6,5
Mains voltage:
Motor rating in kW:
Type of protection:
Insulation class:
Maximum temperature of water supply in °C:
Maximum pressure of water supply in bar:
Fusing in amps:
Motor speed in rpm:
Motor protection:
Oil filling in kg:
Oil grade:
Weight of unit:
The power of recoil is less than 20 N.
The workplace-related noise level is 79 dB(A).

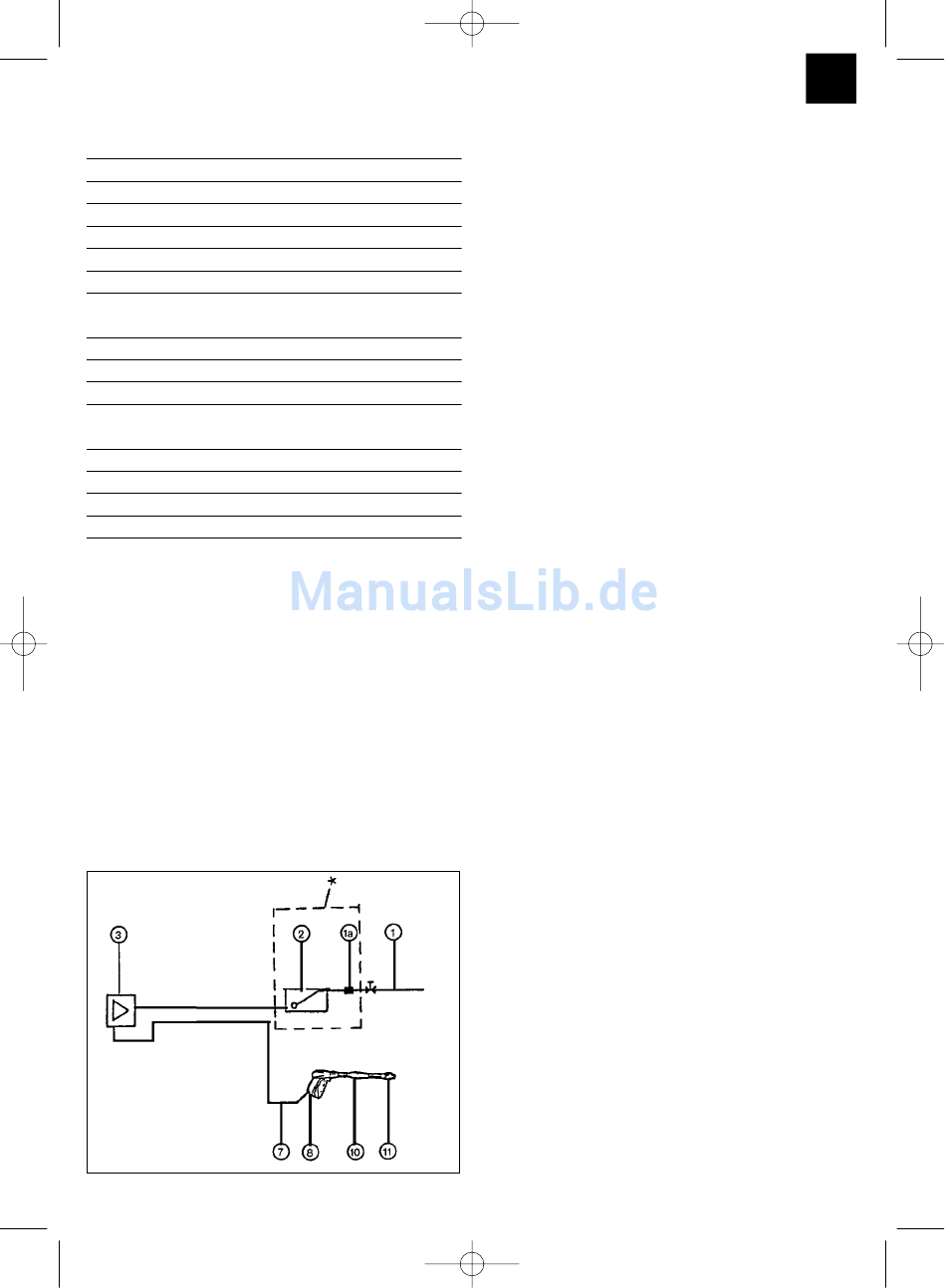

Function diagram:

1 Water supply
1a Non-return valve with pipe aerator (available as
an accessory from your dealer)
2 Receiver container (available as an accessory
from your dealer)
3 High-pressure water pump
7 High-pressure hose
8 Pistol
10 Lance
11 Nozzle head with nozzle
* These components are not supplied by Einhell.
09.11.2001 7:51 Uhr
HT 1600 HT 1800, -F
100
230 V - 50 Hz
1,6
IP 44
60
(temporary operation)
10
16
2800
Thermal overload protection
in winding
0.25
15 W-40
14 kg
Seite 11

Description of function

The 3-piston, radial high-pressure pump is driven by
a single-phase AC asynchronous motor with running
7
capacitor acting directly via a swash plate. When the
unit is switched on and the catch trigger (on the
piston) is pulled, the pump pumps water through the
high-pressure hose, the pistol and the lance and out
through the nozzle. The nozzle head can be turned to
F
the left or right for spraying with a round jet or fan jet
in each of the two pressure ranges (high and low).
Important:
Read these operating instructions thoroughly
before you put the unit into operation.

Safety regulations

1. Inspect the power supply cable regularly for
signs of damage, and only use if in perfect
condition.
2. Use only H05RN-F rubber-sheathed cable in
accordance with DIN 57 282 Part 1 / VDE 0282
Part 1 for the power supply cable.
3. The operator of the unit must make sure that no
children or other persons are in the cleaner´s
direct area of action.
4. When the unit is not in use or when it is being
moved, switch off the motor and remove the
power supply cable from the mains socket.
5. Connect the high-pressure cleaner only to mains
sockets which are protected with an earth-
leakage circuit-breaker. The tripping current
must not exceed 30 mA.
6. The connector socket of an extension cable must
be spray-water-proof.
7. Connector sockets on power supply cables must
be made of rubber, soft PVC or some other
thermoplastic material of equivalent mechanical
stability.
8. Keep children away from the unit when it is
connected to the mains.
9. Never point the high-pressure jet at persons as
this can cause injury! Never point the high-
pressure jet at electrical devices!
10. Wear suitable clothing that provides adequate
protection in the event of accidental contact with
the jet.
11. The cleaner must not be used for cleaning
clothes and shoes while they are being worn!
12. Defective hoses must be replaced with new ones
immediately.
GB
11
