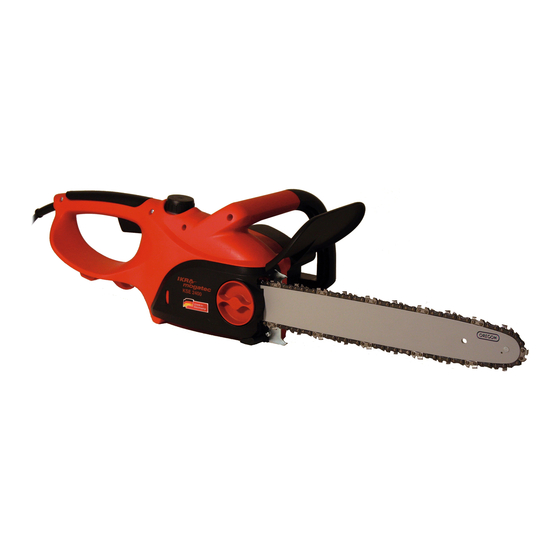

KSE 2400 Elektro-Kettensäge Electric Chainsaw Gebrauchsanweisung - Originalbetriebsanleitung Vor Inbetriebnahme Gebrauchsanweisung lesen! Operating Instructions - Translation of the original Operating Instructions Read operating instructions before use!
Seite 3
DE A Fällrichtung B Gefahrenzone C Fluchtbereich GB A Felling direction B Danger area C Escape area Schnittrichtung beim Entasten Limbing 50 mm Fällschnitt felling back Fällrichtung direction of fall Kerbe 50 mm notch Steg hinge Vom Boden fernhalten. Unterstützende Äste stehen lassen, bis der Stamm zersägt ist Leave larger lower limbs to support the log off the ground.
Seite 4
Zweiter Schnitt von oben �2�3 �urch� �2�3 �urch� Schnitt von oben ausführen messer) auf Höhe des ersten Schnitts Nicht in den Boden sägen �um Einklemmen zu vermeiden) Then make the finished cut by over� Cut from the top bucking to meet the first cut. �on’t let the chain contact the ground Erster Schnitt von unten �1�3 �urch�...
Seite 5
�E 1 Oil inspection window (see Fig. 2) 1 Ölsichtfenster (siehe Abb. 2) 2 Front handle 2 Vorderer Handgriff 3 Oil tank cap 3 Öltankverschluss 4 Front hand protection 4 Vorderer Handschutz 5 Blade 5 Schwert 6 Saw chain 6 Sägekette 7 T-screw 7 Knebelschraube 8 Pinion lid...
DE | Gebrauchsanweisung INHALTSVERZEICHNIS Seite 1. Vorwort zur Bedienungsanleitung DE-2 2. Abbildung und Erklärung der Piktogramme DE-2 3. Technische Daten DE-2 4. Allgemeiner Sicherheitshinweis DE-3 5. Allgemeine Sicherheitshinweise für Elektrowerkzeuge DE-3 1) Arbeitsplatzsicherheit 2) Elektrische Sicherheit 3) Sicherheit von Personen 4) Verwendung und Behandlung des Elektrowerkzeuges 5) Service 6) Emissionen...
| DE Gebrauchsanweisung Elektro-Kettensäge 1. Vorwort zur Gebrauchsanweisung Diese Gebrauchsanweisung soll erleichtern, die Maschine kennenzulernen und ihre bestimmungsgemäßen Einsatzmöglich- keiten zu nutzen. Die Gebrauchsanweisung enthält wichtige Hinweise, die Maschine sicher, sachgerecht und wirtschaftlich zu betreiben und damit, Gefahren zu vermeiden, Reparaturen und Ausfallzeiten zu vermindern und die Zuverlässigkeit und Lebensdauer der Maschine zu erhöhen.
DE | Gebrauchsanweisung 4. Allgemeiner Sicherheitshinweis d) Zweckentfremden Sie das Kabel nicht, um das Elektrowerkzeug zu tragen, aufzuhängen oder um den Stecker aus der Steckdose zu ziehen. Angaben zur Geräuschemission gemäß Produktsicher- Halten Sie das Kabel fern von Hitze, Öl, schar- heitsgesetz (ProdSG) bzw.
Seite 9
| DE Gebrauchsanweisung zung des Elektrowerkzeuges von dem Anga- ser Einrichtungen verringert Gefährdungen durch Staub. bewert unterscheiden, abhängig von der Art und Weise, wie das Elektrowerkzeug verwendet 4) Verwendung und Behandlung des Elektrowerk- wird. zeuges - Achtung : legen Sie zum Schutz vor vibrations- a) Überlasten Sie das Gerät nicht.
DE | Gebrauchsanweisung • Nur Holz sägen. Die Kettensäge nicht für Arbeiten 3. Bewahren Sie diese Gebrauchsanweisung stets zu- verwenden, für die sie nicht bestimmt ist – Bei- sammen mit der Kettensäge auf. spiel: Verwenden Sie die Kettensäge nicht zum 4.
| DE Gebrauchsanweisung c) Hinweise zur Rückschlaggefahr Grund halten (Vorsicht, keine Bodenberührung!). Zeigt sich eine Ölspur, arbeitet die Kettenschmierung ein- 23. Verwenden Sie möglichst einen Sägebock. wandfrei. 24. Behalten Sie stets die Schwertspitze im Auge • Legen Sie nach Gebrauch die Kettensäge waagerecht 25.
DE | Gebrauchsanweisung 3. Anschluss der Kettensäge (Abb. 5 ) Achten Sie darauf, dass vor Inbetriebnahme der Ket- tensäge immer der Handschutz 4 in der Betriebspo- Wir empfehlen, die Kettensäge zusammen mit ei- sition eingerastet ist. Dazu Handschutz nach hinten ner Fehlerstromschutzeinrichtung zu betreiben ziehen in Richtung Handgriff.
| DE Gebrauchsanweisung b) Kerbschnitt setzen berührt. Nach Fertigstellung des Schnitts den Stillstand der Sägekette abwarten, bevor man die Kettensäge dort Sägen Sie im rechten Winkel zur Fallrichtung eine Kerbe entfernt. Den Motor der Kettensäge immer ausschalten, mit einer Tiefe von 1/3 des Baumdurchmessers, wie in bevor man von Baum zu Baum wechselt.
DE | Gebrauchsanweisung • Kette läuft nicht: Stellung des Handschutzes über- Bruch sowie mutwillige Motorüberlastung entstanden prüfen (siehe Abb. 6). Kette läuft nur bei gelöster sind. Garantieaustausch erstreckt sich nur auf defekte Bremse. Teile, nicht auf komplette Geräte. Garantiereparaturen • Starke Funkenbildung am Motor: Motor oder Kohle- dürfen nur von autorisierten Werkstätten oder vom bürste beschädigt.
Seite 15
Operating Instruction | GB CONTENT Page 1. Introduction to the Operating Instructions GB-2 2. Illustration and explanation of pictograms GB-2 3. Technical Data GB-2 4. General safety instructions GB-3 5. General safety information for power tools GB-3 1) Safety at the workplace 2) Electrical safety 3) Personal safety 4) Use and handling of the power tool...
GB | Operating Instruction Electric Chainsaw 1. Introduction to the Operating Instructions These Operating Instructions are intended to facilitate your becoming acquainted with the machine and using it in accordance with the regulations. The Operating Instructions contain important information on how to use the machine safely, correctly and economically.
Operating Instruction | GB 4. General safety instructions f) If the operation of a power tool in a moist envi- ronment cannot be avoided it is highly recom- Noise emission information in accordance with the Ger- mended to use a residual current device (RCD). man Equipment and Product Safety Act (ProdSG) and The use of an RCD reduces the risk of electric the EC Machine Directive: the noise pressure level at...
Seite 18
GB | Operating Instruction the tool or these instructions. Power tools are • Do not operate the chain saw on trees. Operating dangerous if used by inexperienced persons. a chain saw while situated on a tree involves a high e) Thoroughly maintain your power tool. Check risk of injury.
Operating Instruction | GB When proper precautions are taken the operator will a value of 16 A and mustn’t be used by other con- be able to control the power of a kickback. Never let sumers while working with the chain saw. go of the chain saw! 15.
GB | Operating Instruction Biological chainsaw oil should be available everywhere regularly. When the chain warms up to operating tem- at your local specialist dealer. perature it will expand and must be retightened. A new Do not use old oil. This will damage the chainsaw and will saw chain will have to be tightened more frequently until also lead to loss of the guarantee.
Operating Instruction | GB for the chain. In the case of uncontrolled movements, tend back and diagonally to the rear of the expected line when the tip of the sax blade gets in contact with wood of fall as illustrated in Figure 8. or a solid object, the drive of the chain is immediately Before felling is started, consider the natural lean of the stopped by activation of the hand guard 4, the motor will...
GB | Operating Instruction side of the log, as illustrated in Figure 14. When “cutting saw to a specialised workshop or the works after-sales through”, to maintain complete control release the cutting service. • Chain does not run: Check position of handguard pressure near the end of the cut without relaxing your grip on the chain saw handles.
Operating Instruction | GB 16. Service and breaking as well as mischievous overloading of the motor are excluded from this warranty. Warranty replace- ikramogatec- Service ment does only include defective parts, not complete MOGATEC Moderne Gartentechnik GmbH devices. Warranty repair shall exclusively be carried Im Grund 14 out by authorized service partners or by the company‘s customer service.
