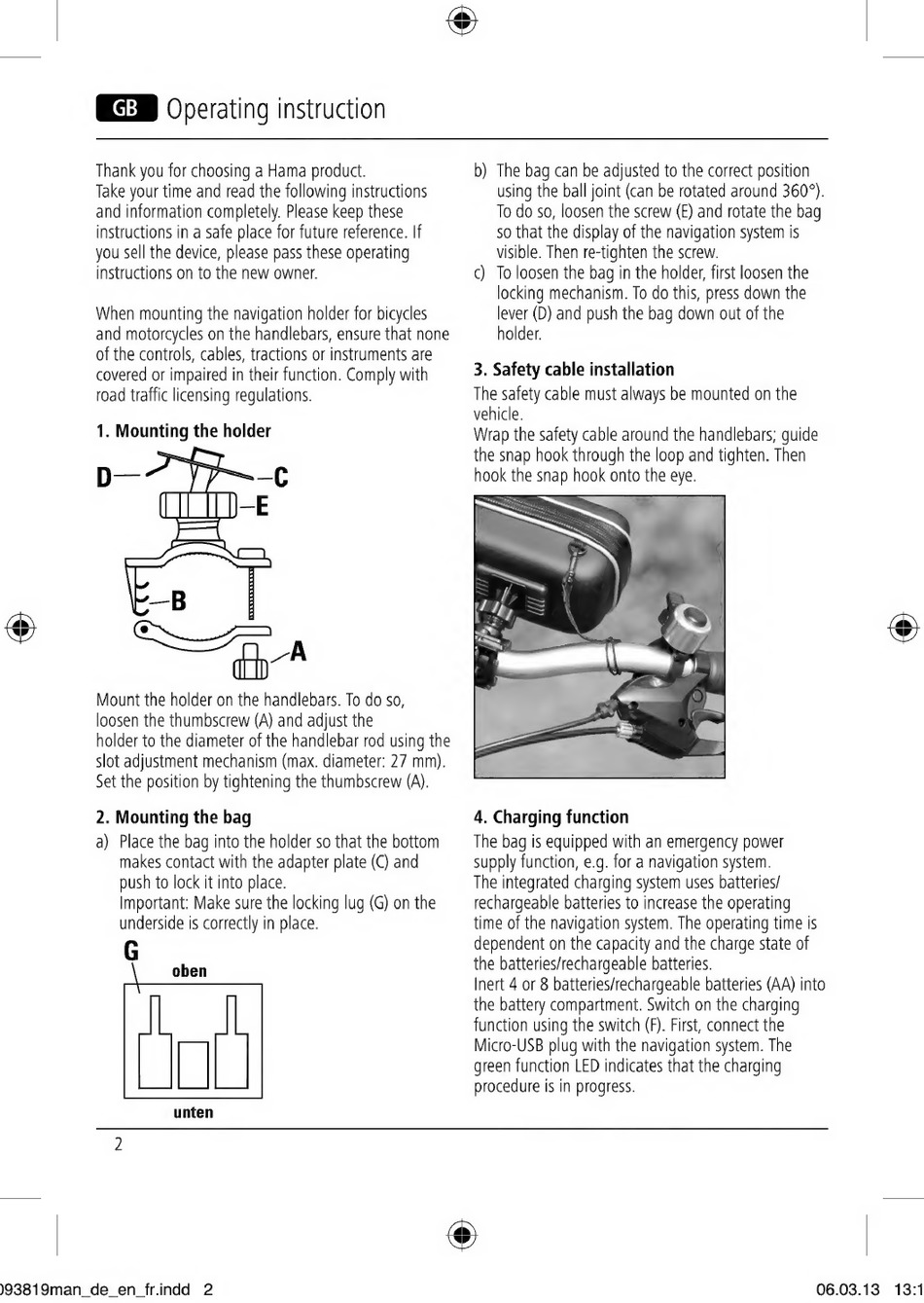

Operating instruction
Thank you for choosing a Hama product.
Take your time and read the following instructions
and information completely. Please keep these
instructions in a safe place for future reference. If
you sell the device, please pass these operating
instructions on to the new owner.
When mounting the navigation holder for bicycles
and motorcycles on the handlebars, ensure that none
of the controls, cables, tractions or instruments are
covered or impaired in their function. Comply with
road traffic licensing regulations.
Mount the holder on the handlebars. To do so,
loosen the thumbscrew (A) and adjust the
holder to the diameter of the handlebar rod using the
slot adjustment mechanism (max. diameter: 27 mm).
Set the position by tightening the thumbscrew (A).
2. Mounting the bag
a) Place the bag into the holder so that the bottom
makes contact with the adapter plate (C) and
push to lock it into place.
Important: Make sure the locking lug (G) on the
underside is correctly in place.
oben
unten
b) The bag can be adjusted to the correct position
using the ball joint (can be rotated around 360°).
To do so, loosen the screw (E) and rotate the bag
so that the display of the navigation system is
visible. Then re-tighten the screw.
O La
To loosen the bag in the hold
er, first loosen the
locking mechanism. To do this, press down the
lever (D) and push the bag down out of the
holder.
3. Safety cable installation
The safety cable must always be
vehicle.
mounted on the
Wrap the safety cable around the handlebars: guide
the snap hook through the loop and tighten. Then
hook the snap hook onto the eye.
4. Charging function
The bag is equipped with an emergency power
supply function, e.g. for a navigation system.
The integrated charging system uses batteries/
rechargeable batteries to increase the operating
time of the navigation system. The operating time is
dependent on the capacity and t
Inert 4 or 8 batteries/rechargeab
the battery compartment. Switch
Micro-USB plug with the navigat
he charge state of
the batteries/rechargeable batteries.
e batteries (AA) into
on the charging
unction using the switch (F). First, connect the
jon system. The
green function LED indicates that the charging
procedure is in progress.
@
