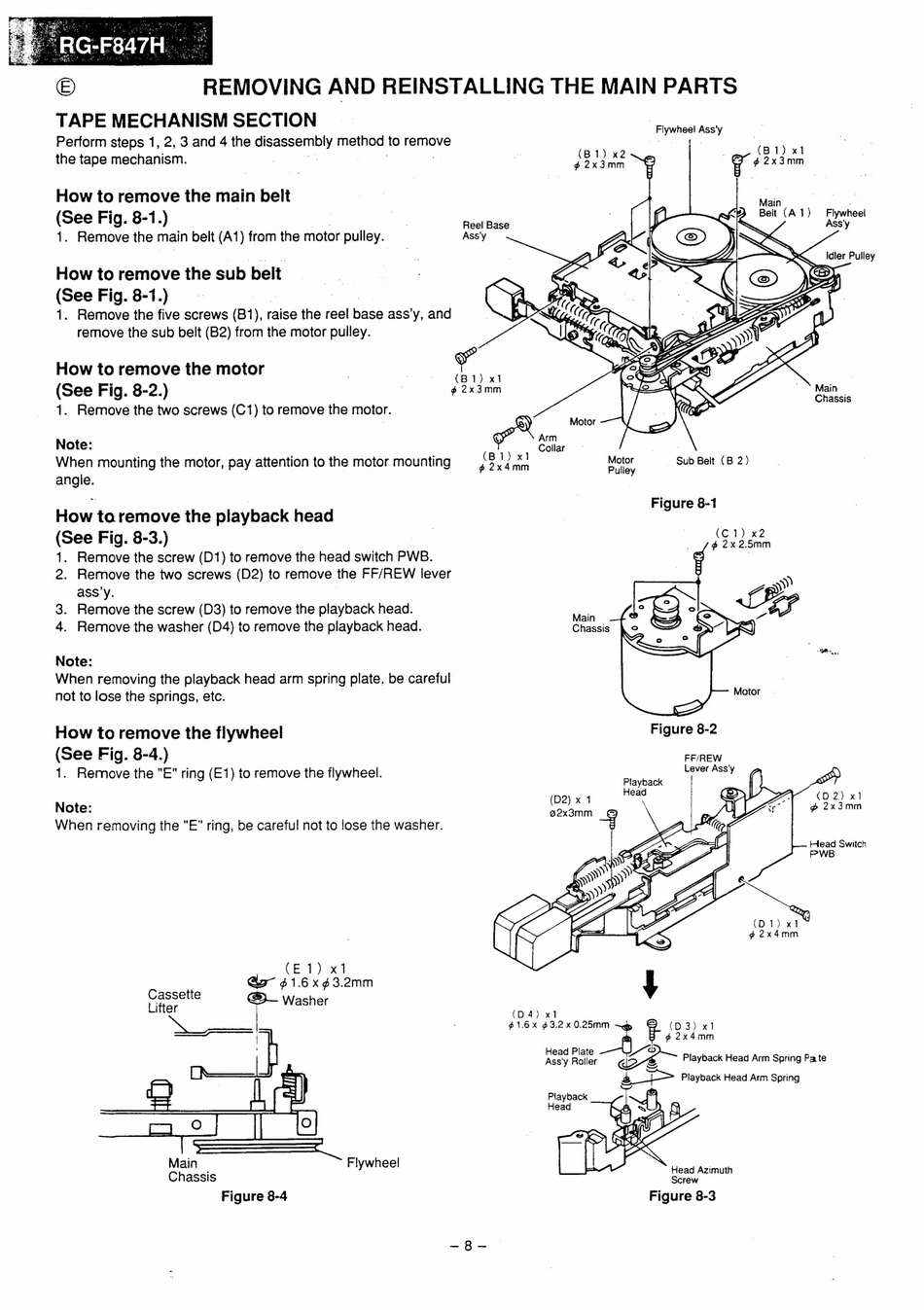

TAPE MECHANISM SECTION
Perform steps 1, 2, 3 and 4 the disassembly method to remove
the tape mechanism.
7
oe
|
|
How to remove the main belt
(See Fig. 8-1.)
1. Remove the main belt (A1) from the motor pulley.
How to remove the sub belt
(See Fig. 8-1.)
-
3,
1. Remove the five screws (B1), raise the reel base ass'y, and
remove the sub belt (B2) from the motor pulley.
How to remove the motor
(See Fig. 8-2.)
1. Remove the two screws (C1) to remove the motor.
Note:
When mounting the motor, pay attention to the motor mounting
angle.
How taremove the playback head
(See Fig. 8-3.)
1. Remove the screw (D1) to remove the head switch PWB.
Remove the two screws (D2) to remove the FF/REW lever
ass'y.
|
Remove the screw (D3) to remove the playback head.
Remove the washer (D4) to remove the playback head.
2.
3.
4.
Note:
When removing the playback head arm spring plate. be careful
not to lose the springs, etc.
How to remove the flywheel
(See Fig. 8-4.)
1. Remove the "E" ring (E1) to remove the flywheel.
Note:
When removing the "E" ring, be careful not to lose the washer.
(E 1) x1
AQs~ $1.6x¢3.2mm
@~— washer
Cassette
Lifter
Flywheel
Chassis
Figure 8-4
REMOVING AND REINSTALLING THE MAIN PARTS
| Flywheel Ass'y
(B1) x2
|
(BI) xt
g2x3mm
©
ee
Main
|
~
Beit (A 1)
Flywheel
Reel Base
Ass'y
Ass'y
>
SN
LN
Idler Pulley
(ee
Main
Chassis
Motor
Arm
(B1)
x1 Coilar
x
¢ 2x4mm
Motor
_ Sub Beit (B 2)
Pulley
Figure 8-1
Main
Chassis
les
Figure 8-2
FF/REW
Lever Ass'y
Playback
:
{D2} x 1
(D2)
x1
g@2x3mm
Perm
Head Switch
PWB
(D4)
¢1.
(370)
¢ 2x4mm
4)
xl
x
3.2 x —_:
t
fe Aolice
Dee
ae Playback Head Arm Spring Pa te
& {>
Playback Head Arm Spring
Playback
Head
Head Azimuth
Screw
Figure 8-3
