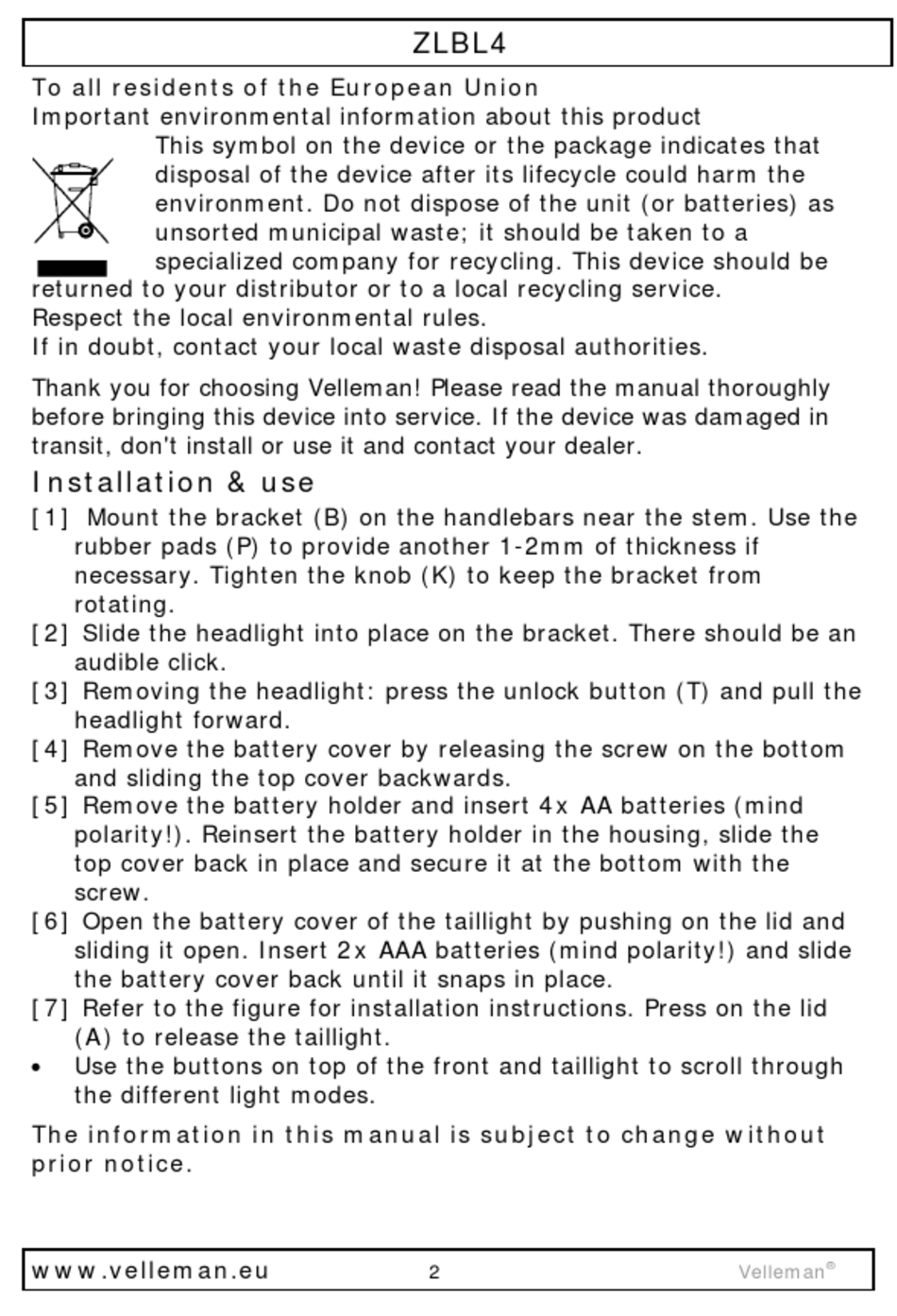

Velleman ZLBL4 Bedienungsanleitung Seite 2

To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that
disposal of the device after its lifecycle could harm the
environment. Do not dispose of the unit (or batteries) as
unsorted municipal waste; it should be taken to a
specialized company for recycling. This device should be
returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing Velleman! Please read the manual thoroughly
before bringing this device into service. If the device was damaged in
transit, don't install or use it and contact your dealer.
Installation & use
[1] Mount the bracket (B) on the handlebars near the stem. Use the
rubber pads (P) to provide another 1-2mm of thickness if
necessary. Tighten the knob (K) to keep the bracket from
rotating.
[2] Slide the headlight into place on the bracket. There should be an
audible click.
[3] Removing the headlight: press the unlock button (T) and pull the
headlight forward.
[4] Remove the battery cover by releasing the screw on the bottom
and sliding the top cover backwards.
[5] Remove the battery holder and insert 4x AA batteries (mind
polarity!). Reinsert the battery holder in the housing, slide the
top cover back in place and secure it at the bottom with the
screw.
[6] Open the battery cover of the taillight by pushing on the lid and
sliding it open. Insert 2x AAA batteries (mind polarity!) and slide
the battery cover back until it snaps in place.
[7] Refer to the figure for installation instructions. Press on the lid
(A) to release the taillight.
 Use the buttons on top of the front and taillight to scroll through
the different light modes.
The information in this manual is subject to change without
prior notice.
