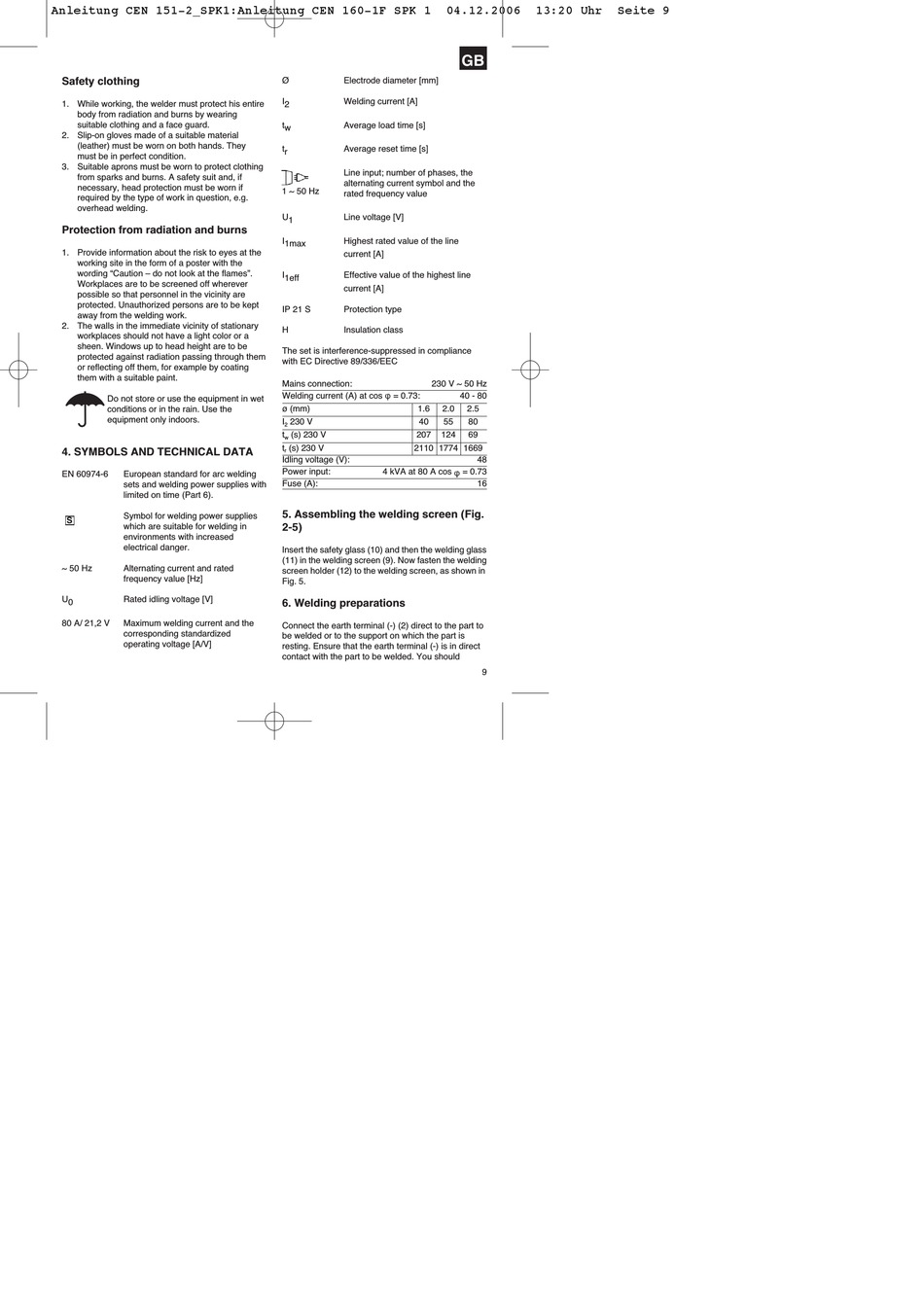

Safety clothing
1. While working, the welder must protect his entire
body from radiation and burns by wearing
suitable clothing and a face guard.
2. Slip-on gloves made of a suitable material
(leather) must be worn on both hands. They
must be in perfect condition.
3. Suitable aprons must be worn to protect clothing
from sparks and burns. A safety suit and, if
necessary, head protection must be worn if
required by the type of work in question, e.g.
overhead welding.
Protection from radiation and burns
1. Provide information about the risk to eyes at the
working site in the form of a poster with the
wording "Caution – do not look at the flames".
Workplaces are to be screened off wherever
possible so that personnel in the vicinity are
protected. Unauthorized persons are to be kept
away from the welding work.
2. The walls in the immediate vicinity of stationary
workplaces should not have a light color or a
sheen. Windows up to head height are to be
protected against radiation passing through them
or reflecting off them, for example by coating
them with a suitable paint.
Do not store or use the equipment in wet
conditions or in the rain. Use the
equipment only indoors.
4. SYMBOLS AND TECHNICAL DATA
EN 60974-6 European standard for arc welding
sets and welding power supplies with
limited on time (Part 6).
Symbol for welding power supplies
S
which are suitable for welding in
environments with increased
electrical danger.
~ 50 Hz Alternating current and rated
frequency value [Hz]
U 0 Rated idling voltage [V]
80 A/ 21,2 V Maximum welding current and the
corresponding standardized
operating voltage [A/V]
04.12.2006
Ø Electrode diameter [mm]
I 2 Welding current [A]
t w Average load time [s]
t r Average reset time [s]
Line input; number of phases, the
alternating current symbol and the
1 ~ 50 Hz
rated frequency value
U 1 Line voltage [V]
I 1max Highest rated value of the line
current [A]
I 1eff Effective value of the highest line
current [A]
IP 21 S Protection type
H Insulation class
The set is interference-suppressed in compliance
with EC Directive 89/336/EEC
Mains connection: 230 V ~ 50 Hz
Welding current (A) at cos Ê = 0.73:
ø (mm) 1.6 2.0
I 230 V 40 55
2
t (s) 230 V 207 124
w
t (s) 230 V 2110 1774 1669
r
Idling voltage (V):
Power input: 4 kVA at 80 A cos Ê = 0.73
Fuse (A):
5. Assembling the welding screen (Fig.
2-5)
Insert the safety glass (10) and then the welding glass
(11) in the welding screen (9). Now fasten the welding
screen holder (12) to the welding screen, as shown in
Fig. 5.
6. Welding preparations
Connect the earth terminal (-) (2) direct to the part to
be welded or to the support on which the part is
resting. Ensure that the earth terminal (-) is in direct
contact with the part to be welded. You should
13:20 Uhr Seite 9
GB
40 - 80
2.5
80
69
48
16
9
