Endress+Hauser Fieldgate FXA320 Technische Information Seite 9

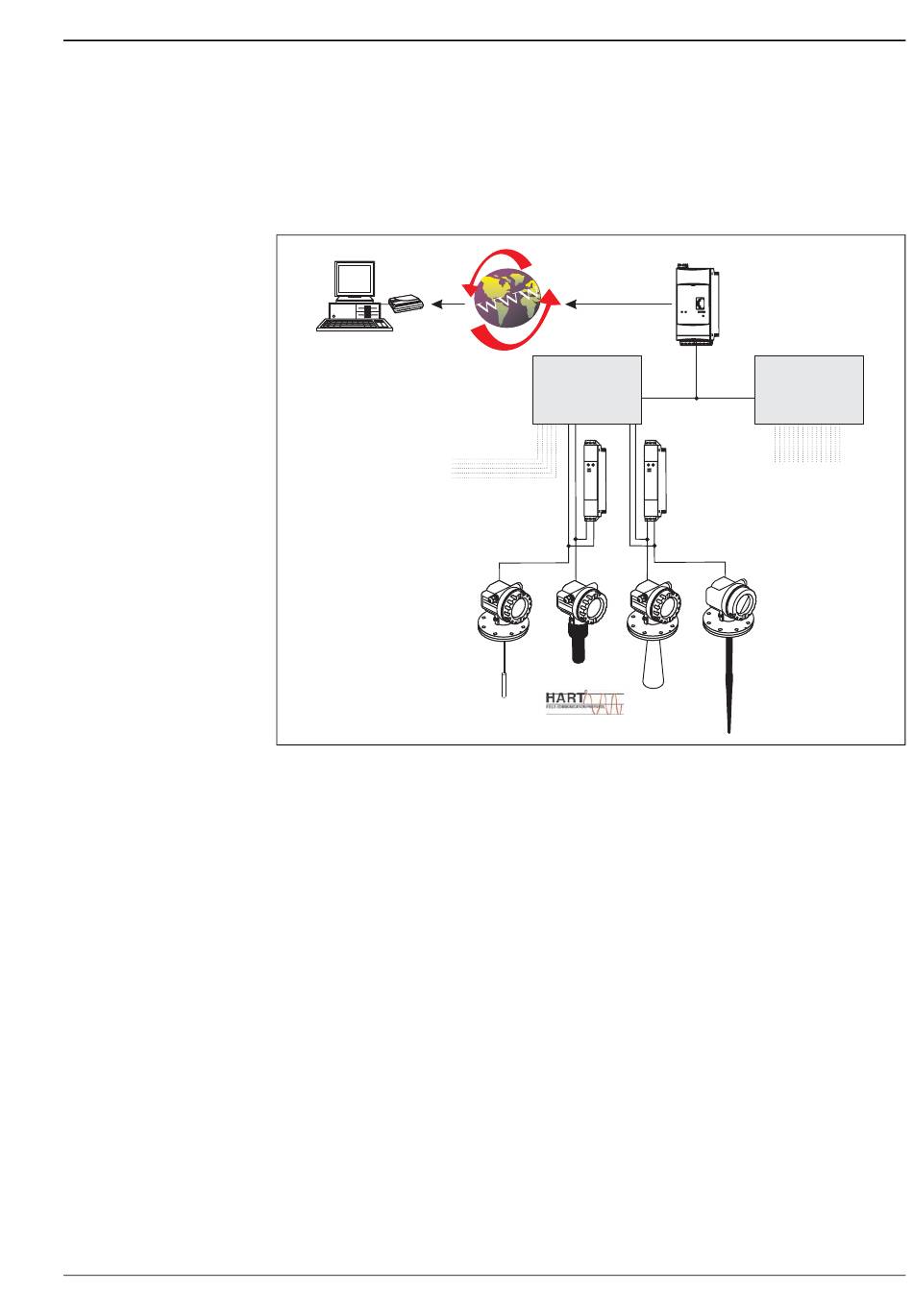

H A R T - M u l t i p l e x e r K o n f i g u r a t i o n
• M u l t i p l e x e r , z . B . K F D 2 - H M M - 1 6 v o n P e p p e r l + F u c h s
• B i s z u 3 0 G e r ä t ( 2 x 1 5 ) a n s c h l i e ß b a r .
• N a c h t r ä g l i c h e r A n s c h l u s s a n v o r h a n d e n e I n s t a l l a t i o n m ö g l i c h .
H i n w e i s !
D e t a i l l i e r t e I n f o r m a t i o n e n z u m M u l t i p l e x e r f i n d e n S i e i n d e r B e t r i e b s a n l e i t u n g B A 2 6 8 F / 0 0 / d e .
Web-Browser
Fieldgate Viewer
FieldCare
...
.
max. 15 Geräte
Analog
Ethernet
GSM
Master
HART-Multiplexer
RS-485 RS-485
z.B. Pepperl+Fuchs
KFD2-HMM-16
RNS221
Fieldgate
FXA520
Master
HART-Multiplexer
z.B. Pepperl+Fuchs
KFD2-HMM-16
max. 15 Geräte
